8140.43N.4300

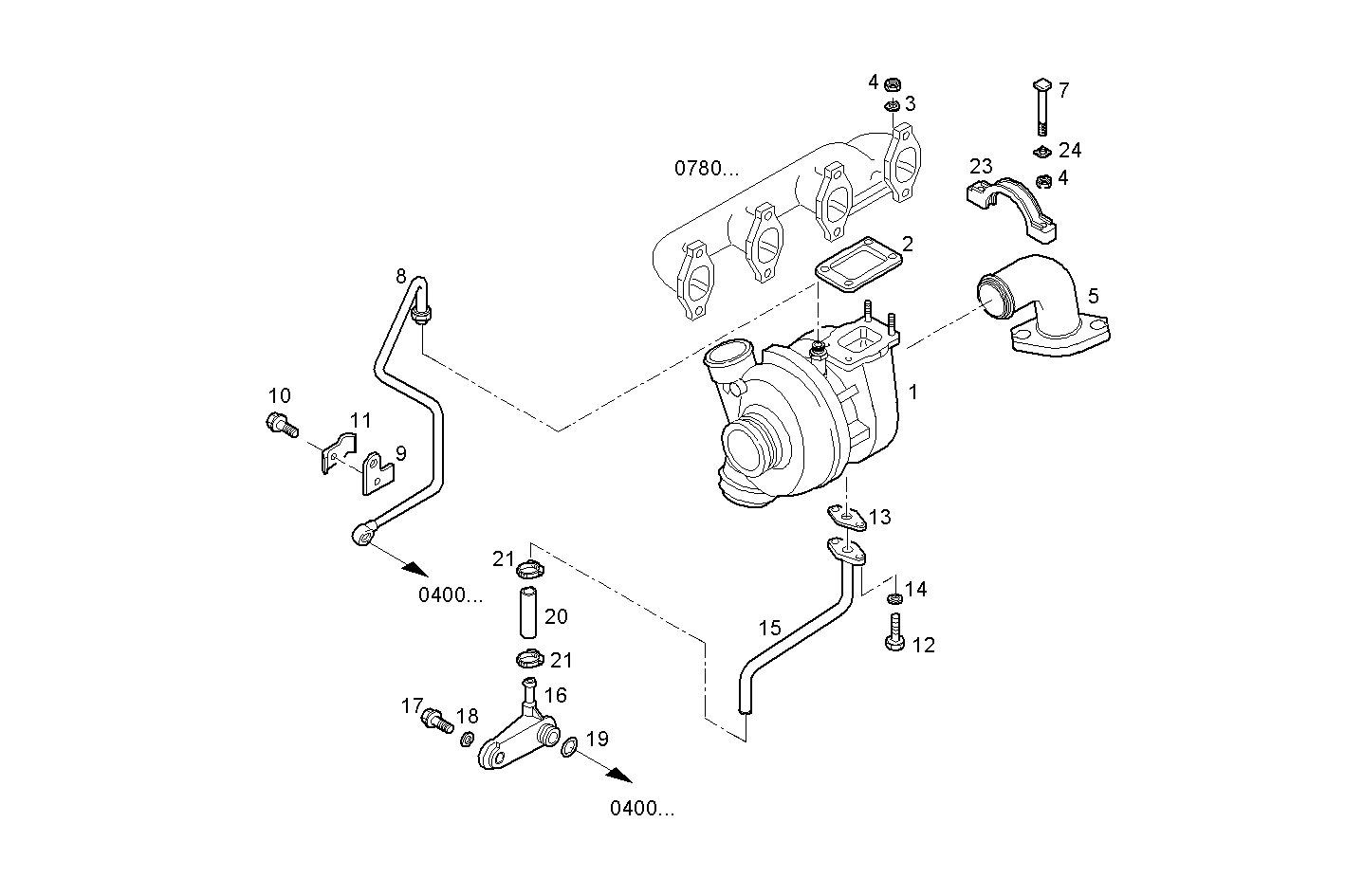

2400.256 TURBOCHARGER

Iveco/FPT TURBOCHARGER

Item Part number Description
1 500379251 VARIAB.GEOM.TURBINE
2 4834948 EXH. MANIFOLD GKT
3 17094914 WASHER 8x16
4 500322677 HEXAGON NUT M8
5 500377678 AIR PIPE/DUCT
7 500378050 SCREW M8X60 MM [UP TO # 215574]
8 500377677 OIL LINE
9 500318425 RETAINER
10 16597925 HEXAGON BOLT M8X14 MM
11 98487328 FASTENING BRACKET
12 18137825 HEXAGON BOLT M6X16
13 500370706 FLAT ENGINE GASKET
14 17088474 WASHER Ø6X12 MM
15 500344910 OIL LINE
16 98499352 FLANGED SOCKET
17 16288424 HEXAGON BOLT M10X1,25X25 MM
18 17097124 WASHER 10x21
19 14462881 O-RING SP=3,53 MM
20 500313648 RUBBER SLEEVE Ø12 MM
21 18088292 CLIP Ø12/20 MM
23 500377680 HALF-RING [UP TO # 215574]
24 500378052 WASHER [UP TO # 215574]
25 504120931 CLIP
