8140.43P.3941

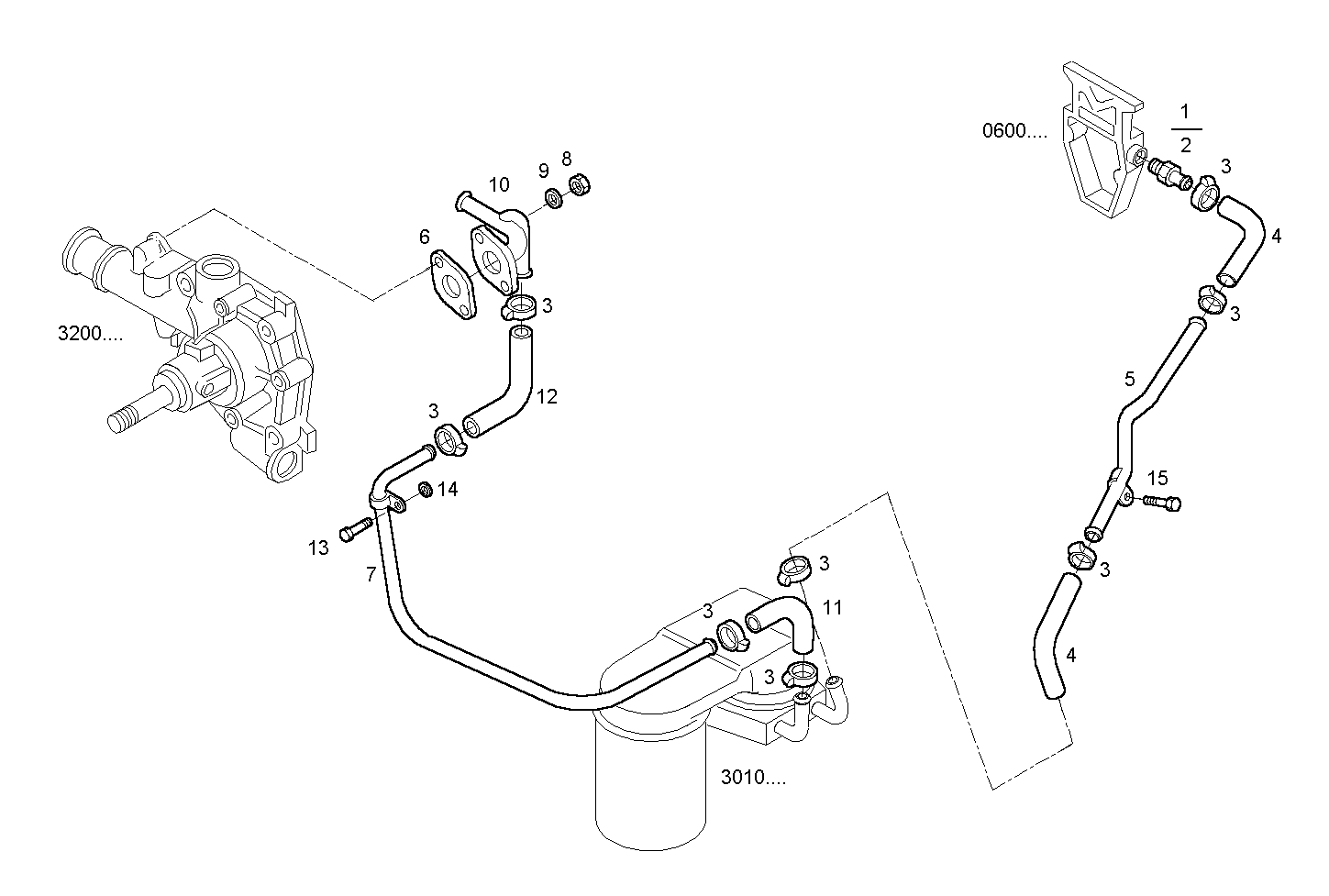

3210.197 WATER LINES
Item | Part number | Description |
---|---|---|
1 | 98433822 | CONNECTION PIPE |
2 | 99447076 | CONNECTION PIPE |
3 | 18088392 | CLIP Ø16/25 MM |
4 | 98433754 | RUBBER SLEEVE |
5 | 500332068 | WATER PIPE |
6 | 98430478 | FLAT ENGINE GASKET SP=1,6 MM |
7 | 98433796 | WATER PIPE |
8 | 17037931 | HEXAGON NUT M8X1,25 |
9 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
10 | 98433830 | WATER PIPE |
11 | 99443116 | RUBBER SLEEVE |
12 | 500361357 | WATER HOSE |
13 | 16605534 | HEXAGON BOLT M8X20 MM (10.9) |
14 | 7303601 | SPACING BAR SP=10,00 MM |
15 | 16597924 | HEXAGON BOLT M8X14 MM |
