8140.43P.3941

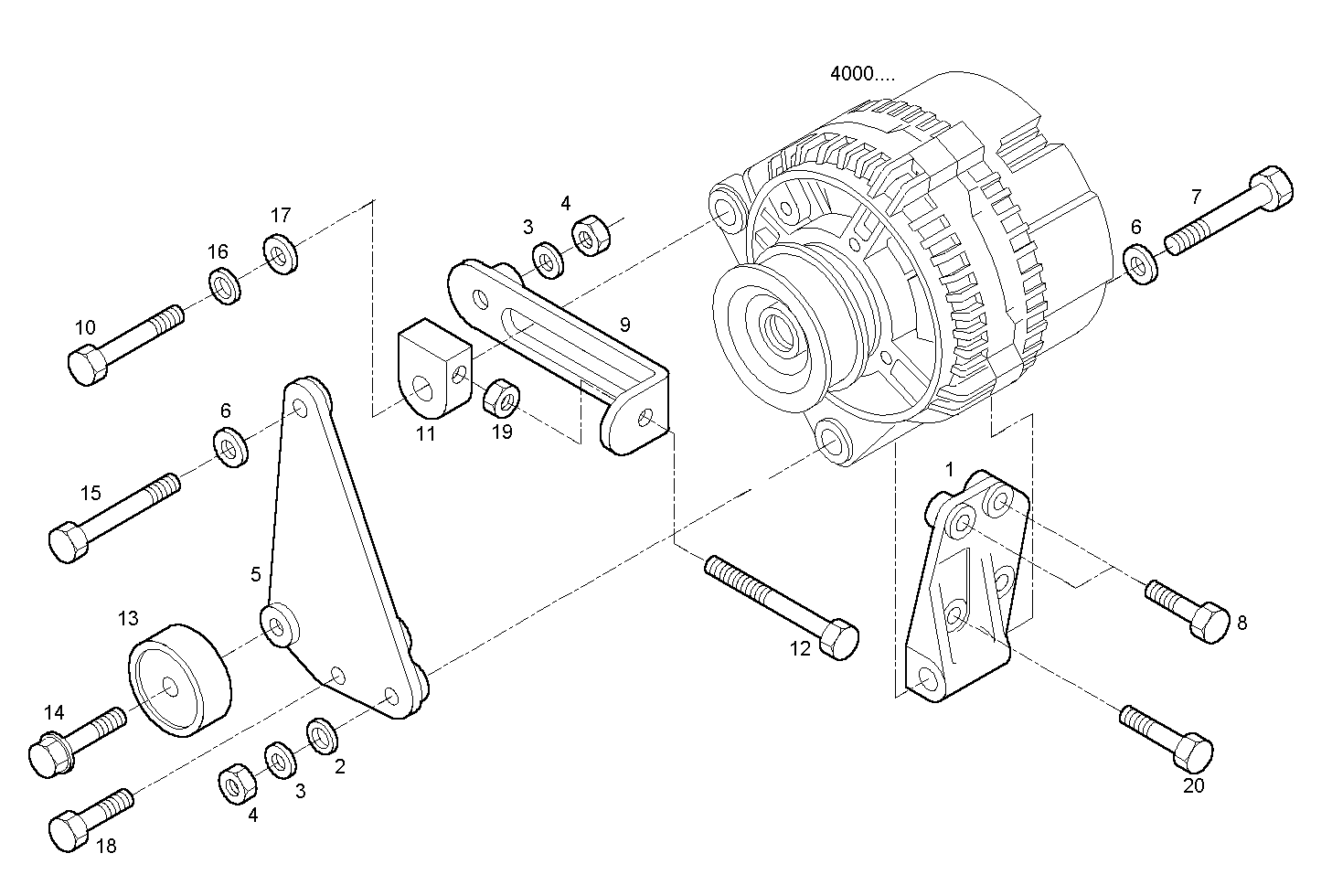

4010.099 MOUNT

Iveco/FPT MOUNT

Item Part number Description
1 500357890 GENERATOR SUPPORT
2 4726707 WASHER SP=2 MM
3 17091174 SPRING WASHER Ø12X24 MM
4 17038631 HEXAGON NUT M12X1,25
5 500358390 FASTENING BRACKET
6 17097324 WASHER Ø12X24 MM
7 15542224 SCREW M12X160 MM
8 500339962 HEXAGON BOLT M8X170 MM
9 99460547 BELT TENSIONER ASSY
10 16608324 HEXAGON BOLT M10X1,5X60 MM
11 98430360 DOWEL
12 15214524 HEXAGON BOLT M8X100 MM
13 98448218 DRIVE BEARING
14 16707134 SOCKET-HEAD SCREW M8X20 MM
15 15541824 SCREW M12X1,25X120 MM
16 17090174 SPRING WASHER Ø10X20 MM
17 17097124 WASHER 10x21
18 16289224 HEXAGON BOLT M10X1,25X65 MM
19 17037931 HEXAGON NUT M8X1,25
20 99481696 HEXAGON BOLT M12X177 MM
