8140.43P.3945

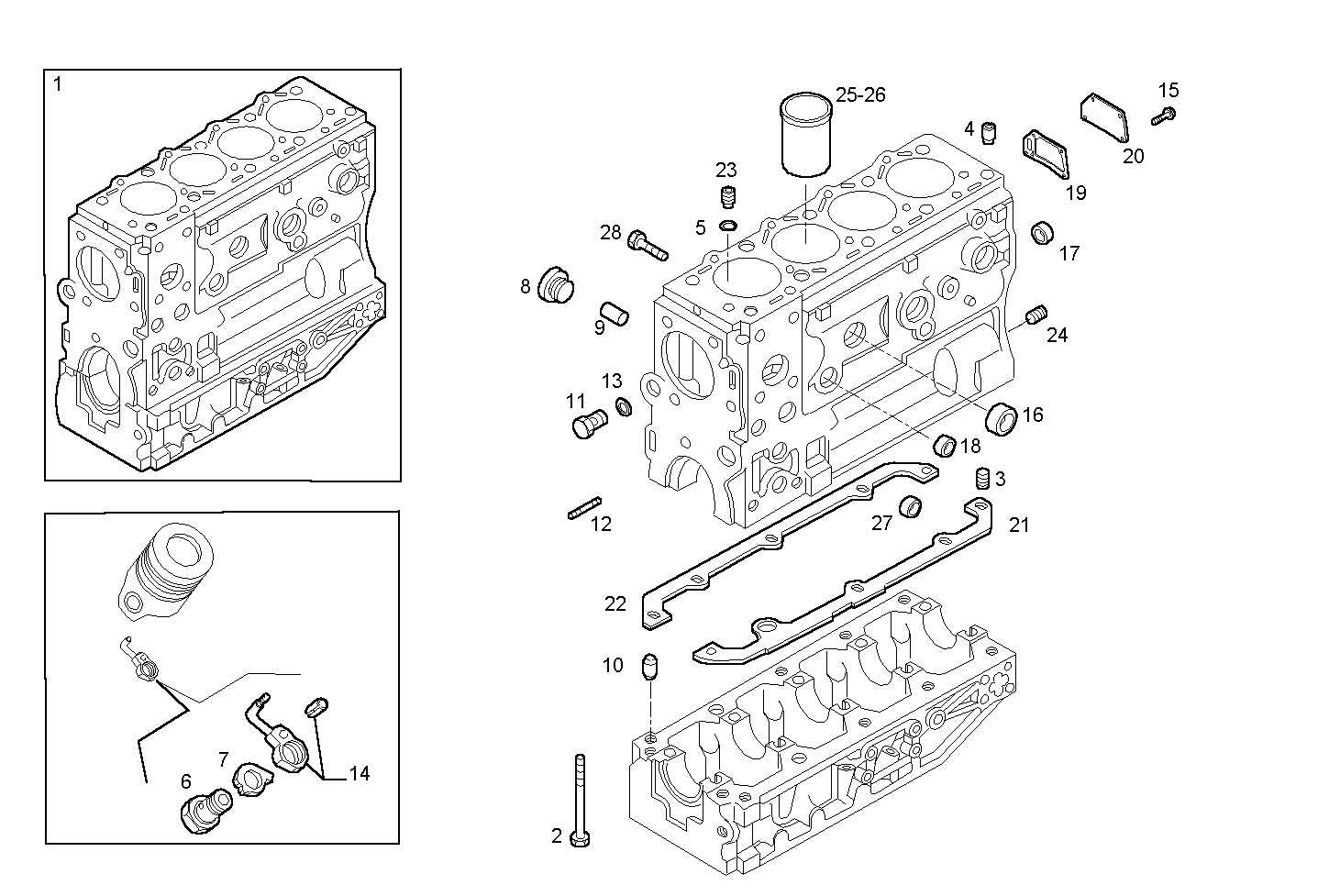

0400.156 CRANKCASE

Iveco/FPT CRANKCASE

Item Part number Description
1 99477104 CRANKCASE ASSY
2 4792169 SCREW
3 4724790 DOWEL PIN
4 98418754 DOWEL PIN
5 17277981 O-RING 1,78x9,25
6 7302421 SCREW CONNECTOR
7 7302007 STOP PLATE
8 10269601 THREADED PLUG M16X1,5
9 98405182 DOWEL PIN Ø11 MM
10 4279387 CENTERING RING
11 7303457 THREADED PLUG
12 7301674 STUD
13 16508360 WASHER 18x22x1,5
14 504032242 OIL NOZZLE
15 18138324 CYLIND-HEAD SCREW M8X1,25X16 MM
16 14282870 LOCK PLUG Ø40 MM
17 7301976 PLUG Ø16 MM
18 14328901 LOCK PLUG Ø25 MM
19 500329970 FLAT ENGINE GASKET SP=0,4 MM
20 98471295 COVER [from 2122618]
21 99432807 FLAT ENGINE GASKET LEFT [from 2122618]
22 99432808 FLAT ENGINE GASKET RIGHT [from 2122618]
23 98418753 DOWEL PIN [from 1533081]
24 7300019 DOWEL PIN
25 99435938 CYLINDER LINER STD.
26 99443784 CYLINDERLINER +0.2
27 14329001 LOCK PLUG Ø28 MM
28 500324832 SOCKET-HEAD SCREW
