8140.43P.3945

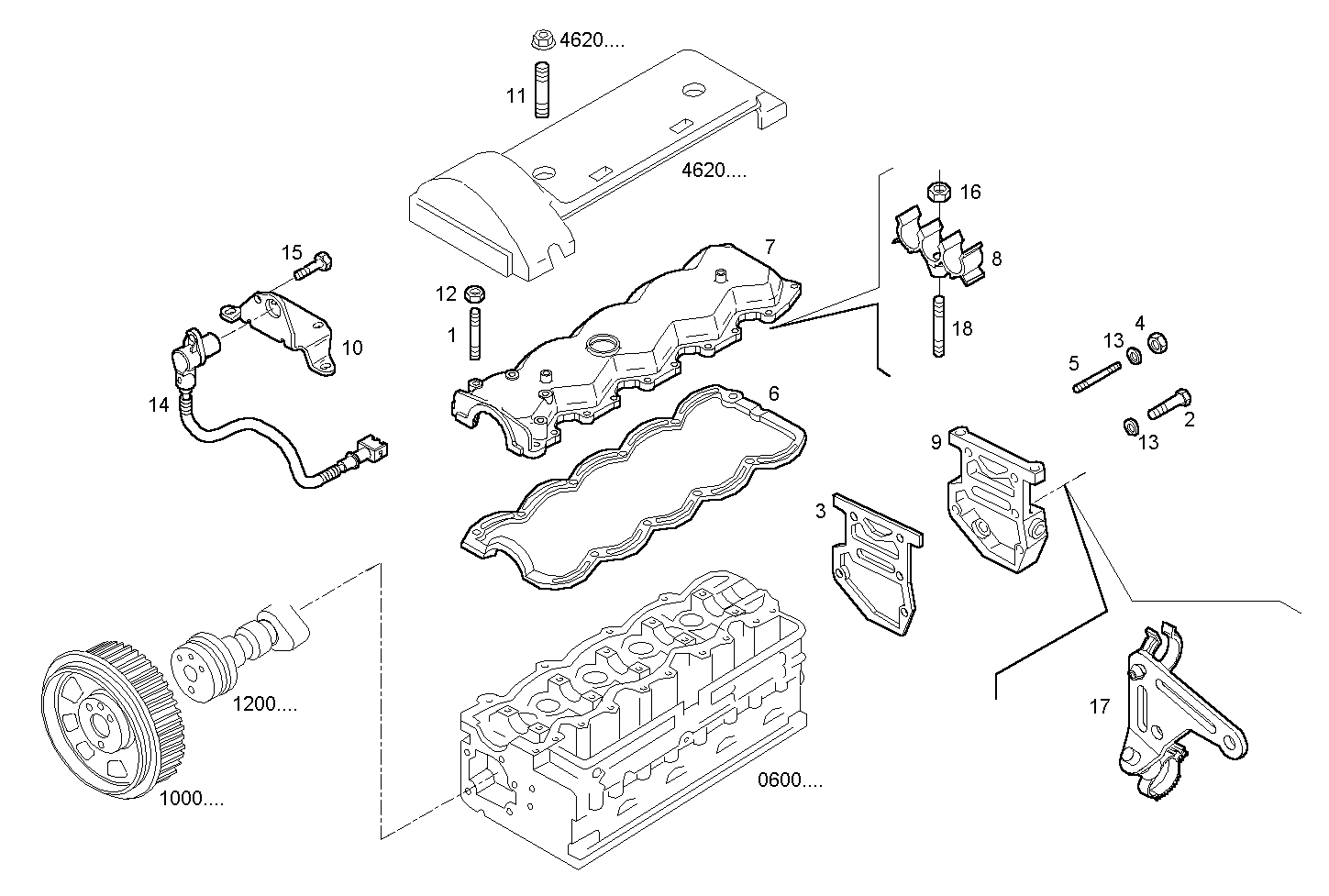

0630.007 CYL. HEAD COVERS

Iveco/FPT CYL. HEAD COVERS

Item Part number Description
1 17364724 STUD M6X15X25 MM
2 16605624 HEXAGON BOLT M8X25 MM (8.8)
3 500376326 FLAT ENGINE GASKET
4 17037931 HEXAGON NUT M8X1,25
5 16729724 STUD M8X40 MM
6 500388381 HEAD COVER GASKET
7 99462587 CYL. HEAD COVER
8 500375126 FASTENING BRACKET
9 500319459 COVER REAR CYLINDER HEAD
10 500324328 RETAINER
11 16727624 STUD M6X16 MM
12 17152721 NUT M6
13 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
14 500343018 ELECTRON.TRANSMITT
15 16603624 HEXAGON BOLT M6X16 MM (8.8)
16 17044621 HEXAGON NUT M6
17 500334777 FASTENING BRACKET
18 500309888 STUD
