8140.43P.3945

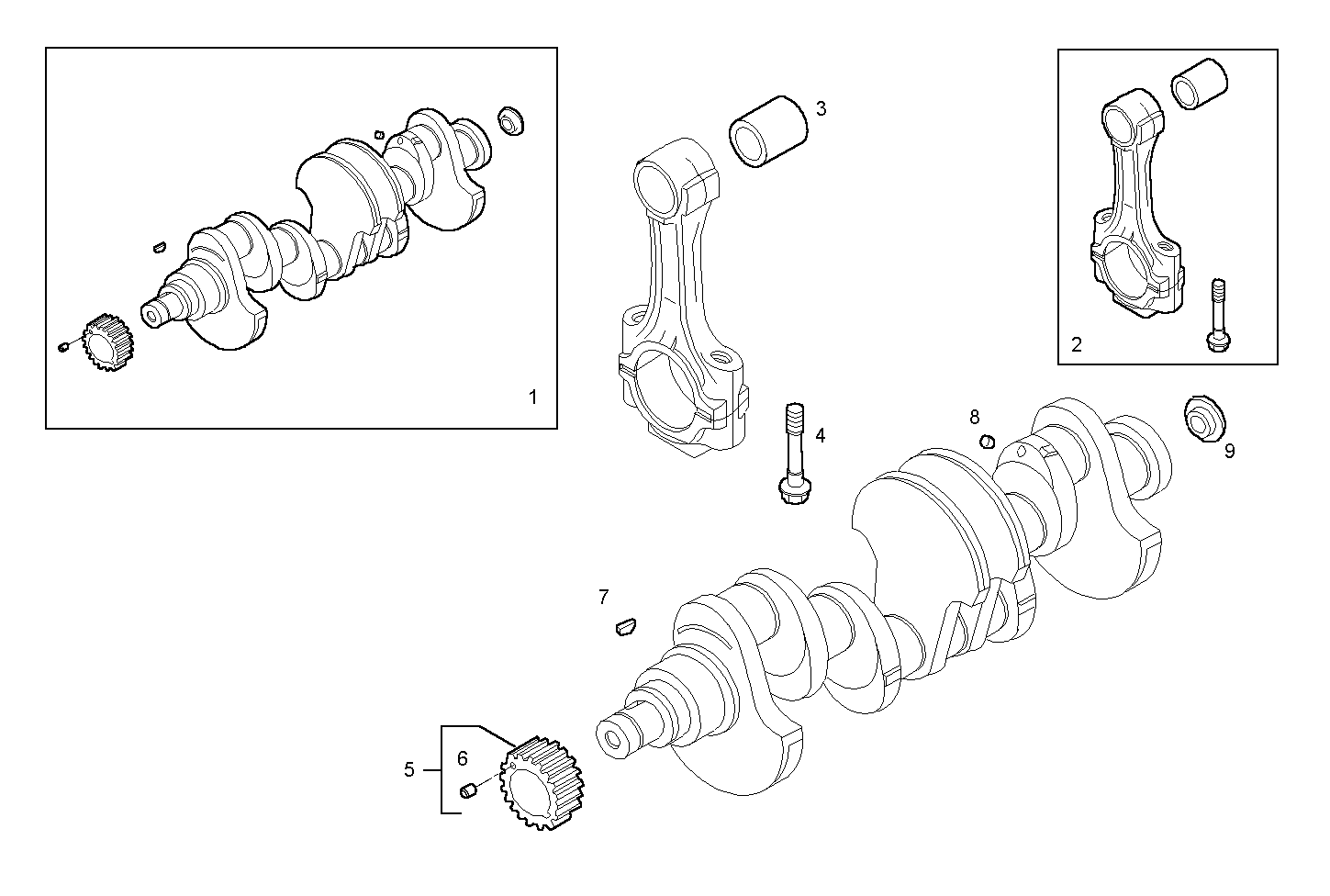

0800.081 CRANK SHAFT - CONNECTING RODS

Iveco/FPT CRANK SHAFT - CONNECTING RODS

Item Part number Description
1 500347274 CRANK SHAFT ASSY
2 500352497 CONN.ROD ASSY. ASSY [FROM # 2572280]
3 500329617 BIG-END BUSH [FROM # 2572280]
4 98460577 BIG-END BOLT
5 98419310 GEAR ASSY
6 10332010 PARALLEL PIN
7 4655844 KEY
8 14328101 LOCK PLUG Ø8 MM
9 98428742 CENTERING RING
