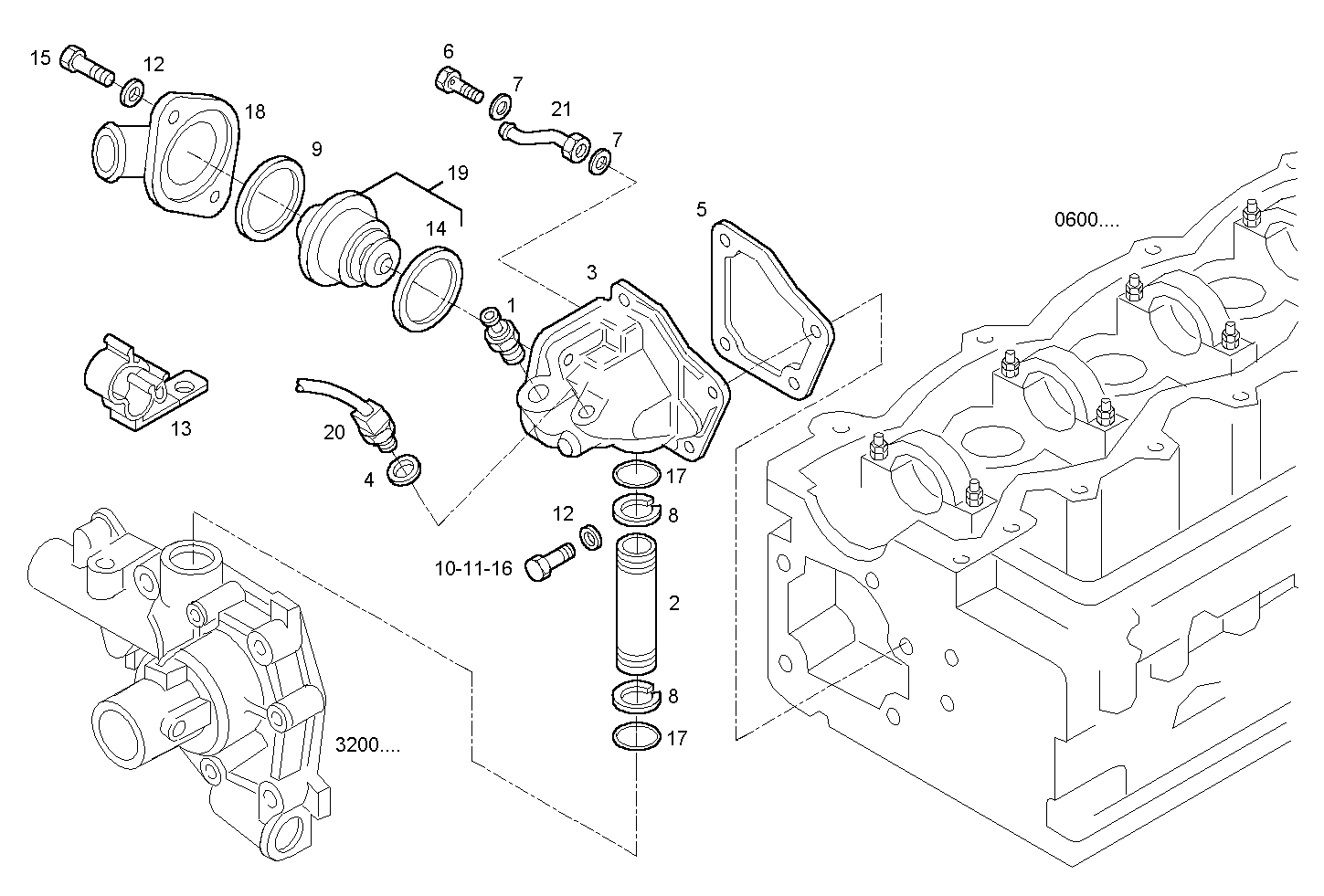

| Item |
Part number |
Description |
|
1 |
500357894 |
TRANSMITTER |
|
2 |
99443808 |
CONNECTION PIPE |
|
3 |
500345690 |
THERMOSTAT BODY |
|
4 |
10298460 |
SEAL GASKET Ø12X18 MM SP=1,5 MM |
|
5 |
98421297 |
FLAT ENGINE GASKET SP=0,8 MM |
|
6 |
11903811 |
SCREW CONNECTOR M10X1,25 |
|
7 |
10260160 |
SEAL GASKET Ø10X14 MM SP=1 MM |
|
8 |
16866173 |
CIRCLIP Ø19,5 MM |
|
9 |
14455281 |
O-RING SP=1,78 MM |
|
10 |
16592324 |
HEXAGON BOLT M8X60 MM |
|
11 |
16673934 |
HEXAGON BOLT M8X35 MM |
|
12 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
13 |
99453771 |
RETAINER |
|
14 |
4823212 |
RUBBER GASKET |
|
15 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
16 |
16673734 |
HEXAGON BOLT M8X25 MM |
|
17 |
17278481 |
O-RING Ø17,17 MM SP=1,78 MM |
|
18 |
98434023 |
THERM.BODY COVER |
|
19 |
4826602 |
THERMOSTAT ASSY |
|
20 |
99455420 |
TEMP. TRANSMITTER |
|
21 |
7302944 |
ELBOW COUPLING |
