8140.43P.3945

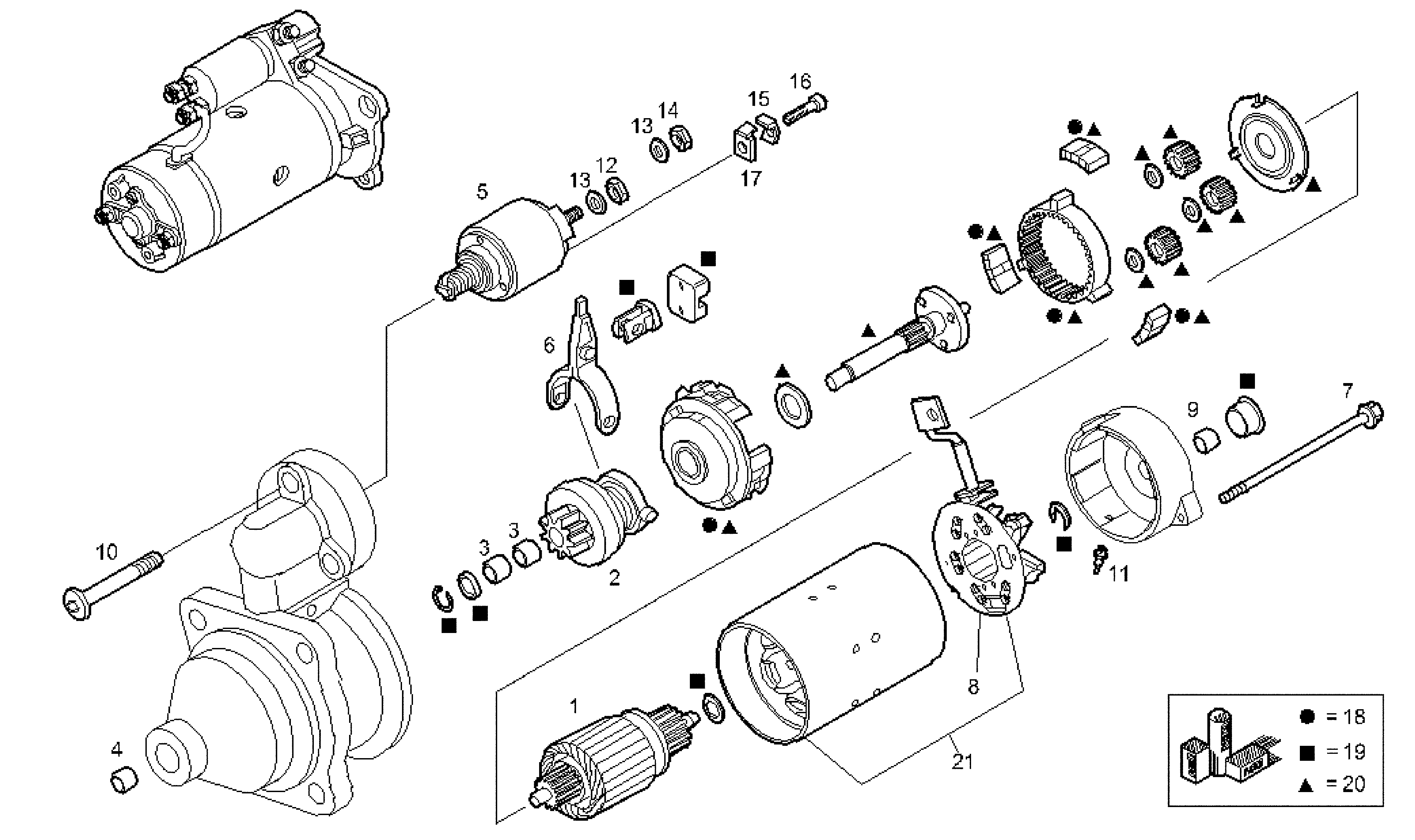

8600.145/02 ACCESSORIES
| Item |
Part number |
Description |
|
1 |
42538077 |
STARTER ARMATURE |
|
2 |
9971882 |
PINION BOSCH |
|
3 |
42538463 |
BUSH |
|
4 |
8190143 |
BUSH ASSY |
|
5 |
8093635 |
SOLENOID BOSCH |
|
6 |
42537069 |
CLEVIS |
|
7 |
42537076 |
SCREW |
|
8 |
8093634 |
BRUSH BOSCH |
|
9 |
42535275 |
BUSH |
|
10 |
42537070 |
SCREW |
|
11 |
42538466 |
BUSH |
|
12 |
1306937 |
NUT |
|
13 |
42534012 |
SPRING LOCKWASHER |
|
14 |
42537822 |
NUT |
|
15 |
2985062 |
STOP PLATE |
|
16 |
1105500 |
CYLIND-HEAD SCREW |
|
17 |
42538461 |
LOCKING PLATE |
|
18 |
42537084 |
KIT-STARTER |
|
19 |
42537082 |
KIT-STARTER |
|
20 |
42537080 |
STARTER PINION ASSY |
|
21 |
42538464 |
BRUSH HOLDER |
