8140C00.00A005

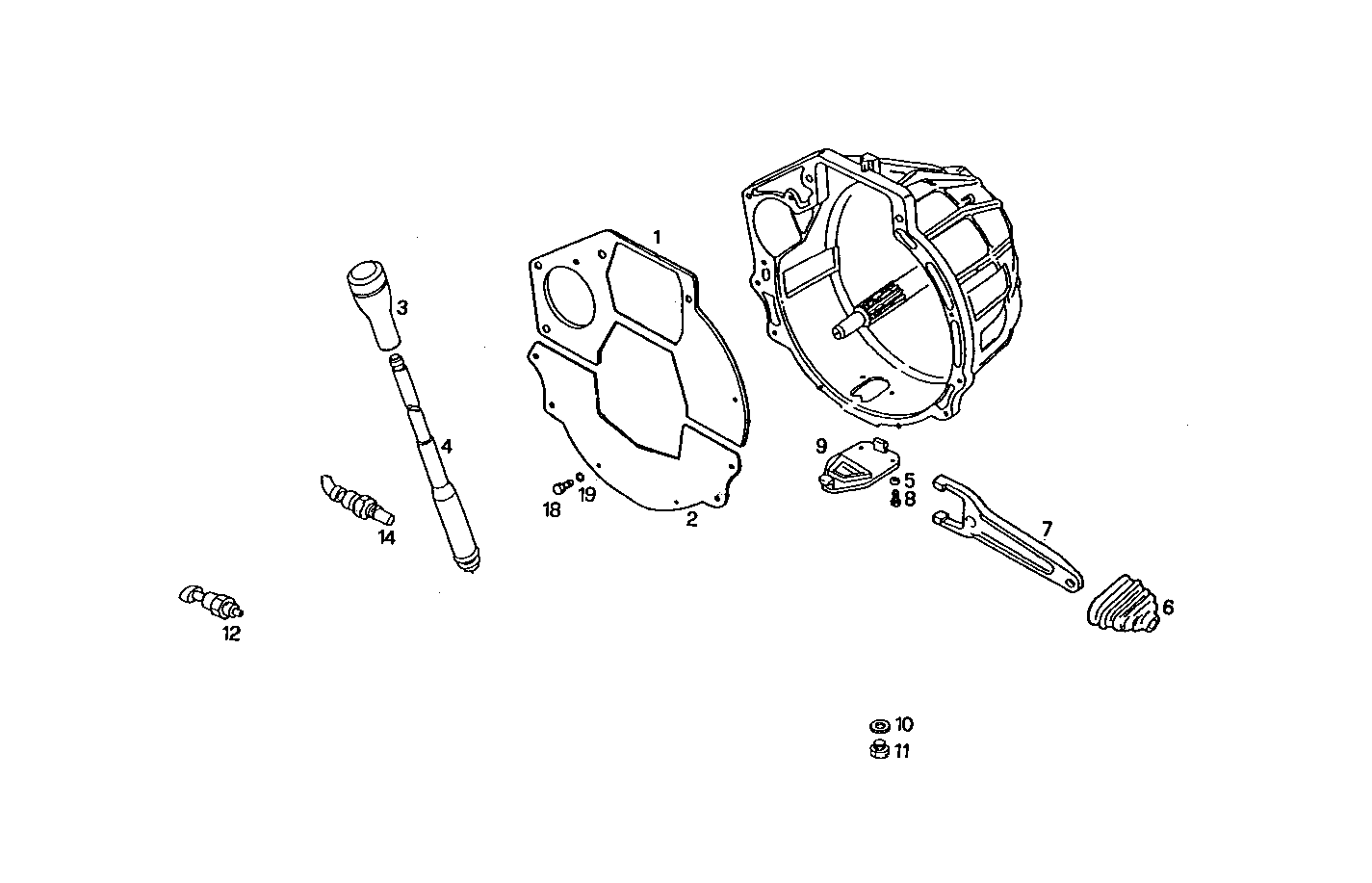

A27510900/05 TRANSMISSION GROUP - Left hand drive 2826.5
| Item | Part number | Description |
|---|---|---|
| 1 | 93801370 | PROTECTION TOP |
| 2 | 8867988 | PROTECTION LOWER |
| 3 | 8576824 | LEVER KNOB |
| 4 | 8868254 | ROD |
| 5 | 17088474 | WASHER Ø6X12 MM |
| 6 | 42116732 | PROTECTIVE HOOD |
| 7 | 42116731 | LEVER |
| 8 | 16603524 | SCREW M6X12 MM (8.8) |
| 9 | 98441226 | COVER |
| 10 | 98429280 | SEAL GASKET Ø20X26 MM SP=1,5 MM |
| 11 | 8007695 | PLUG M10X1 |
| 12 | 4846676 | REAR LIGHT SWITCH |
| 14 | 4834987 | TRANSMITTER |
