8140C00.00A006

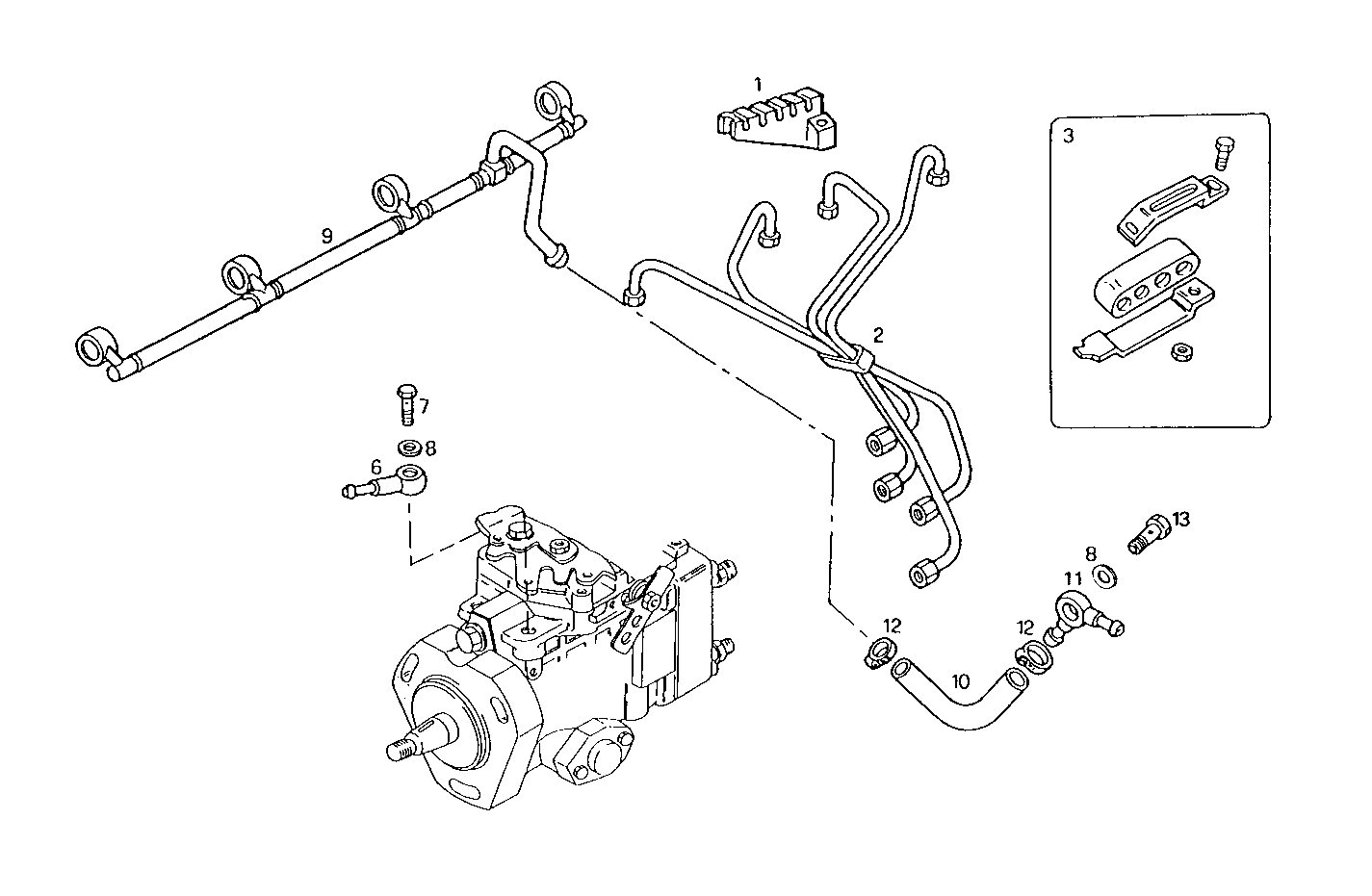

2020.092 INJECTION PIPES
Item | Part number | Description |
---|---|---|
1 | 4714424 | RUBBER PAD |
2 | 98416942 | INJECTION LINE SET ASSY |
3 | 99431258 | FASTENING BRACKET DAMPERS |
6 | 98434018 | THREADED UNION |
7 | 4864082 | BANJO BOLT M12X1,5X25 MM |
8 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
9 | 4720744 | FUEL LINE ASSY |
10 | 17724587 | RUBBER HOSE Ø7,5X14,5 MM |
11 | 99467109 | FUEL LINE ASSY |
12 | 18088192 | CLIP m10-16 |
