8140C00.00A006

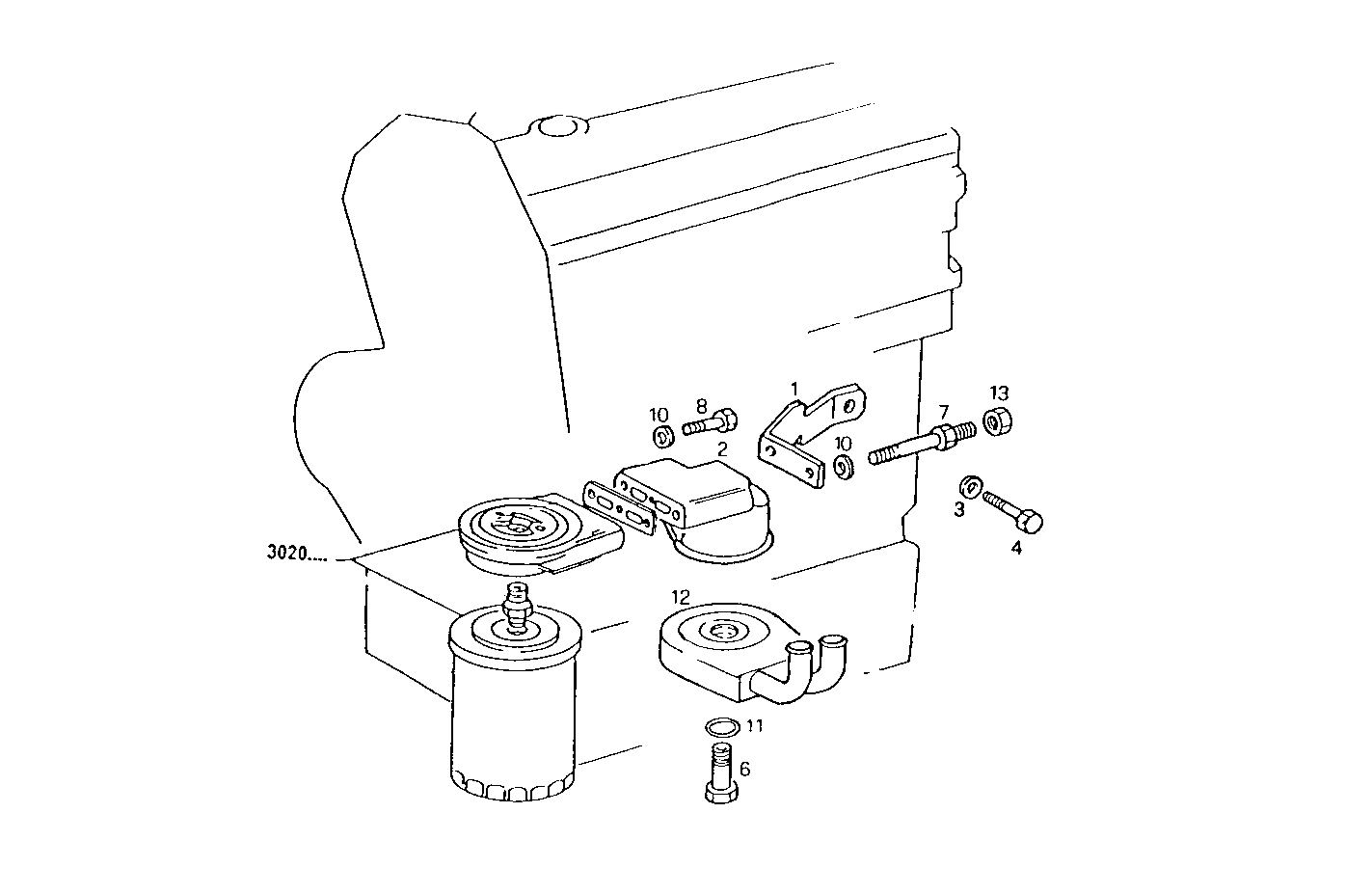

3100.066 OIL - WATER HEAT EXCHANGER
| Item | Part number | Description |
|---|---|---|
| 1 | 500300395 | RETAINER |
| 2 | 98496655 | SUPPORT |
| 3 | 17090174 | SPRING WASHER Ø10X20 MM |
| 4 | 15970524 | HEXAGON BOLT M10X1,25X20 |
| 6 | 98480769 | PIPE SOCKET |
| 7 | 4836699 | THREADED PIN |
| 8 | 16606024 | SCREW M8X45 MM |
| 10 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 11 | 98429280 | SEAL GASKET Ø20X26 MM SP=1,5 MM |
| 12 | 98480768 | HEAT EXCHANGER |
| 13 | 17037931 | HEXAGON NUT M8X1,25 |
