8140SC00.20

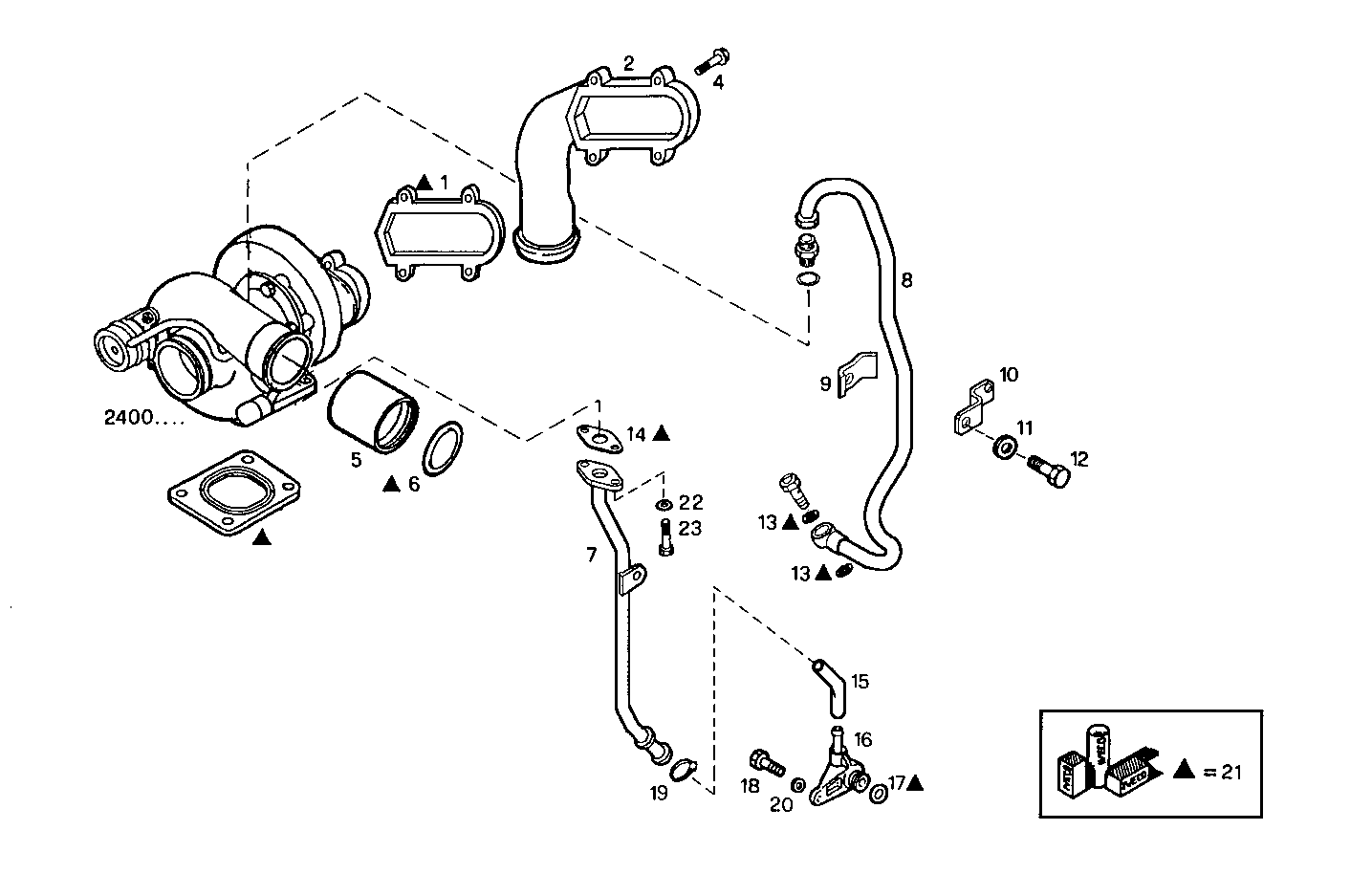

2420.123 SUPERCHARGING LINES

Iveco/FPT SUPERCHARGING LINES

Item Part number Description
1 98484659 FLAT ENGINE GASKET
2 99436004 AIR PIPE/DUCT L=680 MM
4 99441800 HEXAGON BOLT M8X1,25X38 MM
5 7302186 CONNECTOR SLEEVE
6 17289781 O-RING Ø47,22 MM SP=3,55 MM
7 99470360 OIL LINE
8 99443853 OIL LINE
9 98485520 FASTENING BRACKET
10 98485521 FASTENING BRACKET M6X20 MM
11 17094714 WASHER Ø6,4X12 MM
12 16603624 HEXAGON BOLT M6X16 MM (8.8)
13 4858608 SEAL GASKET dia.14x19,5x1,5
14 99436992 FLAT ENGINE GASKET
15 99470366 RUBBER SLEEVE L=680 MM
16 98499352 FLANGED SOCKET
17 14462881 O-RING SP=3,53 MM
18 16288424 HEXAGON BOLT M10X1,25X25 MM
19 98463346 CLIP Ø15-22 MM
20 17095104 WASHER Ø10X21X2 MM
21 99477121 KIT-SEAL.GASKETS ASSY
22 17088474 WASHER Ø6X12 MM
23 16585724 HEXAGON BOLT M6X16 MM
