8140SC00.60

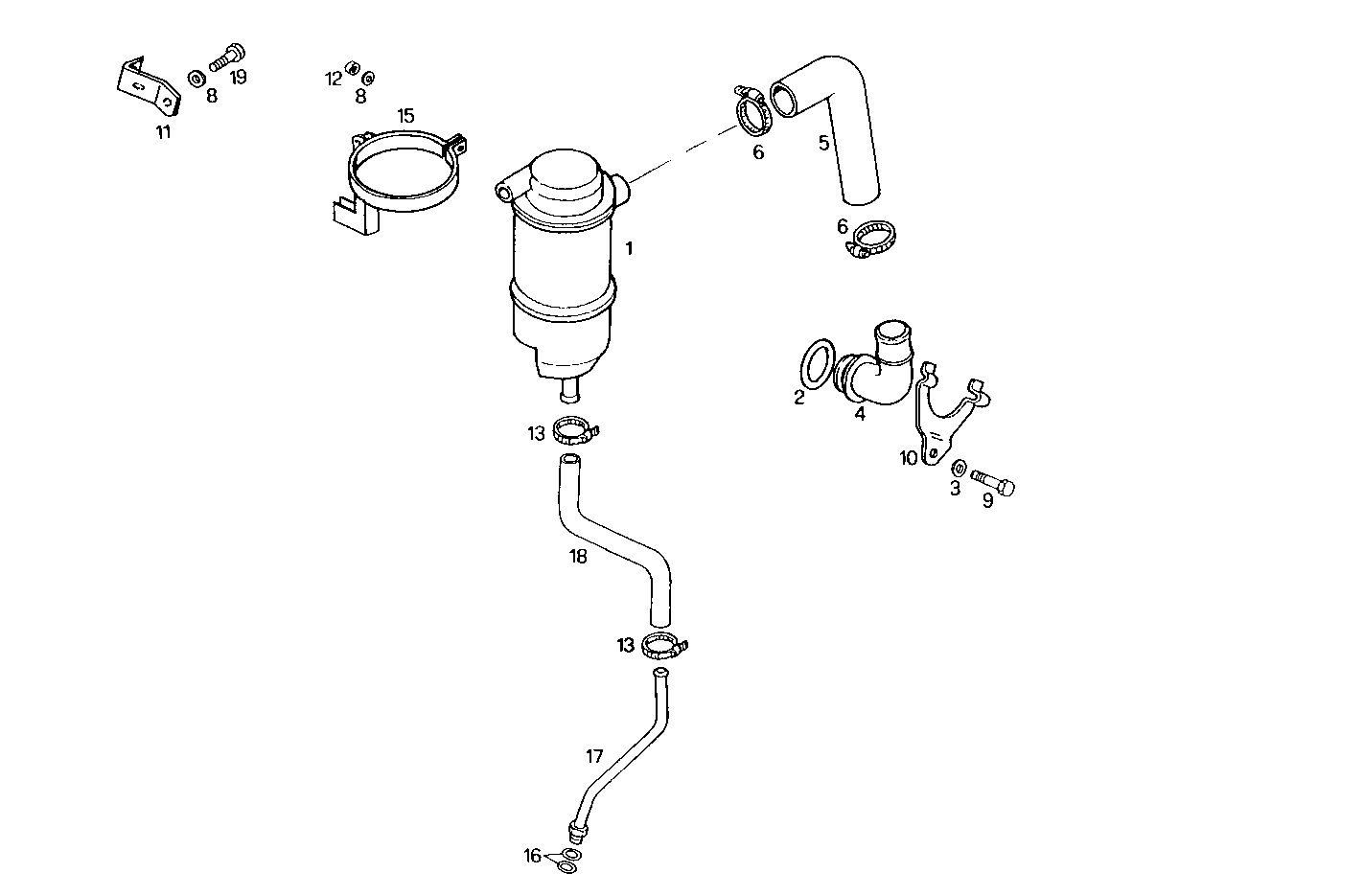

0450.133 ENGINE BREATHERS

Iveco/FPT ENGINE BREATHERS

Item Part number Description
1 7303441 BREATHER [up to 03-97]
2 17289681 O-RING Ø44 MM SP=3,53 MM
3 17094914 WASHER 8x16
4 99432377 BREATHER PIPE Ø50 MM [from 1848056]
5 98423608 RUBBER SLEEVE Ø37X30 MM
6 17764792 HOSE CLIP Ø32-50 MM
8 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
9 16605424 SCREW M8X16 MM (8.8)
10 99433312 LOCK/YOKE BUNDY [from 1848056]
11 98428828 RETAINER
12 17037931 HEXAGON NUT M8X1,25
13 18088392 CLIP Ø16/25 MM
15 98428827 RETAINER
16 17277981 O-RING 1,78x9,25
17 98414633 OIL LINE
18 500319931 RUBBER SLEEVE L=550 MM
19 16043324 HEXAGON BOLT M8X18 MM
