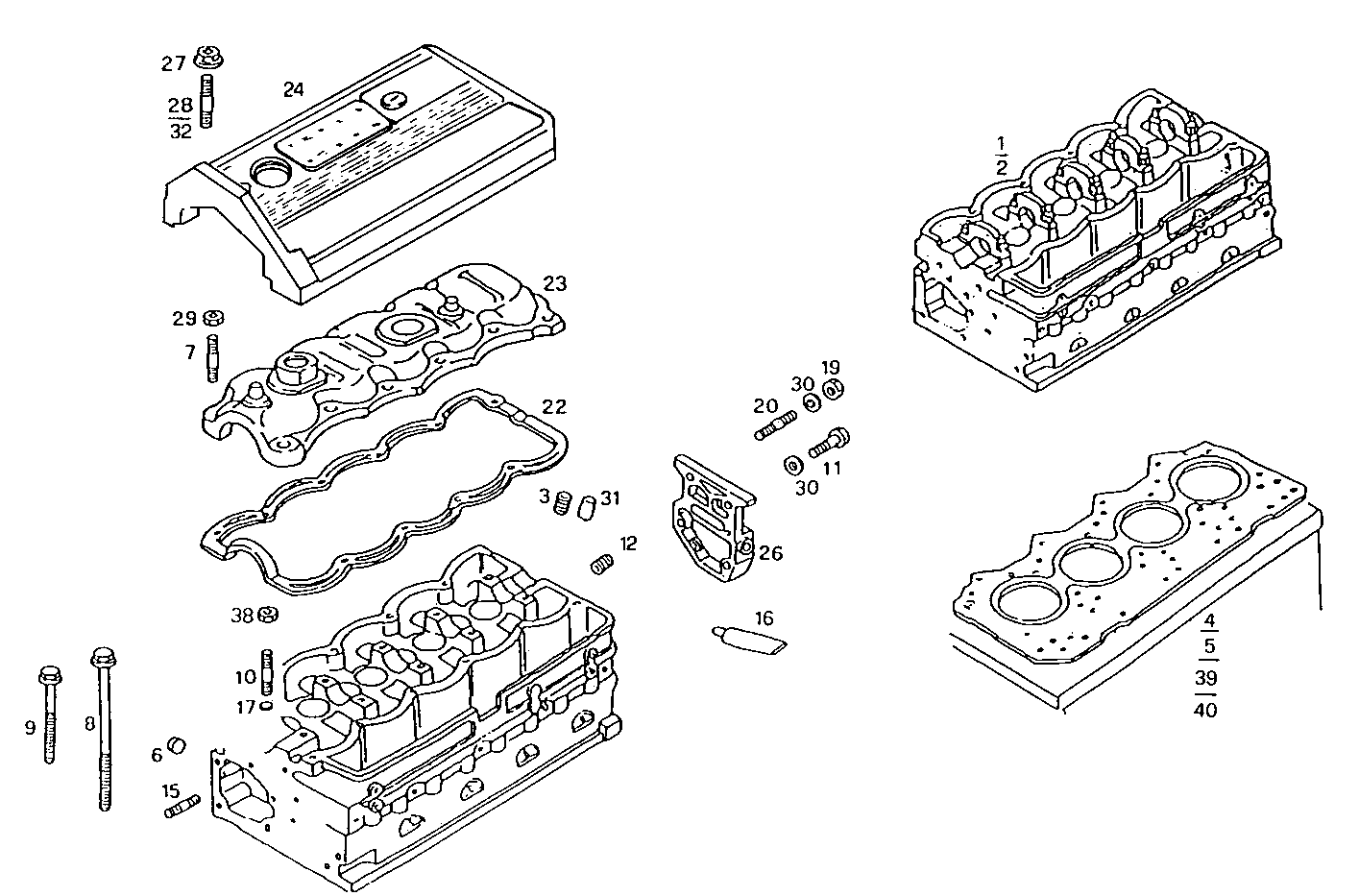

| Item |
Part number |
Description |
|
1 |
99443889 |
CYLINDER HEAD ASSY |
|
2 |
99443890 |
CYLINDER HEAD ASSY +0,2 MM |
|
3 |
4279430 |
THREADED BUSH M14X1,5X20 MM |
|
4 |
99432354 |
CYL.HEAD GASKET SP=1,2 MM |
|
5 |
99432353 |
CYL.HEAD GASKET SP=1,3 MM |
|
6 |
14281970 |
LOCK PLUG Ø12 MM |
|
7 |
17364824 |
STUD M6X30 MM |
|
8 |
4854648 |
CYL.HEAD STUD M12X1,25X163 MM |
|
9 |
4828150 |
CYL.HEAD STUD M12X1,25X119 MM |
|
10 |
13543924 |
STUD M8X16X45 MM |
|
11 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
12 |
14326001 |
THREADED PLUG M10X1,25 |
|
15 |
13540921 |
STUD M6X12X16 MM |
|
16 |
1905685 |
ADHESIVE/STICKER LOCTITE |
|
17 |
98466492 |
DOWEL PIN [from 1671414] |
|
19 |
17037931 |
HEXAGON NUT M8X1,25 |
|
20 |
16729724 |
STUD M8X40 MM |
|
22 |
7302293 |
HEAD COVER GASKET |
|
23 |
7302299 |
CYL. HEAD COVER BOTTOM [up to 1651849] |
|
24 |
7302302 |
CYL. HEAD COVER TOP |
|
26 |
500302236 |
COVER REAR CYLINDER HEAD [from 1834785] |
|
27 |
98439382 |
NUT |
|
28 |
16727624 |
STUD M6X16 MM |
|
29 |
17152721 |
NUT M6 |
|
30 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
31 |
4279663 |
DOWEL PIN |
|
32 |
11500021 |
STUD M6X9 MM |
|
38 |
99486342 |
HEXAGON NUT M8X1,25 |
|
39 |
99460983 |
CYL.HEAD GASKET SP=1,4 MM |
|
40 |
99458402 |
CYL.HEAD GASKET SP=1,50 MM |
