8140SC00.60

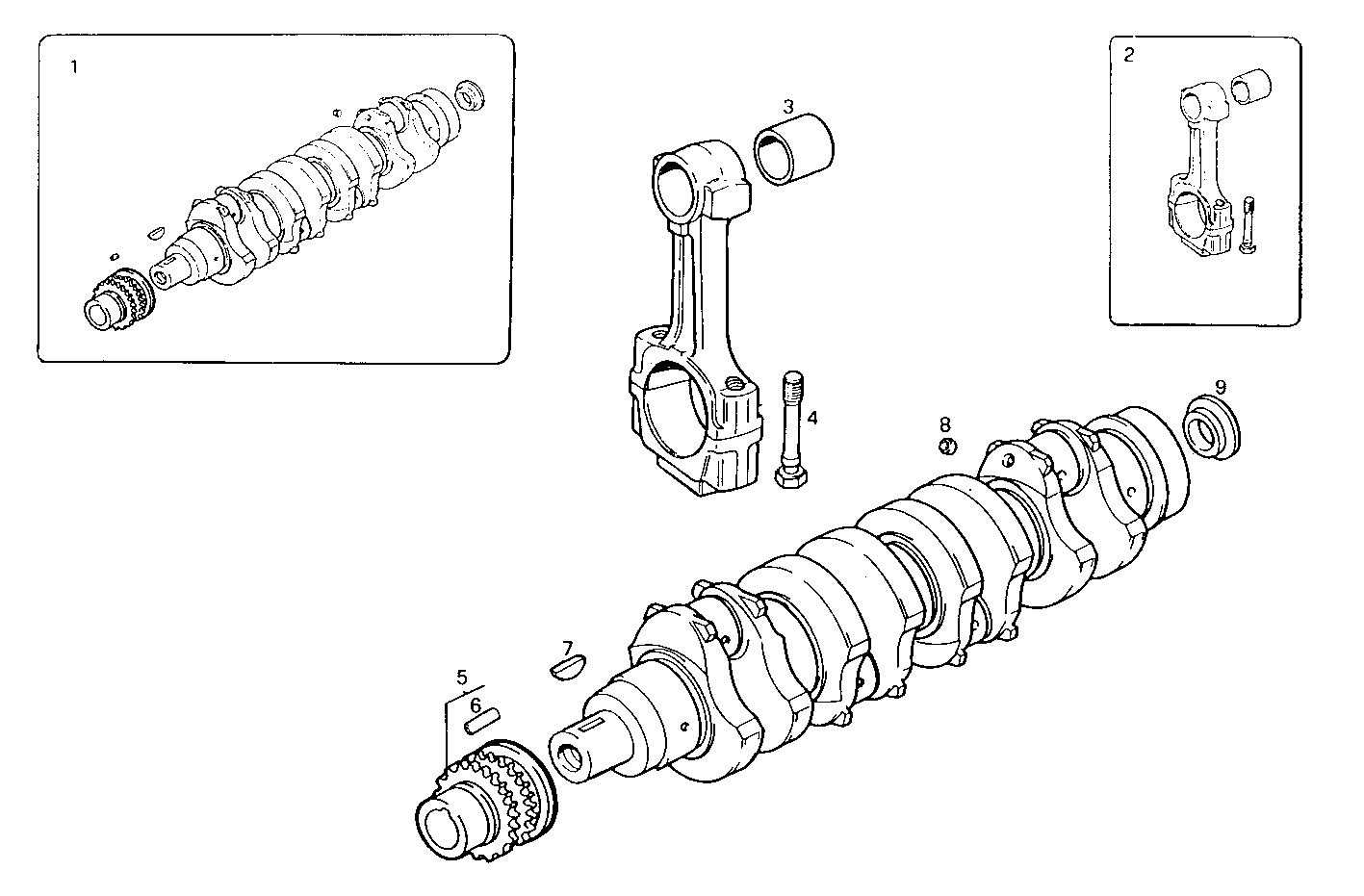

0800.076 CRANK SHAFT - CONNECTING RODS
| Item | Part number | Description |
|---|---|---|
| 1 | 99467536 | CRANK SHAFT ASSY |
| 2 | 7473171 | CONN.ROD ASSY. ASSY |
| 3 | 7302028 | BIG-END BUSH |
| 4 | 98460577 | BIG-END BOLT |
| 5 | 98420485 | CAMSHAFT PINION ASSY |
| 6 | 10332010 | PARALLEL PIN |
| 7 | 4655844 | KEY |
| 8 | 14328101 | LOCK PLUG Ø8 MM |
| 9 | 98426373 | CENTERING RING [from 1307401] |
