8140SC00.60

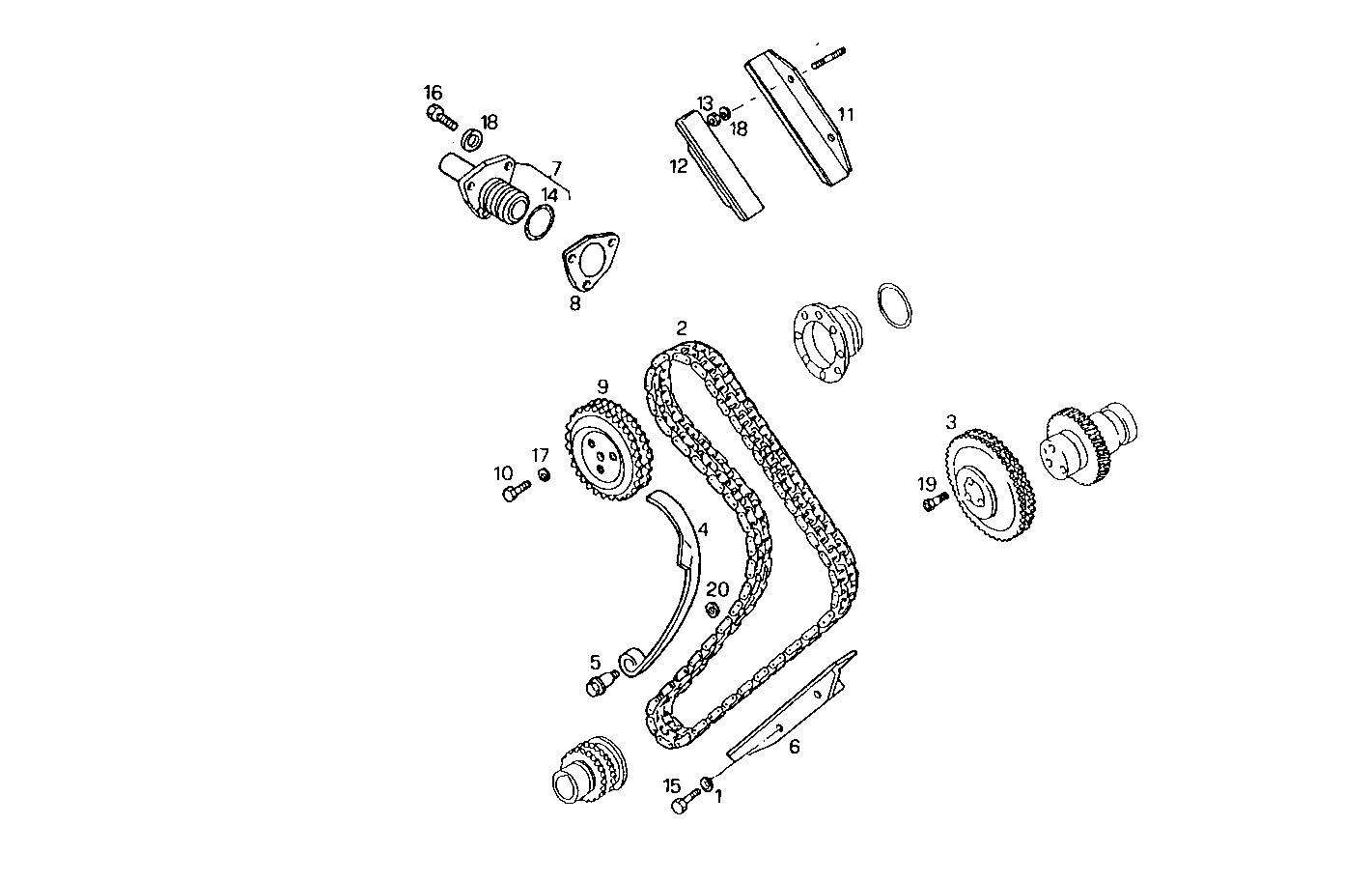

1000.086 GEAR DRIVE

Iveco/FPT GEAR DRIVE

Item Part number Description
1 4736331 WASHER
2 99457167 TIMING CHAIN
3 4838611 INJ.PUMP DRIV.GEA
4 99457143 SLIDING SHOE Ø56,52 MM SP=5,33 MM
5 7301034 PIN
6 7301039 SLIDING SHOE BOTTOM
7 4859435 BELT TENSIONER ASSY
8 98421301 FLAT ENGINE GASKET SP=0,8 MM
9 99442762 TIMING INTERM.GEA
10 16605624 HEXAGON BOLT M8X25 MM (8.8)
11 7302381 SLIDING SHOE OUTER TOP
12 7302382 SLIDING SHOE INNER TOP
13 17037821 HEXAGON NUT M6X1
14 17278981 O-RING Ø25,12 MM SP=1,78 MM
15 16603724 HEXAGON BOLT M6X20 MM (8.8)
16 16603824 SCREW M6X25
17 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
18 17088474 WASHER Ø6X12 MM
19 14337521 LOCKING SCREW M12X1,25X30 MM
20 12647001 WASHER Ø8X25 MM
