8140SC00.60

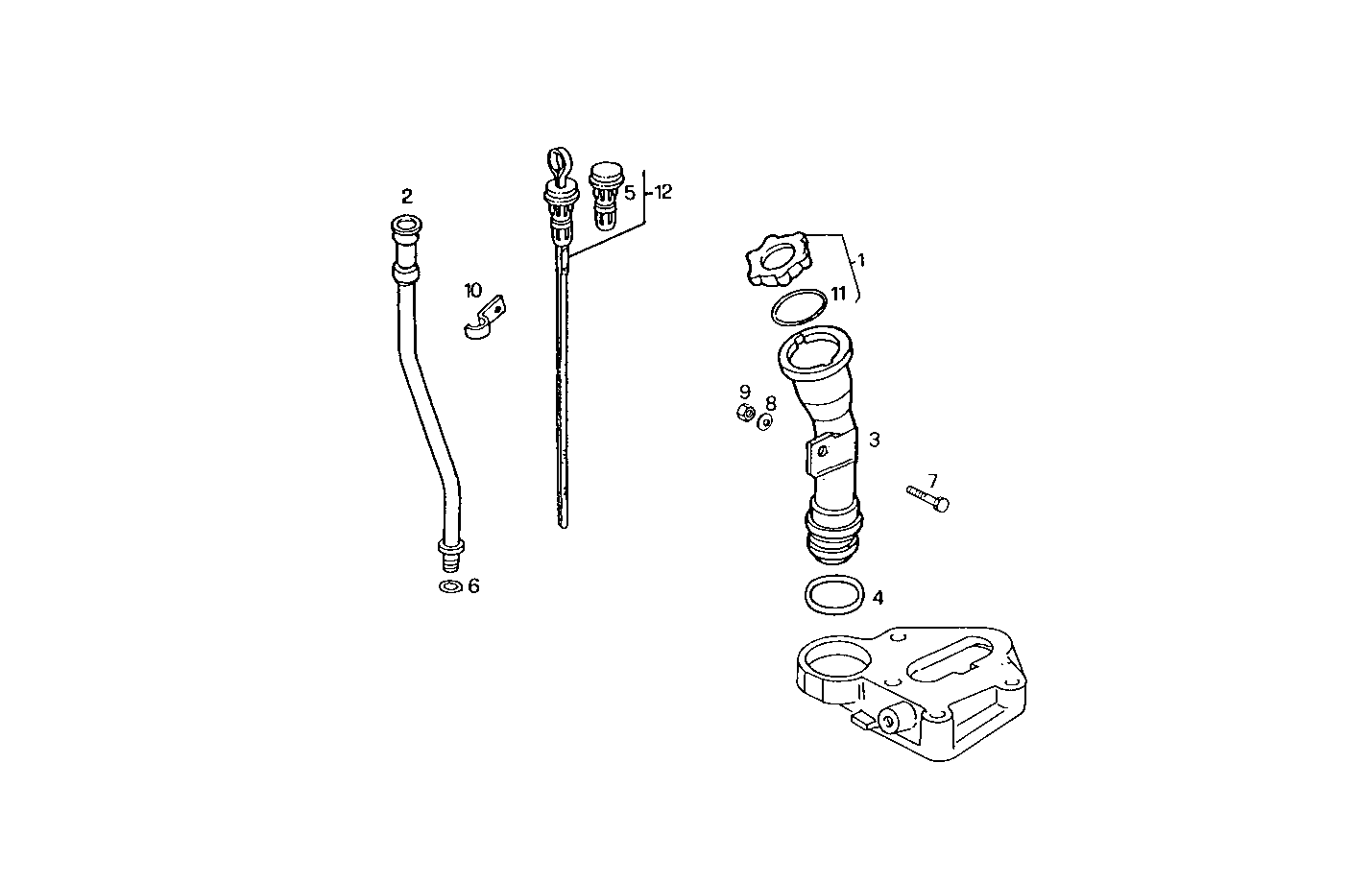

2710.091 OIL DIPSTICK
| Item | Part number | Description |
|---|---|---|
| 1 | 98418980 | OIL FILLER PLUG ASSY |
| 2 | 98414631 | OIL LEVEL TUBE |
| 3 | 98410030 | OIL FILLER PIPE |
| 4 | 17282681 | O-RING SP=2,62 MM |
| 5 | 4820870 | RUBBER GASKET |
| 6 | 17277981 | O-RING 1,78x9,25 |
| 7 | 16043324 | HEXAGON BOLT M8X18 MM |
| 8 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 9 | 17037931 | HEXAGON NUT M8X1,25 |
| 10 | 17316590 | PIPE CLIP Ø12 MM |
| 11 | 98418978 | GASKET |
| 12 | 98414630 | OIL DIPSTICK ASSY |
