8140SC23.00A002

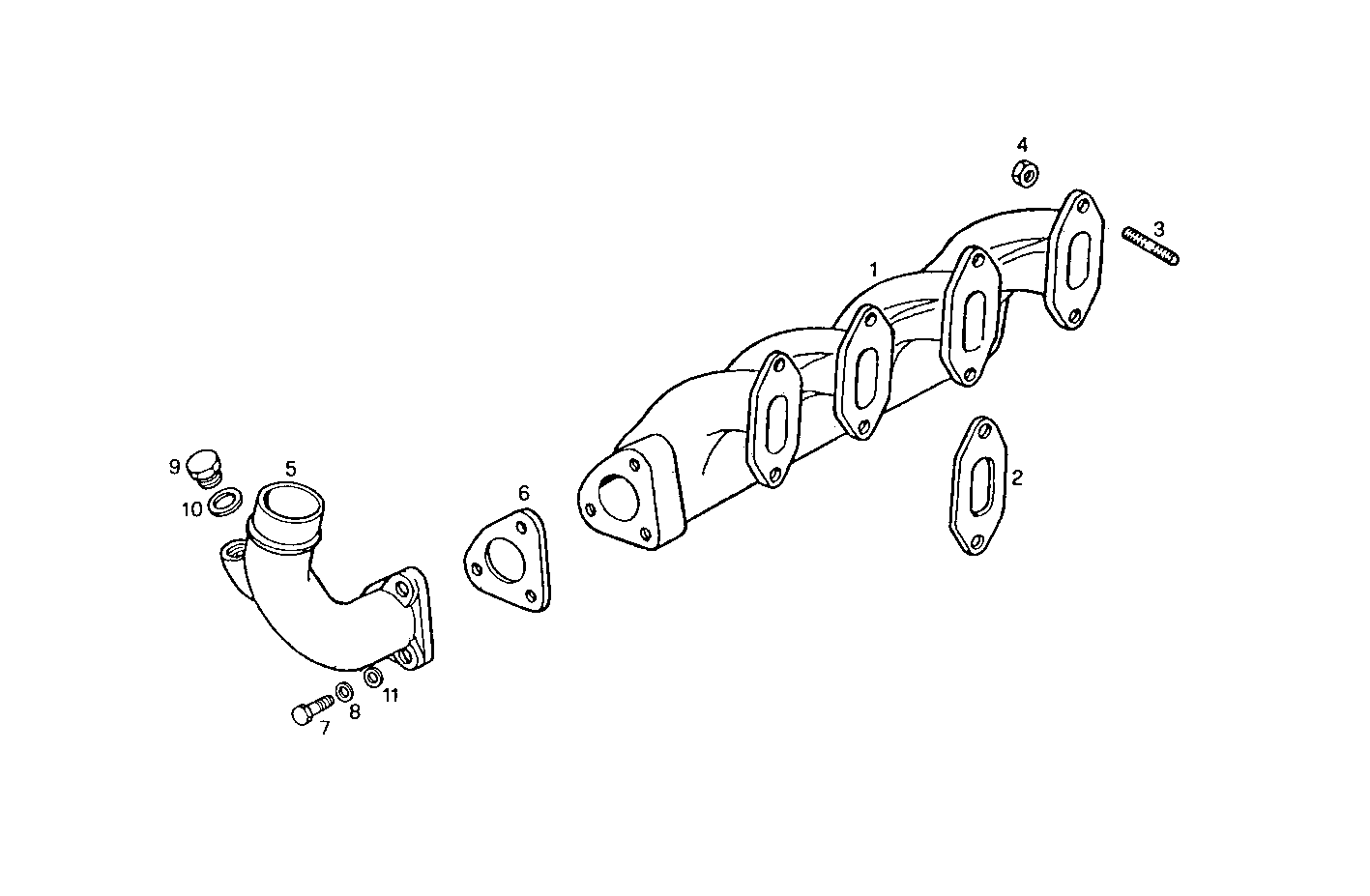

0710.097 INTAKE MANIFOLD

Iveco/FPT INTAKE MANIFOLD

Item Part number Description
1 4843705 INTAKE ELBOW
2 98425767 INTAKE ELBOW GASK. SP=0,8 MM
3 16746734 STUD M8X25 MM
4 99486343 HEXAGON NUT M8X1,25
5 99437603 INTAKE ELBOW Ø50 MM
6 98426170 FLAT ENGINE GASKET SP=0,8 MM
7 16690724 CYLIND-HEAD SCREW M8X30 MM
8 17094924 WASHER Ø8X16 MM
9 10304911 THREADED PLUG M20X1,5
10 10257260 SEAL GASKET SP=0,5 MM
11 17101534 SPRING WASHER Ø8 MM
