8140SC23.00A002

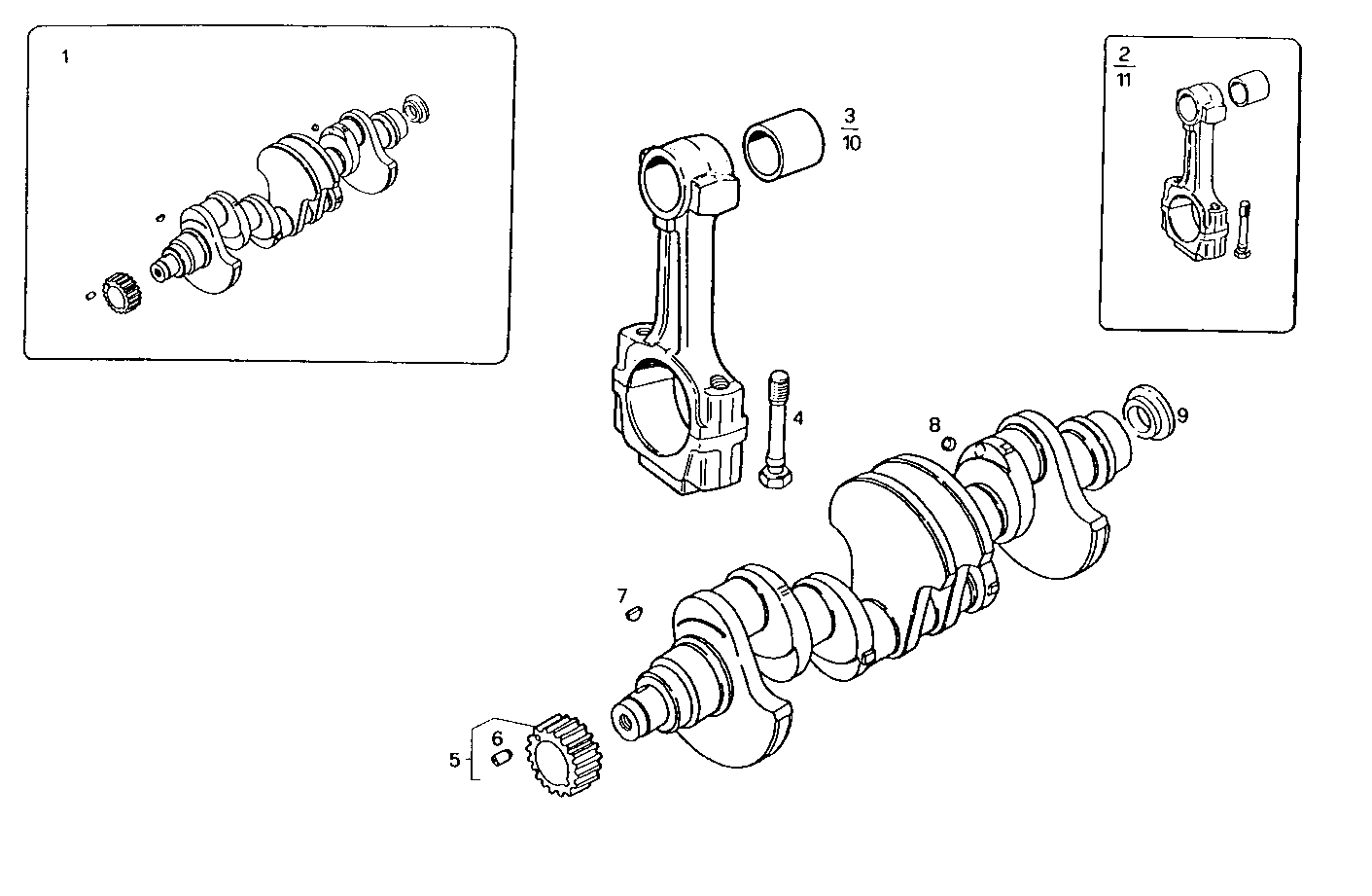

0800.065 CRANK SHAFT - CONNECTING RODS
Item | Part number | Description |
---|---|---|
1 | 99436244 | CRANK SHAFT ASSY |
2 | 7473171 | CONN.ROD ASSY. ASSY |
3 | 7302028 | BIG-END BUSH |
4 | 98460577 | BIG-END BOLT |
5 | 98419244 | CAMSHAFT PINION ASSY [from 1307401] |
6 | 10332010 | PARALLEL PIN |
7 | 4655844 | KEY |
8 | 14328101 | LOCK PLUG Ø8 MM |
9 | 98426373 | CENTERING RING [from 1307401] |
10 | 500329617 | BIG-END BUSH [FROM # 2572280] |
11 | 500352497 | CONN.ROD ASSY. ASSY [FROM # 2572280] |
