8140SC23.00A002

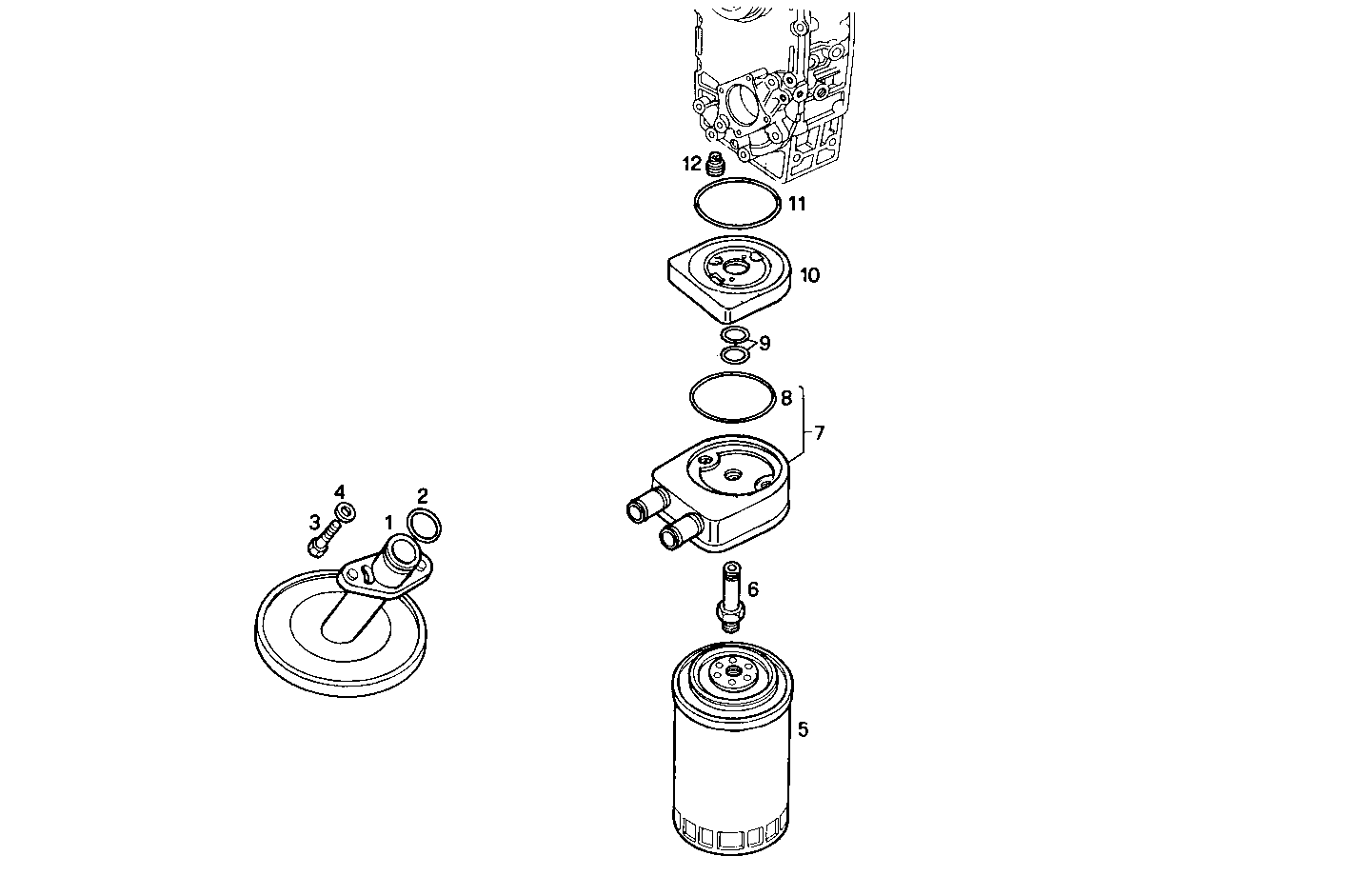

3010.077 LUBE OIL LINES
Item | Part number | Description |
---|---|---|
1 | 4859872 | SUCTION STRAINER |
2 | 17282281 | O-RING 2,62x23,47 |
3 | 16605524 | HEXAGON BOLT M8X20 MM |
4 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
5 | 1903628 | OIL FILTER CARTRIDGE |
6 | 4866353 | THREADED UNION |
7 | 4866350 | HEAT EXCHANGER ASSY |
8 | 93160574 | RUBBER RING Ø66 MM SP=5 MM |
9 | 17278781 | O-RING Ø21,95 MM SP=1,78 MM |
10 | 99488291 | OIL FILTER SUPPORT |
11 | 17290181 | O-RING Ø59,92 MM SP=3,53 MM |
12 | 4737557 | DOWEL PIN |
