8140SC23.00A005

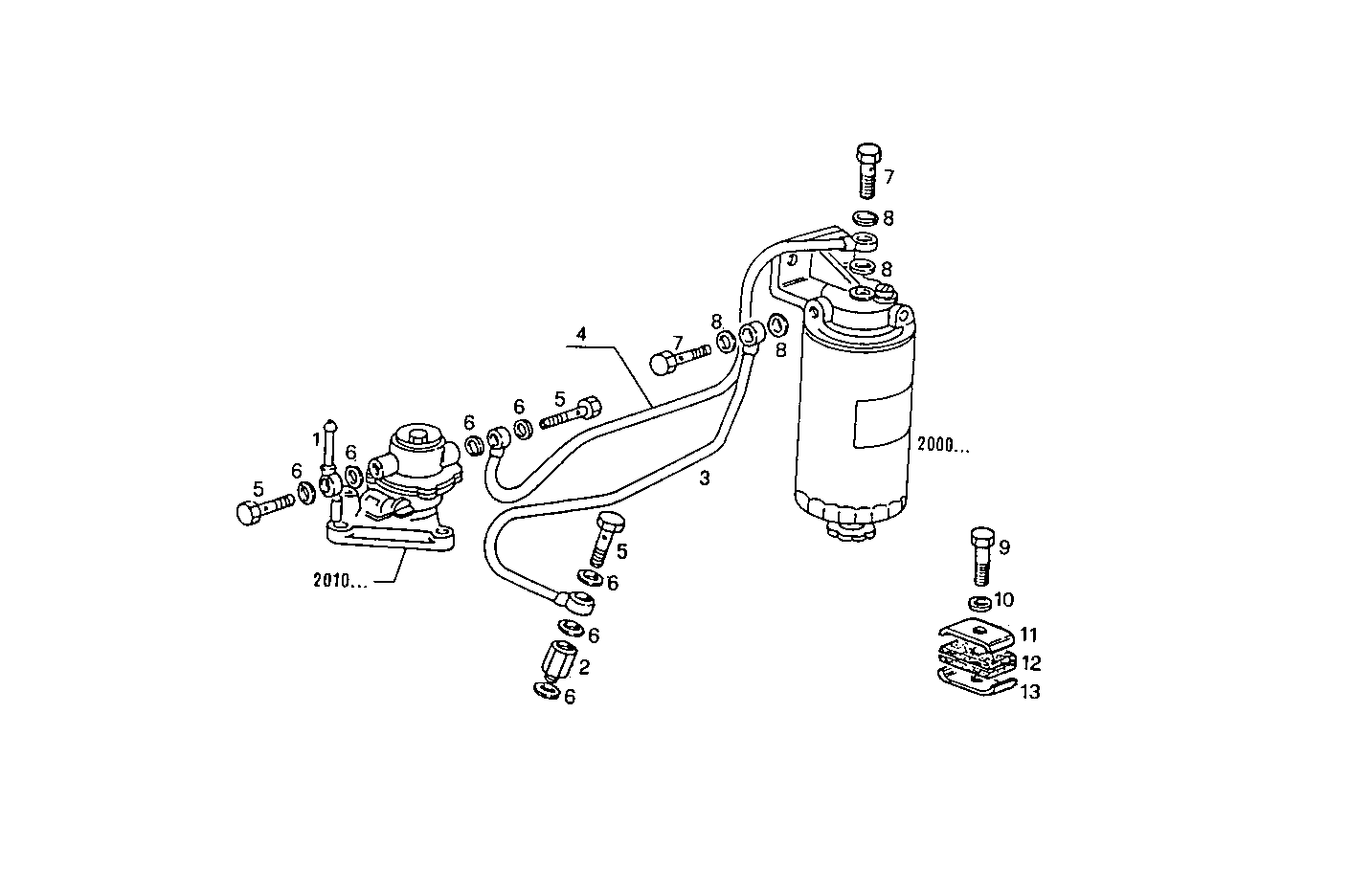

2030.142 FUEL LINES
Item | Part number | Description |
---|---|---|
1 | 98434018 | THREADED UNION |
2 | 4934594 | PIPE SOCKET |
3 | 8013730 | FUEL LINE [from 06-92] |
4 | 8010898 | FUEL LINE |
5 | 4864082 | BANJO BOLT M12X1,5X25 MM |
6 | 98474306 | WASHER Ø12X20 MM SP=1,9 MM |
7 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
8 | 98474308 | SEAL GASKET Ø14X22 MM |
9 | 16602324 | HEXAGON BOLT M5X25 MM |
10 | 17494634 | SPRING WASHER Ø5,1X9,2 MM |
11 | 4659218 | CLIP |
12 | 4659217 | DOWEL |
13 | 4659219 | PLATE |
