8140SE00.00

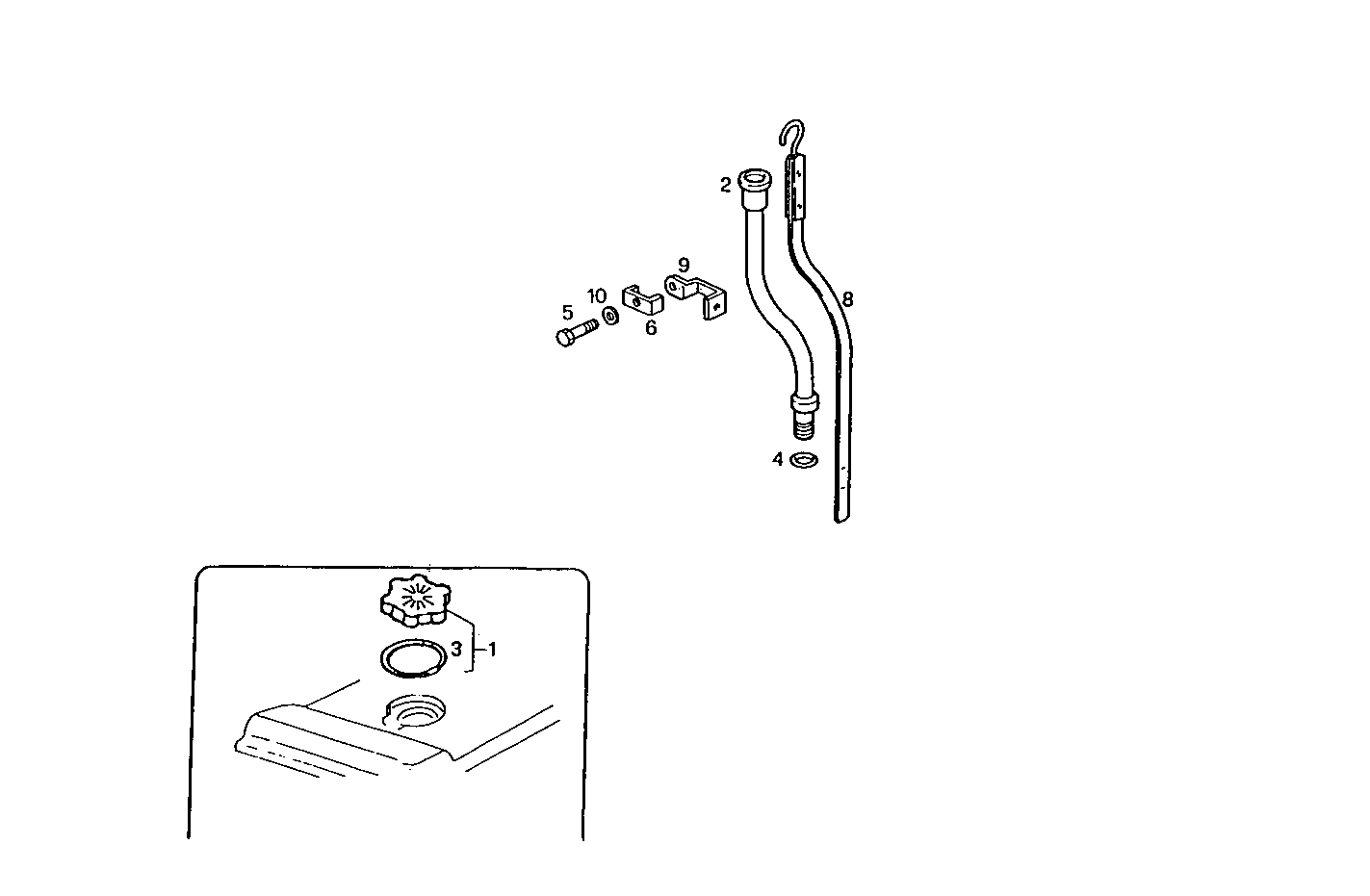

2710.078 OIL DIPSTICK
Item | Part number | Description |
---|---|---|
1 | 98442027 | OIL FILLER PLUG ASSY |
2 | 500318006 | ROD GUIDE |
3 | 98412146 | GASKET |
4 | 14452981 | O-RING Ø9,25 MM SP=1,78 MM |
5 | 16586424 | HEXAGON BOLT M8X25 MM |
6 | 4716870 | RETAINER |
8 | 8020639 | OIL DIPSTICK ASSY |
9 | 7303600 | RETAINER |
10 | 11193874 | WASHER Ø8X16 MM |
