8140SE00.00A012

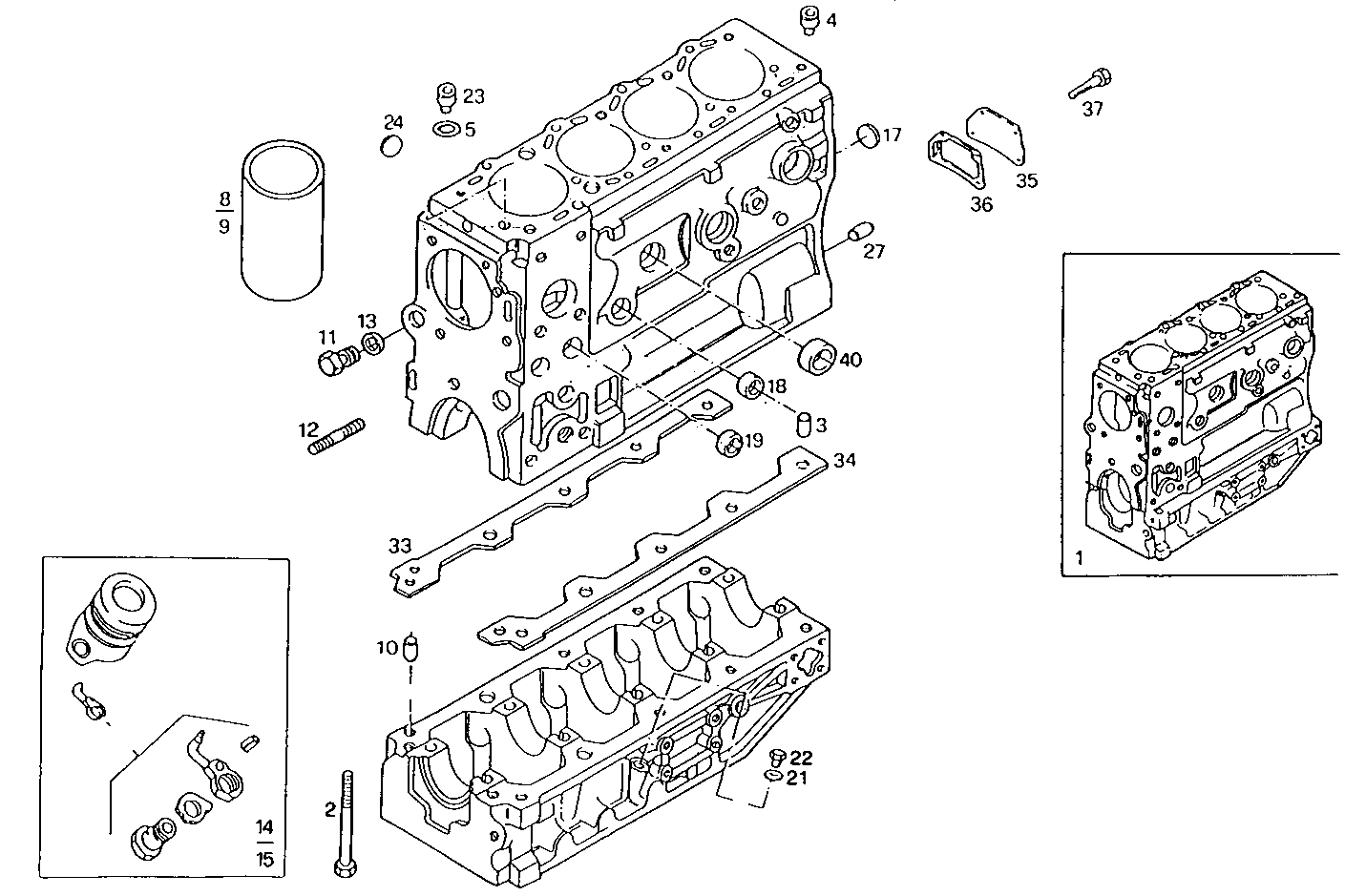

0400.107 CRANKCASE

Iveco/FPT CRANKCASE

Item Part number Description
1 99477104 CRANKCASE ASSY
2 4792169 SCREW
3 4724790 DOWEL PIN
4 98418754 DOWEL PIN
5 14452981 O-RING Ø9,25 MM SP=1,78 MM
8 99435938 CYLINDER LINER STD.
9 99443784 CYLINDERLINER +0.2
10 4279387 CENTERING RING
11 7303457 THREADED PLUG
12 7301674 STUD
13 10259960 WASHER Ø18,2X24 MM SP=1,5 MM
14 99477122 OIL NOZZLE KIT [up to 2572279]
15 500352905 OIL NOZZLE KIT [from 2572280]
17 7301976 PLUG Ø16 MM
18 14328901 LOCK PLUG Ø25 MM
19 14329001 LOCK PLUG Ø28 MM
21 10261060 GASKET Ø12X16 MM SP=1,5 MM
22 11903211 LOCK PLUG M12X1,25
23 98418753 DOWEL PIN [from 1533081]
24 10275501 LOCK PLUG M12X1,25
27 7300019 DOWEL PIN
33 99432808 FLAT ENGINE GASKET RIGHT [from 2122618]
34 99432807 FLAT ENGINE GASKET LEFT [from 2122618]
35 98471295 COVER [from 2122618]
36 500329970 FLAT ENGINE GASKET SP=0,4 MM
37 16586224 HEXAGON BOLT M8X1,25X16 MM
40 14282870 LOCK PLUG Ø40 MM
