8140SE00.00A012

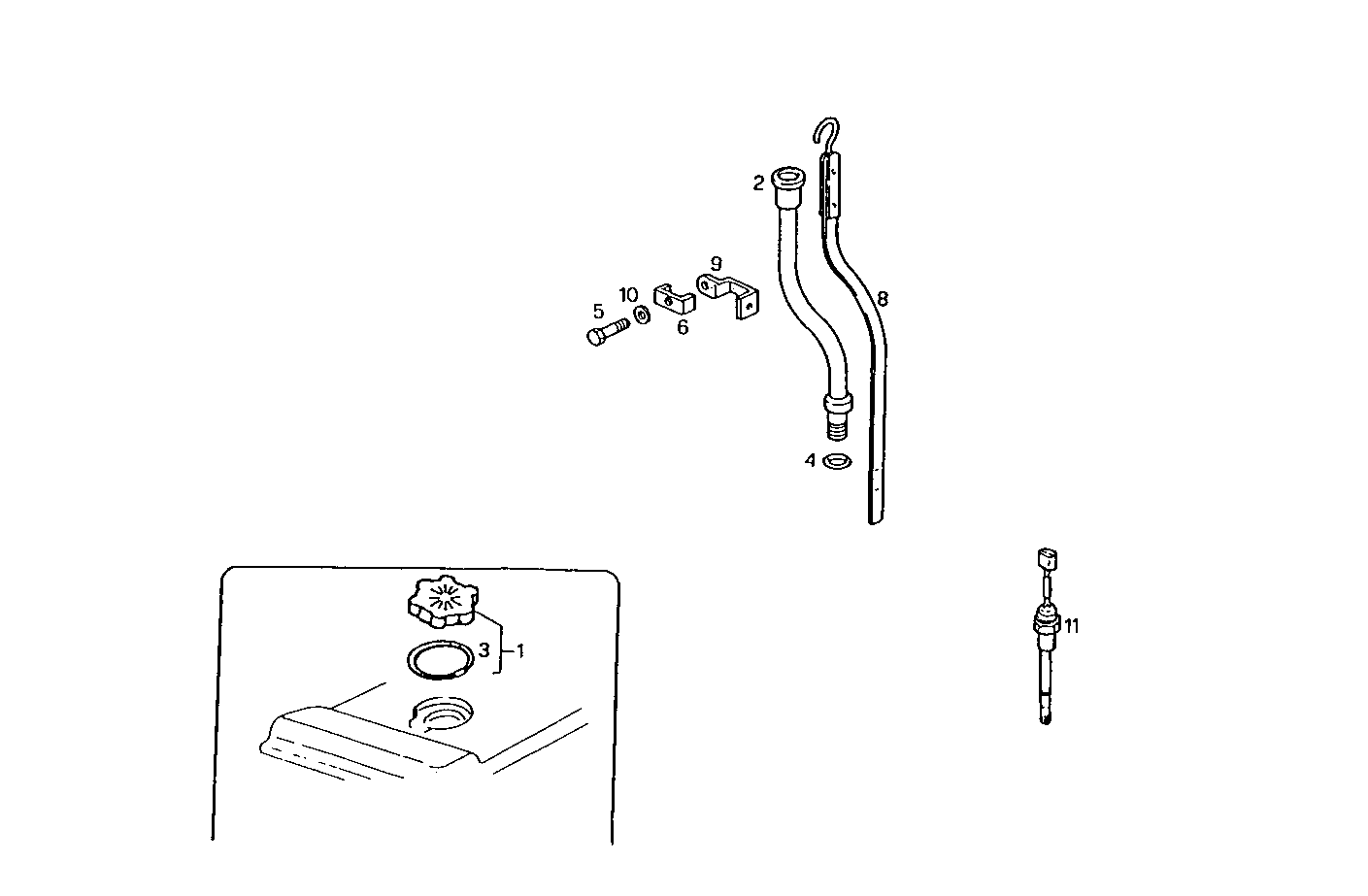

2710.082 OIL DIPSTICK
Item | Part number | Description |
---|---|---|
1 | 98442027 | OIL FILLER PLUG ASSY |
2 | 8027725 | OIL LEVEL TUBE |
3 | 98412146 | GASKET |
4 | 17277981 | O-RING 1,78x9,25 |
5 | 16586424 | HEXAGON BOLT M8X25 MM |
6 | 4716870 | RETAINER |
8 | 500302197 | OIL DIPSTICK ASSY |
9 | 7303600 | RETAINER |
10 | 11193874 | WASHER Ø8X16 MM |
11 | 99444825 | SENSOR Ø12 MM |
