8140SE00.00A012

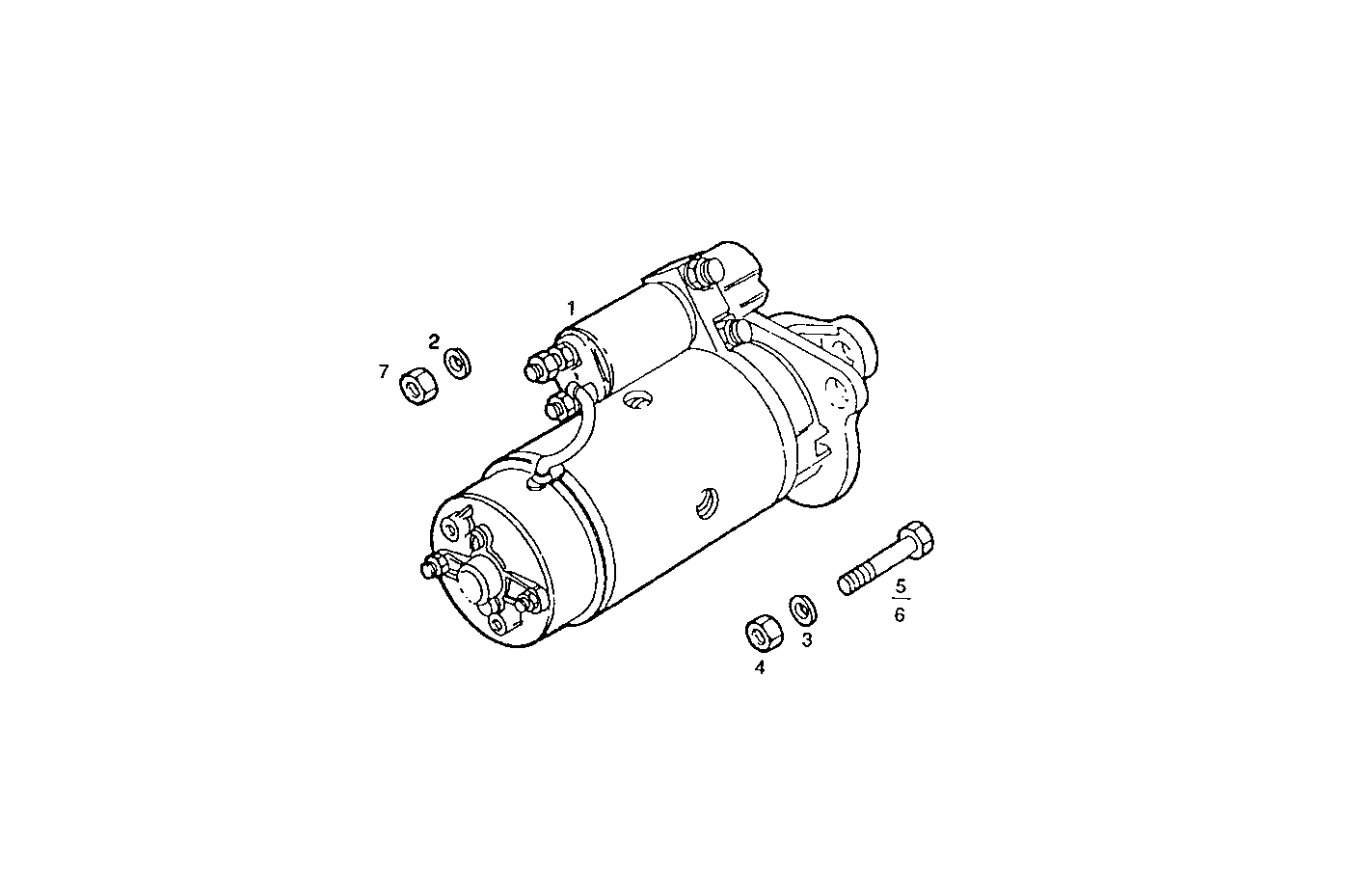

3600.070 STARTER MOTOR

Iveco/FPT STARTER MOTOR

Item Part number Description
1 8023515 STARTER MOTOR ASSY BOSCH
2 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
3 17090174 SPRING WASHER Ø10X20 MM
4 17038221 HEXAGON NUT M10
5 11306921 SCREW M10X1,25X30
6 11234721 HEXAGON BOLT M10X1,25X45 MM
7 17037931 HEXAGON NUT M8X1,25
