8140SE00.00A015

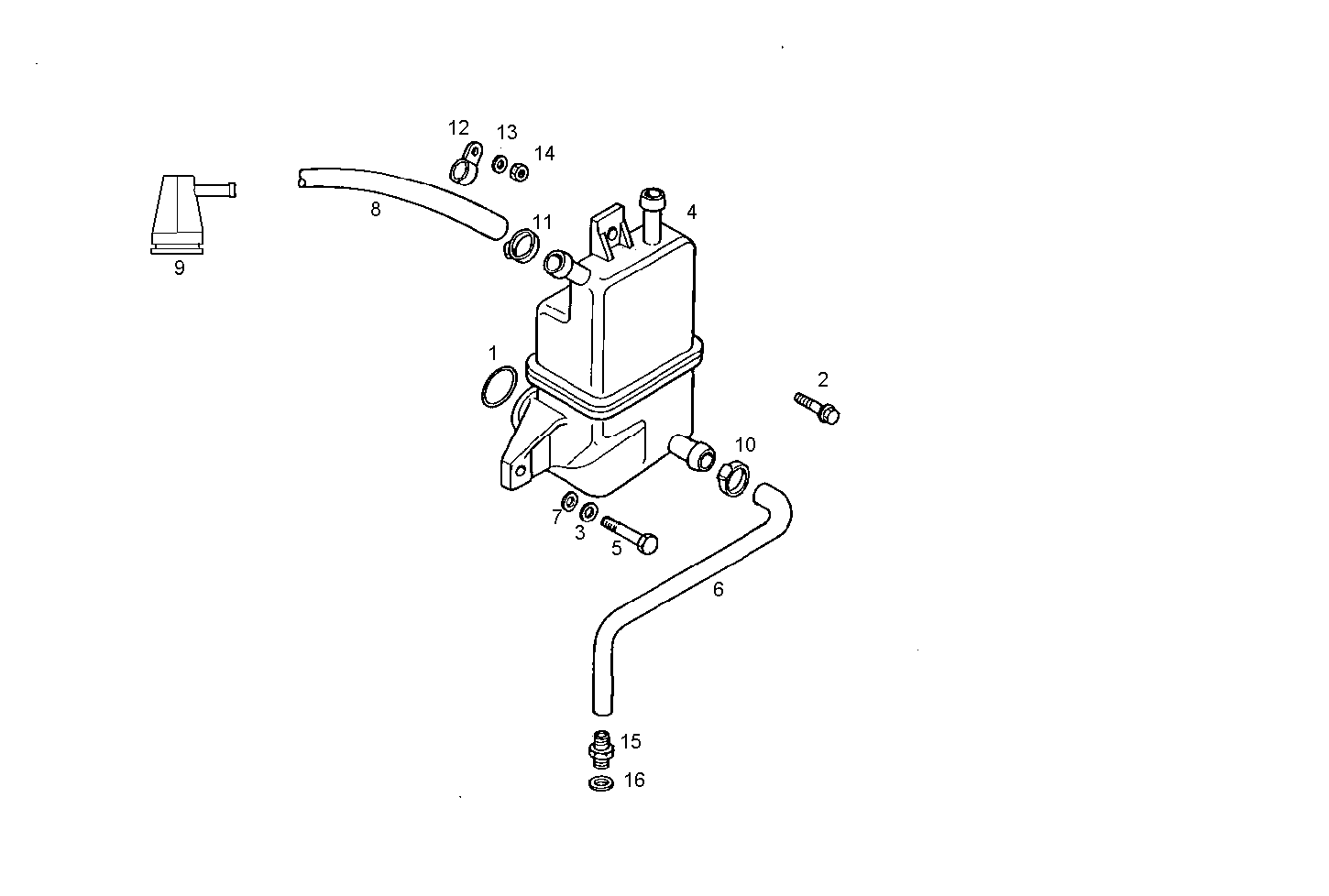

0450.126 ENGINE BREATHERS
Item | Part number | Description |
---|---|---|
1 | 17289681 | O-RING Ø44 MM SP=3,53 MM |
2 | 16596924 | HEXAGON BOLT M6X10 MM |
3 | 12646724 | WASHER Ø8X21X1,5 MM |
4 | 98496418 | BREATHER |
5 | 16690524 | SCREW M8X20 MM (8.8) |
6 | 8022156 | AIR HOSE |
7 | 17101534 | SPRING WASHER Ø8 MM |
8 | 500319931 | RUBBER SLEEVE L=550 MM |
9 | 98423606 | RUBBER SLEEVE Ø25X18 MM |
10 | 17764592 | CLIP Ø20/32 MM |
11 | 18088292 | CLIP Ø12/20 MM |
12 | 17316990 | LOCK/YOKE |
13 | 11197774 | WASHER Ø6 MM |
14 | 17037821 | HEXAGON NUT M6X1 |
15 | 500338968 | PIPE SOCKET |
16 | 10298460 | SEAL GASKET Ø12X18 MM SP=1,5 MM |
