8140SE00.00A015

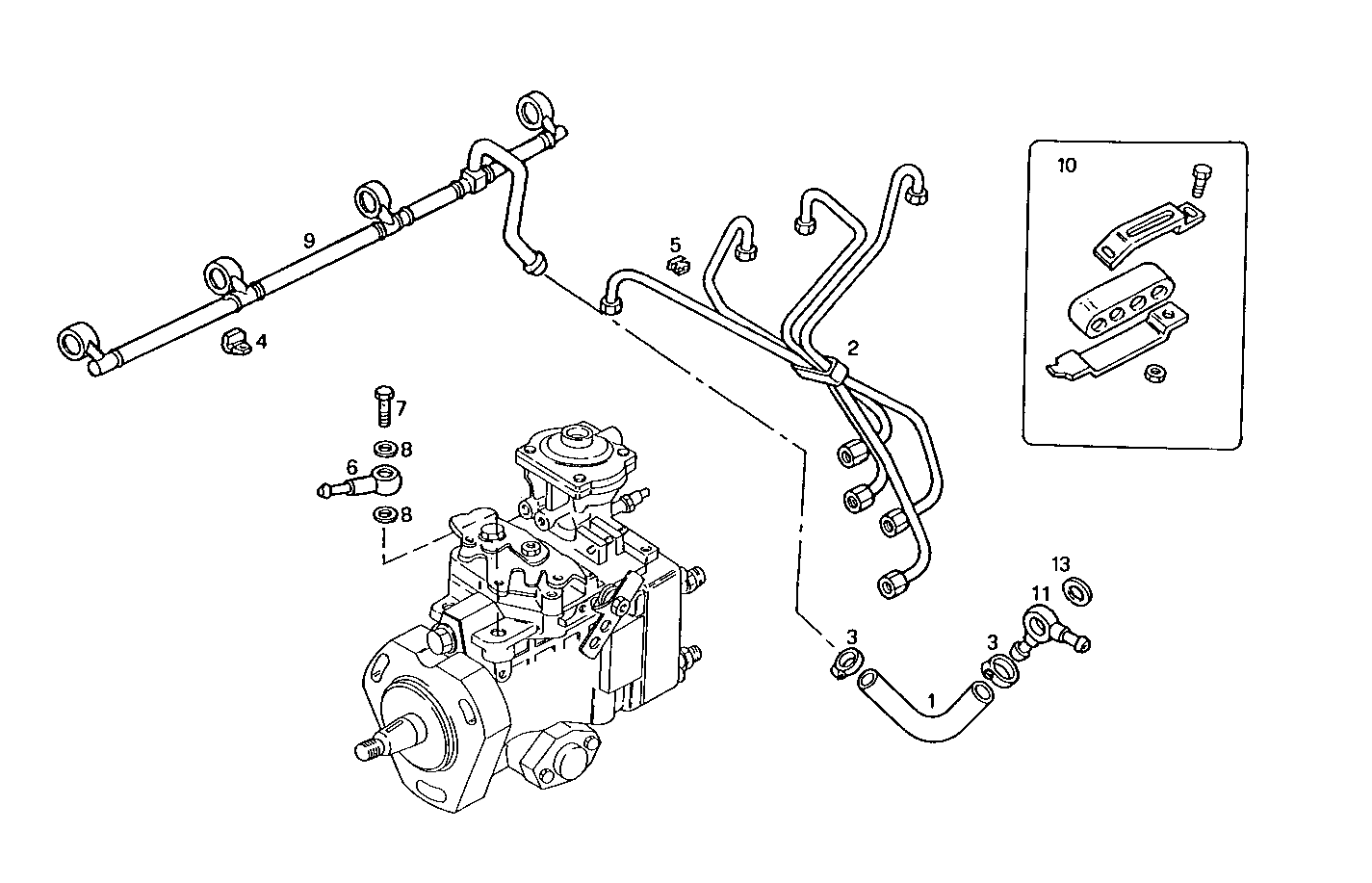

2020.096 INJECTION PIPES
| Item | Part number | Description |
|---|---|---|
| 1 | 19056687 | RUBBER HOSE Ø7,5 MM |
| 2 | 99444677 | INJECTION LINE SET |
| 3 | 18088291 | CLIP Ø12/20 MM |
| 4 | 4734007 | RETAINER FRONT |
| 5 | 4734008 | RETAINER REAR |
| 6 | 4722869 | SWIVEL COUPLING |
| 7 | 4864082 | BANJO BOLT M12X1,5X25 MM |
| 8 | 10296160 | SEAL GASKET Ø12X18 MM SP=1 MM |
| 9 | 98416553 | FUEL LINE |
| 10 | 4806613 | RETAINER |
| 11 | 4775496 | PIPE SOCKET 1C |
| 13 | 98474306 | WASHER Ø12X20 MM SP=1,9 MM |
