8140SE00.00A015

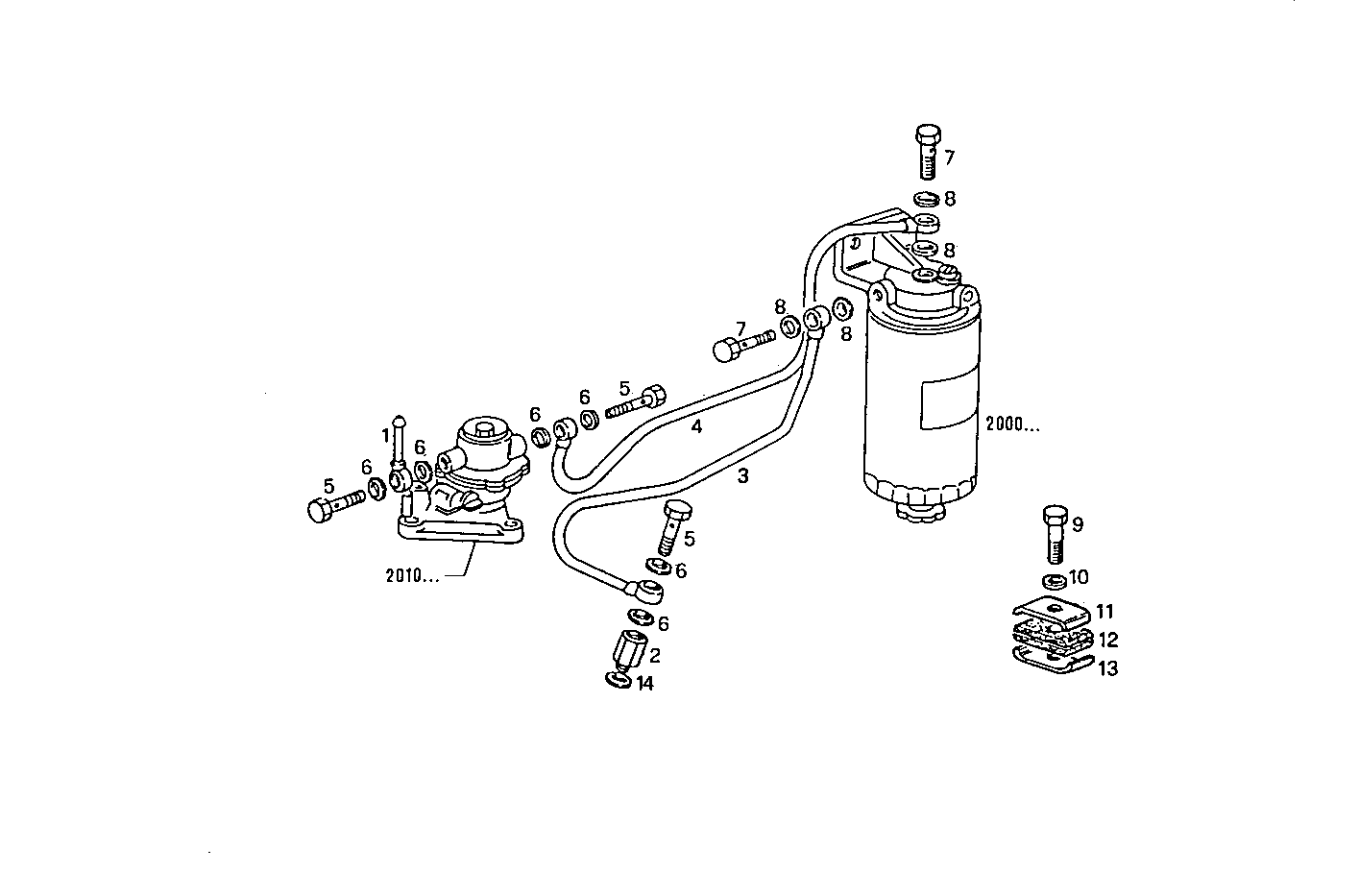

2030.131 FUEL LINES
Item | Part number | Description |
---|---|---|
1 | 98405514 | PIPE SOCKET |
2 | 4934594 | PIPE SOCKET |
3 | 8032574 | FUEL LINE |
4 | 8032573 | FUEL LINE |
5 | 4864082 | BANJO BOLT M12X1,5X25 MM |
6 | 98474306 | WASHER Ø12X20 MM SP=1,9 MM |
7 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
8 | 98474308 | SEAL GASKET Ø14X22 MM |
9 | 16602224 | HEXAGON BOLT M5X20 MM |
10 | 11199279 | SPRING WASHER Ø5X10X0,5 MM |
11 | 4659218 | CLIP |
12 | 4659217 | DOWEL |
13 | 4659219 | PLATE |
14 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
