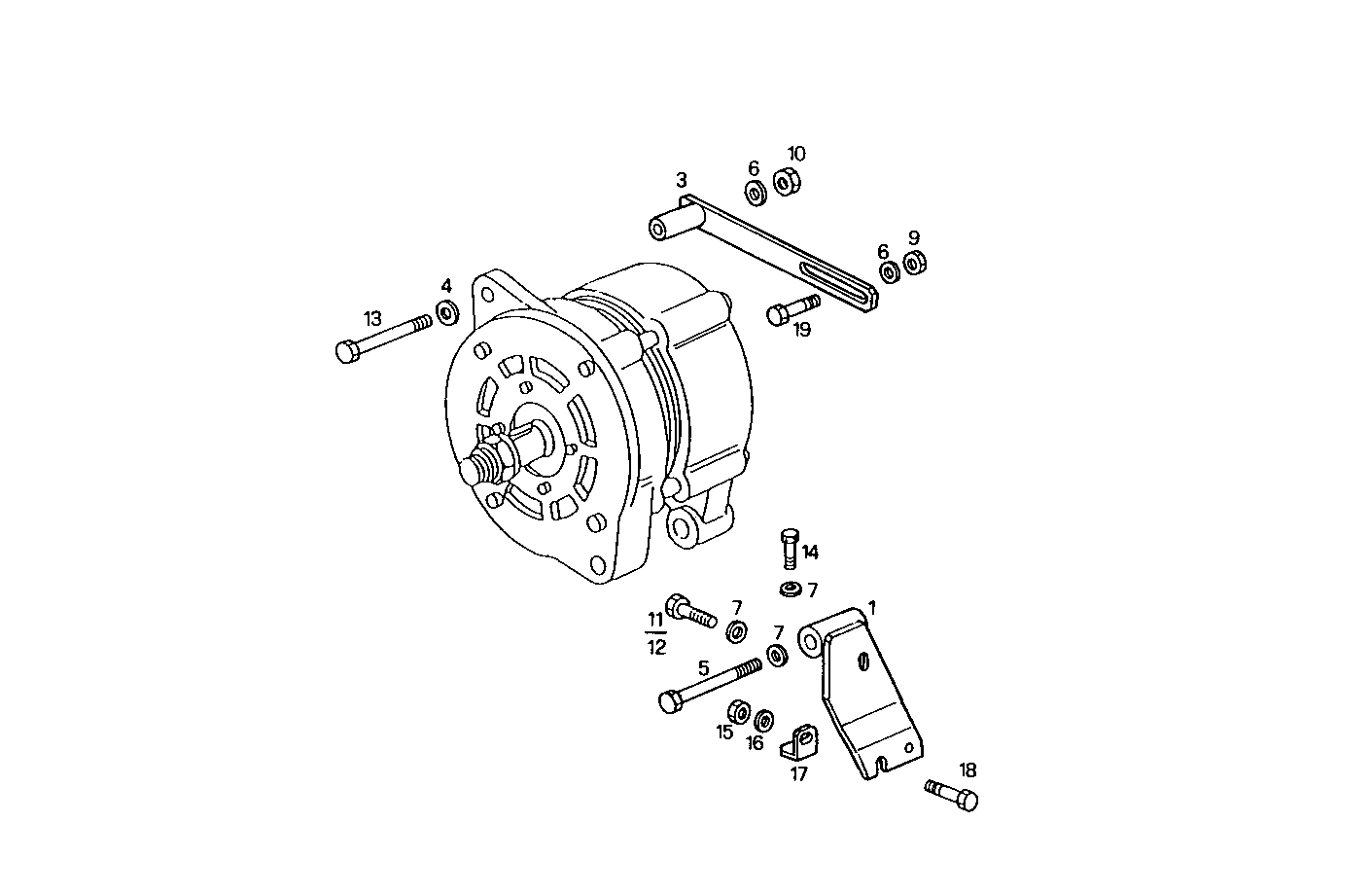

| Item |
Part number |
Description |
|
1 |
8027760 |
SUPPORT |
|
3 |
8027754 |
BELT TENSIONER |
|
4 |
7300040 |
WASHER SP=2,00 MM |
|
5 |
16611124 |
HEXAGON BOLT M12X110 MM |
|
6 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
7 |
17091074 |
WASHER Ø12X24X2,8 MM |
|
9 |
17038121 |
HEXAGON NUT M10 |
|
10 |
17153021 |
HEXAGON NUT M10X1,25 |
|
11 |
16606324 |
HEXAGON BOLT M8X60 MM |
|
12 |
16607174 |
SCREW |
|
13 |
15971421 |
HEXAGON BOLT M10X1,25X80 MM |
|
14 |
8101125 |
SCREW |
|
15 |
17037981 |
NUT M8X1,25 |
|
16 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
17 |
8027786 |
RETAINER |
|
18 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
19 |
16607624 |
SCREW M10X25 |
