8140SRC20.10

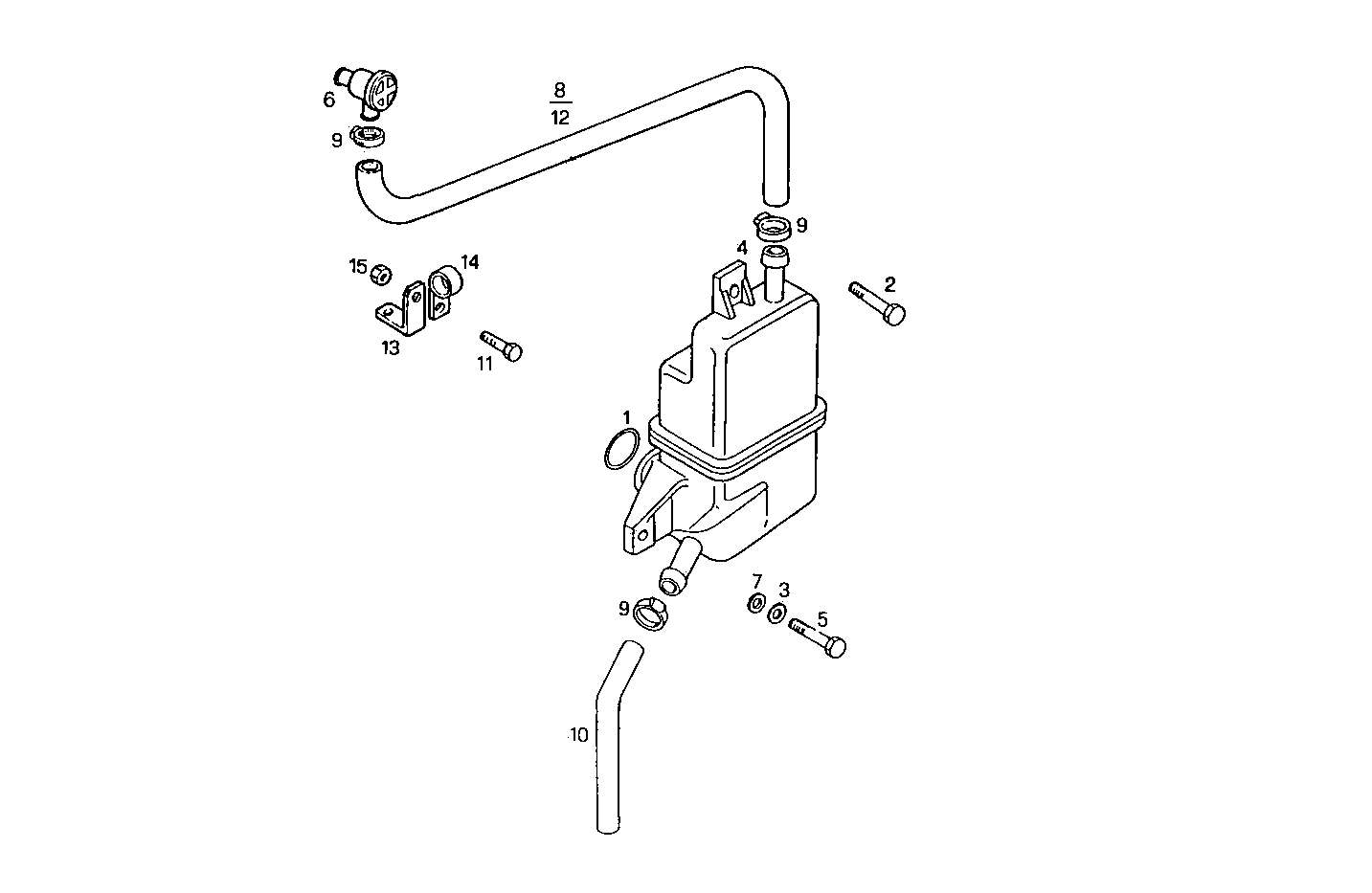

0450.108 ENGINE BREATHERS
Item | Part number | Description |
---|---|---|
1 | 17289681 | O-RING Ø44 MM SP=3,53 MM |
2 | 16585724 | HEXAGON BOLT M6X16 MM |
3 | 12646724 | WASHER Ø8X21X1,5 MM |
4 | 500302200 | BREATHER |
5 | 16690524 | SCREW M8X20 MM (8.8) |
6 | 4810557 | BYPASS VALVE |
7 | 17101534 | SPRING WASHER Ø8 MM |
8 | 99432958 | RUBBER SLEEVE L=550 MM [from 2209206] |
9 | 17764592 | CLIP Ø20/32 MM |
10 | 98493760 | RUBBER SLEEVE |
11 | 16586324 | HEXAGON BOLT M8X1,25X20 MM |
12 | 98423606 | RUBBER SLEEVE Ø25X18 MM |
13 | 7301026 | FASTENING BRACKET |
14 | 17317290 | FASTENING BRACKET Ø26 MM |
15 | 17044721 | HEXAGON NUT M8X1,25 |
