8140SRC20.10

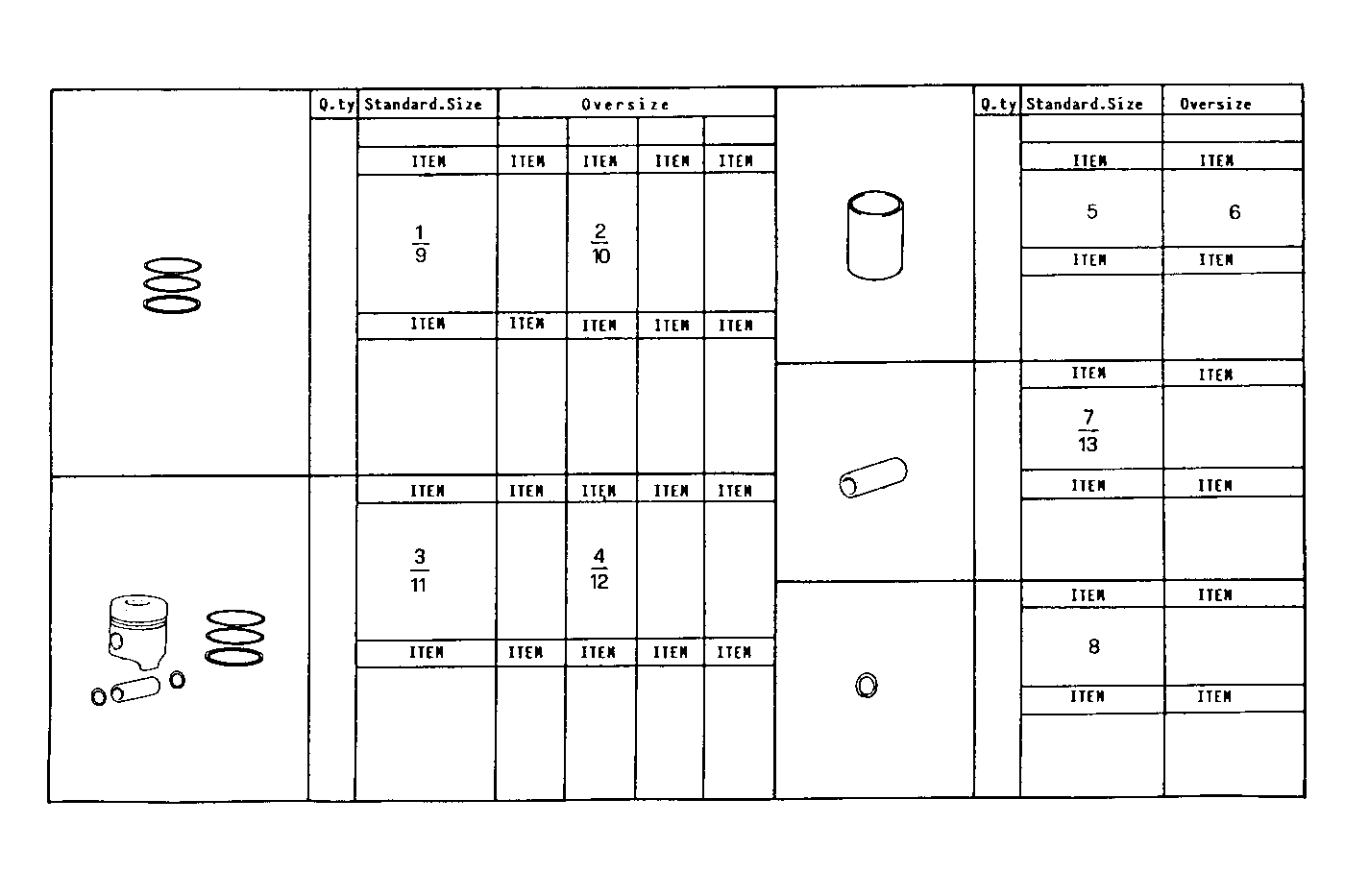

0820.152 PISTON ASSY - PISTON RINGS - PISTON PIN

Iveco/FPT PISTON ASSY - PISTON RINGS - PISTON PIN

Item Part number Description
1 99482118 PISTONRING SET STD
2 99482119 PISTONRING SET+0.4 ASSY MOTA
3 99477111 PISTON ASSY
4 99482120 PISTON ASSY. +0.4
7 98411283 PISTON PIN
8 4758576 SPRING LOCKWASHER
9 500352835 PISTONRING SET STD [from 2572280]
10 500352849 PISTONRING SET+0.4 [from 2572280]
11 500352812 PISTON ASSY +0,0 MM [from 2572280]
12 500352821 PISTON ASSY. +0.4 [from 2572280]
13 500330843 PISTON PIN [from 2572280]
