8140SRC20.10

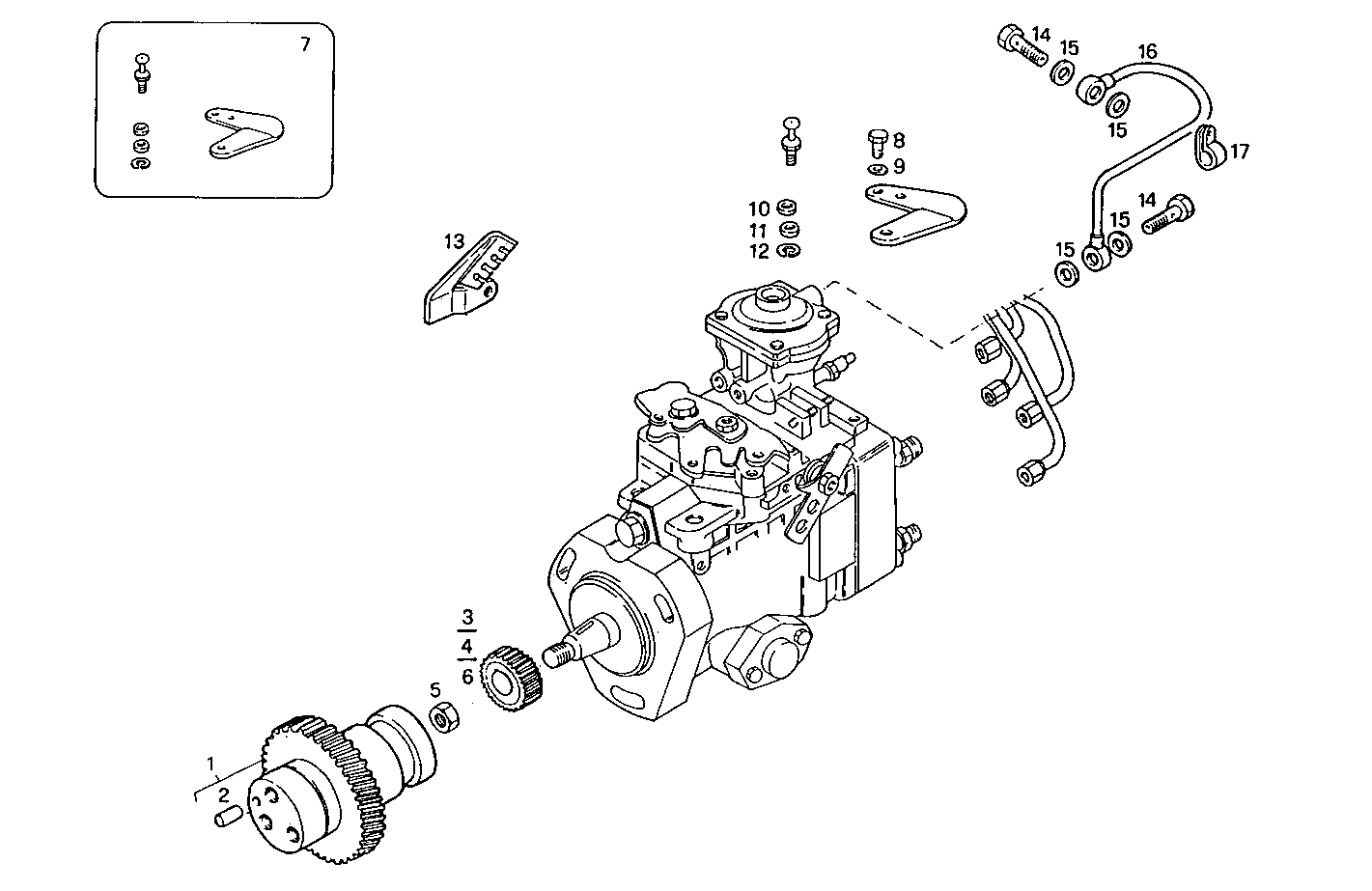

1410.078 INJECTION PUMP DRIVE

Iveco/FPT INJECTION PUMP DRIVE

Item Part number Description
1 99483385 SLIDING PROP.SHAFT ASSY GKN
2 10335910 PARALLEL PIN
3 4772022 INJECT.PUMP BUSH 197° 30' [from 1992415]
4 4797226 INJECT.PUMP BUSH 200° 30' [from 1992415]
5 17043231 NUT M14X1,5
6 98457105 INJECT.PUMP BUSH 205°
7 98425989 LEVER ASSY [from 1394976]
8 16596924 HEXAGON BOLT M6X10 MM
9 17798174 SPRING WASHER Ø6,1X11,8 MM
10 12544271 SPRING WASHER Ø6X11 MM
11 17094714 WASHER Ø6,4X12 MM
12 17087174 SPRING LOCKWASHER Ø5 MM
13 98425990 RETAINER [from 1394976]
14 11904011 SCREW CONNECTOR
15 10262760 SEAL GASKET Ø8,2 MM
16 7302725 FUEL LINE
17 10450090 PIPE CLIP Ø8 MM
