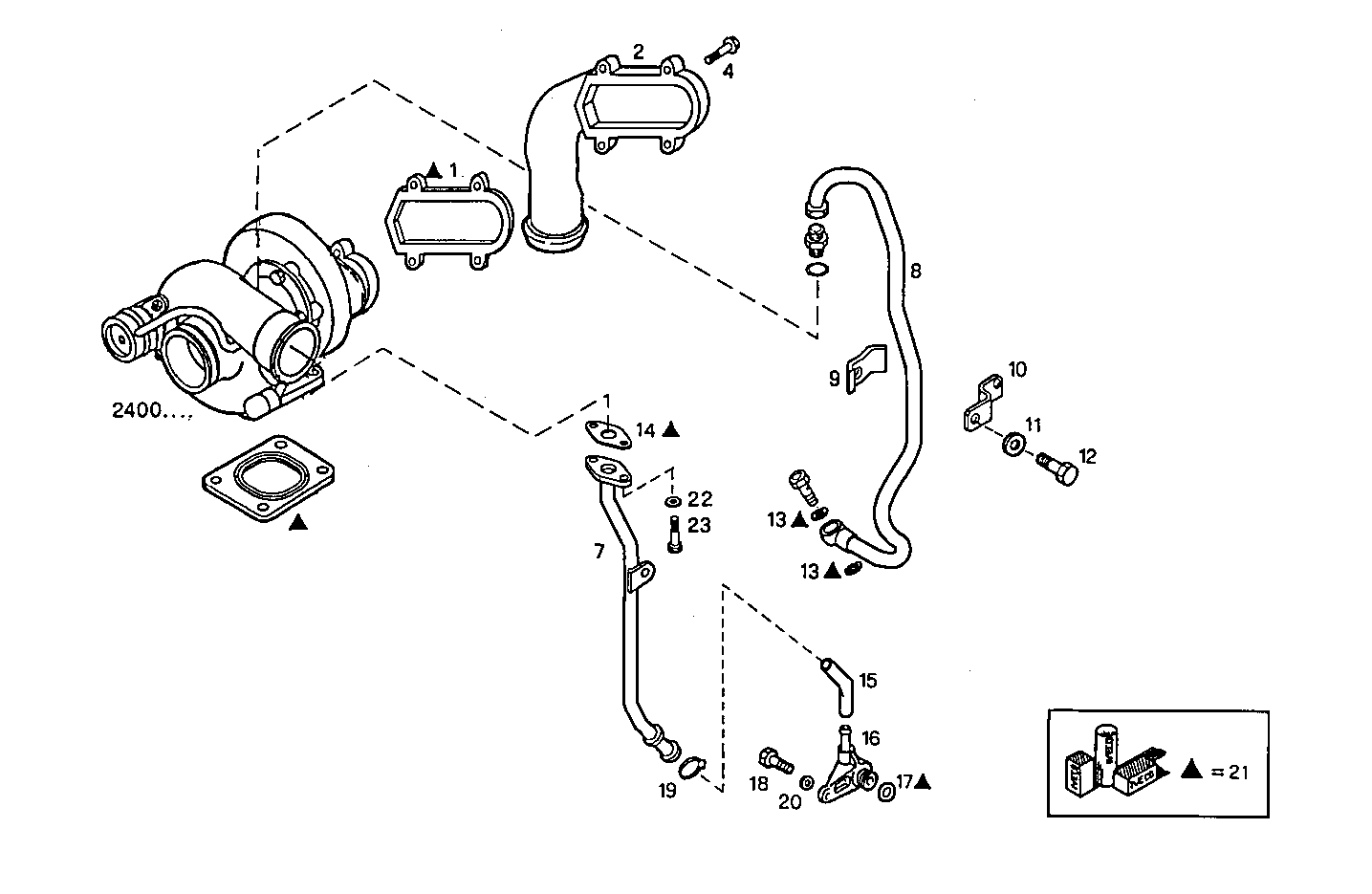

| Item |
Part number |
Description |
|
1 |
98484659 |
FLAT ENGINE GASKET |
|
2 |
99436004 |
AIR PIPE/DUCT L=680 MM |
|
4 |
99441800 |
HEXAGON BOLT M8X1,25X38 MM |
|
7 |
99470360 |
OIL LINE |
|
8 |
99443853 |
OIL LINE |
|
9 |
98485520 |
FASTENING BRACKET |
|
10 |
98485521 |
FASTENING BRACKET M6X20 MM |
|
11 |
17094714 |
WASHER Ø6,4X12 MM |
|
12 |
16603624 |
HEXAGON BOLT M6X16 MM (8.8) |
|
13 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
14 |
99436992 |
FLAT ENGINE GASKET |
|
15 |
99470366 |
RUBBER SLEEVE L=680 MM |
|
16 |
98499352 |
FLANGED SOCKET |
|
17 |
14462881 |
O-RING SP=3,53 MM |
|
18 |
16288424 |
HEXAGON BOLT M10X1,25X25 MM |
|
19 |
98463346 |
CLIP Ø15-22 MM |
|
20 |
17095104 |
WASHER Ø10X21X2 MM |
|
21 |
99477121 |
KIT-SEAL.GASKETS ASSY |
|
22 |
17088474 |
WASHER Ø6X12 MM |
|
23 |
16585724 |
HEXAGON BOLT M6X16 MM |
