8140SRC20.10

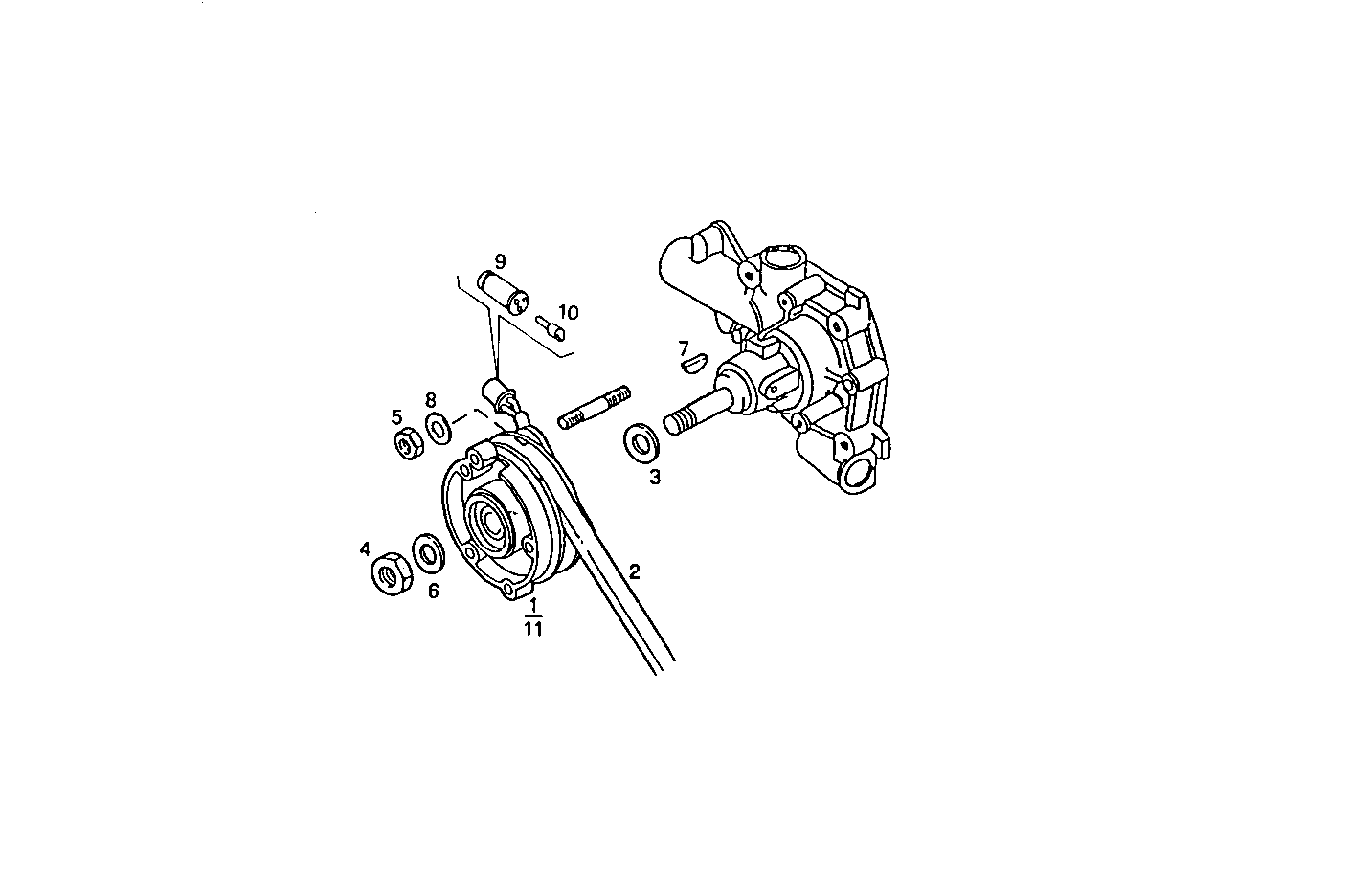

3240.079 PULLEYS AND BELTS

Iveco/FPT PULLEYS AND BELTS

Item Part number Description
1 99447017 WATER PUMP PULLEY Ø126 MM [up to 2332222]
2 99454341 V-BELT
3 98437565 WASHER Ø25 MM
4 98446151 HEXAGON NUT
5 17037821 HEXAGON NUT M6X1
6 17092071 SPRING WASHER Ø14X32 MM SP=4 MM
7 10205710 KEY 3X5 MM
8 17088474 WASHER Ø6X12 MM
9 4802399 WIRE CONNECTOR BLACK COL.
10 4802697 TERMINAL SEZ 0,5-1,5 MMQ
11 500305943 WATER PUMP PULLEY Ø126 MM [from 2332223]
