8140SRC20.10

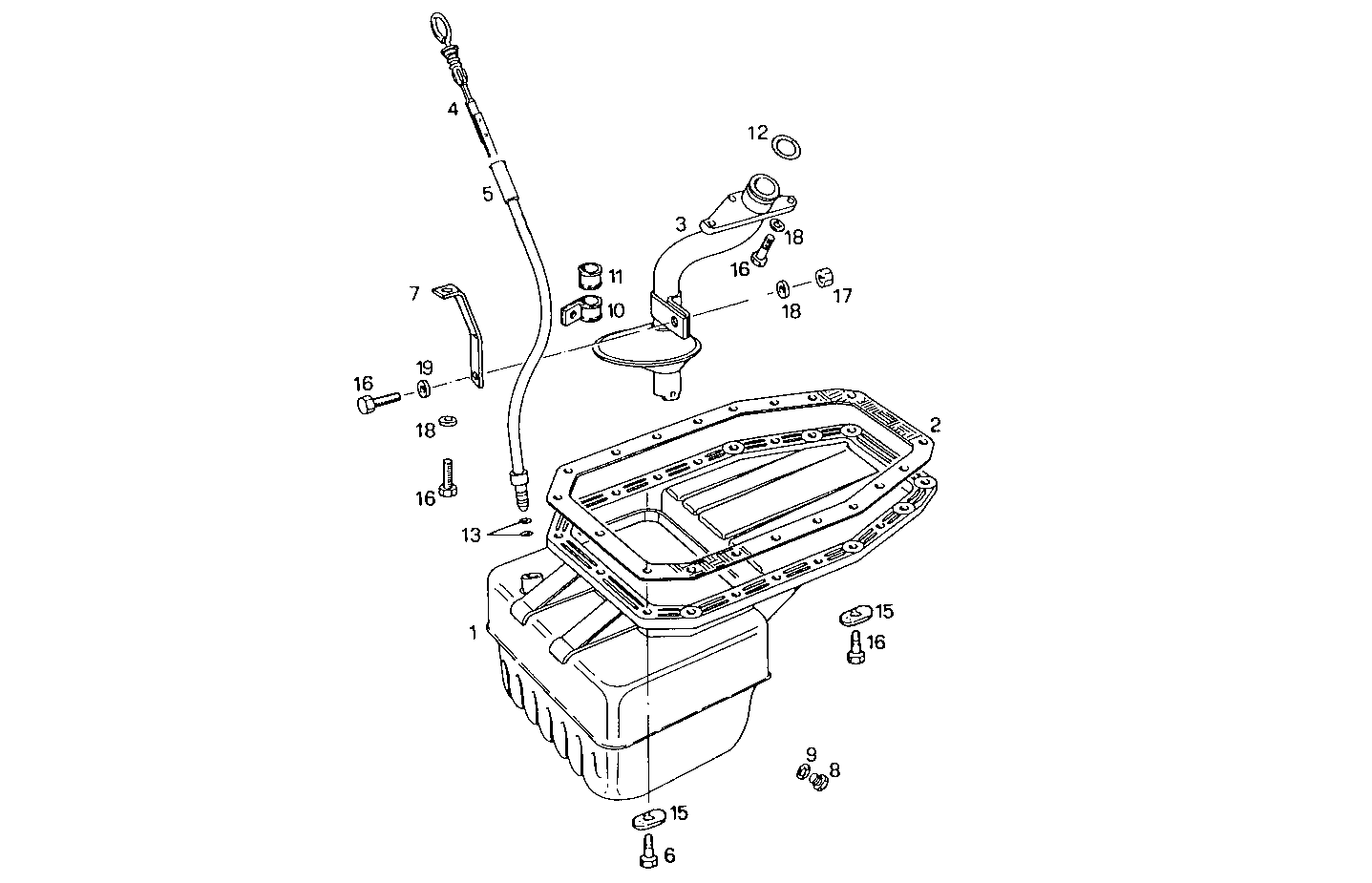

A01050022 OIL SUMP - max 45° with front weel
| Item | Part number | Description |
|---|---|---|
| 1 | 8007544 | OIL SUMP ASSY |
| 2 | 99488483 | OIL SUMP GASKET |
| 3 | 7300542 | SUCTION STRAINER |
| 4 | 8009735 | OIL DIPSTICK ASSY |
| 5 | 7300430 | OIL LEVEL TUBE |
| 6 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 7 | 8019884 | RETAINER |
| 8 | 16992611 | THREADED PLUG M22X1,5 |
| 9 | 10263460 | WASHER Ø22X28X1,5 MM |
| 10 | 4755963 | FASTENING BRACKET |
| 11 | 4755964 | RUBBER PAD |
| 12 | 17282221 | O-RING |
| 13 | 17277981 | O-RING 1,78x9,25 |
| 15 | 7300648 | LOCKING PLATE |
| 16 | 16605524 | HEXAGON BOLT M8X20 MM |
| 17 | 17152821 | NUT M8 [up to 555939] |
| 18 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 19 | 17094914 | WASHER 8x16 |
