8140SRC20.10

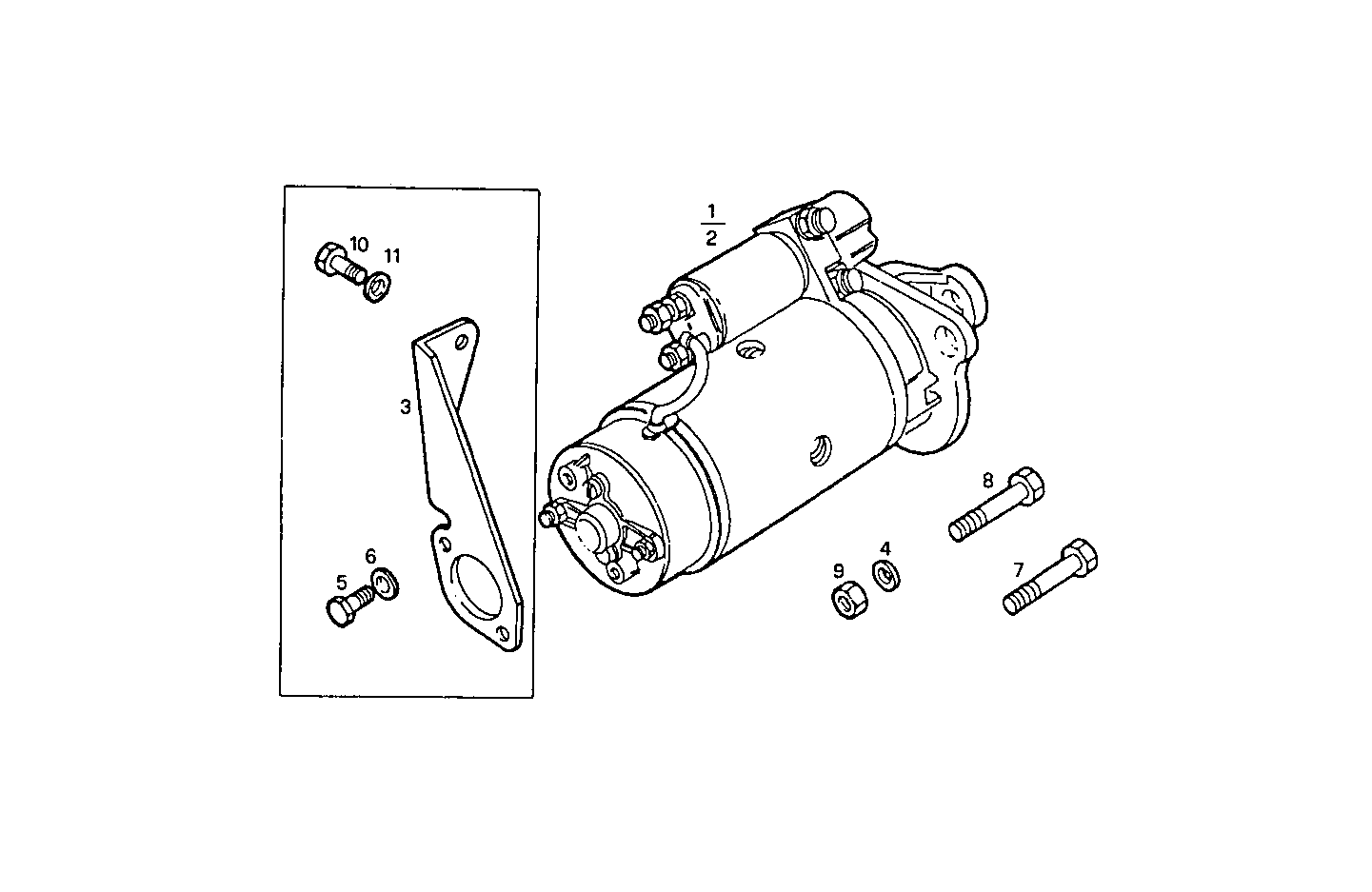

A10010012 STARTER MOTOR - 12V - for transmission
| Item | Part number | Description |
|---|---|---|
| 1 | 4856055 | STARTER MOTOR ASSY 12V BOSCH |
| 2 | 4856056 | STARTER MOTOR ASSY MARELLI - 12V |
| 3 | 93804801 | RETAINER |
| 4 | 17090174 | SPRING WASHER Ø10X20 MM |
| 5 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
| 6 | 17088474 | WASHER Ø6X12 MM |
| 7 | 16607924 | HEXAGON BOLT M10X1,5X40 MM |
| 8 | 16608324 | HEXAGON BOLT M10X1,5X60 MM |
| 9 | 17038121 | HEXAGON NUT M10 |
| 10 | 15540221 | HEXAGON BOLT M12X1,25X20 MM |
| 11 | 17091074 | WASHER Ø12X24X2,8 MM |
