8140SRC20.10

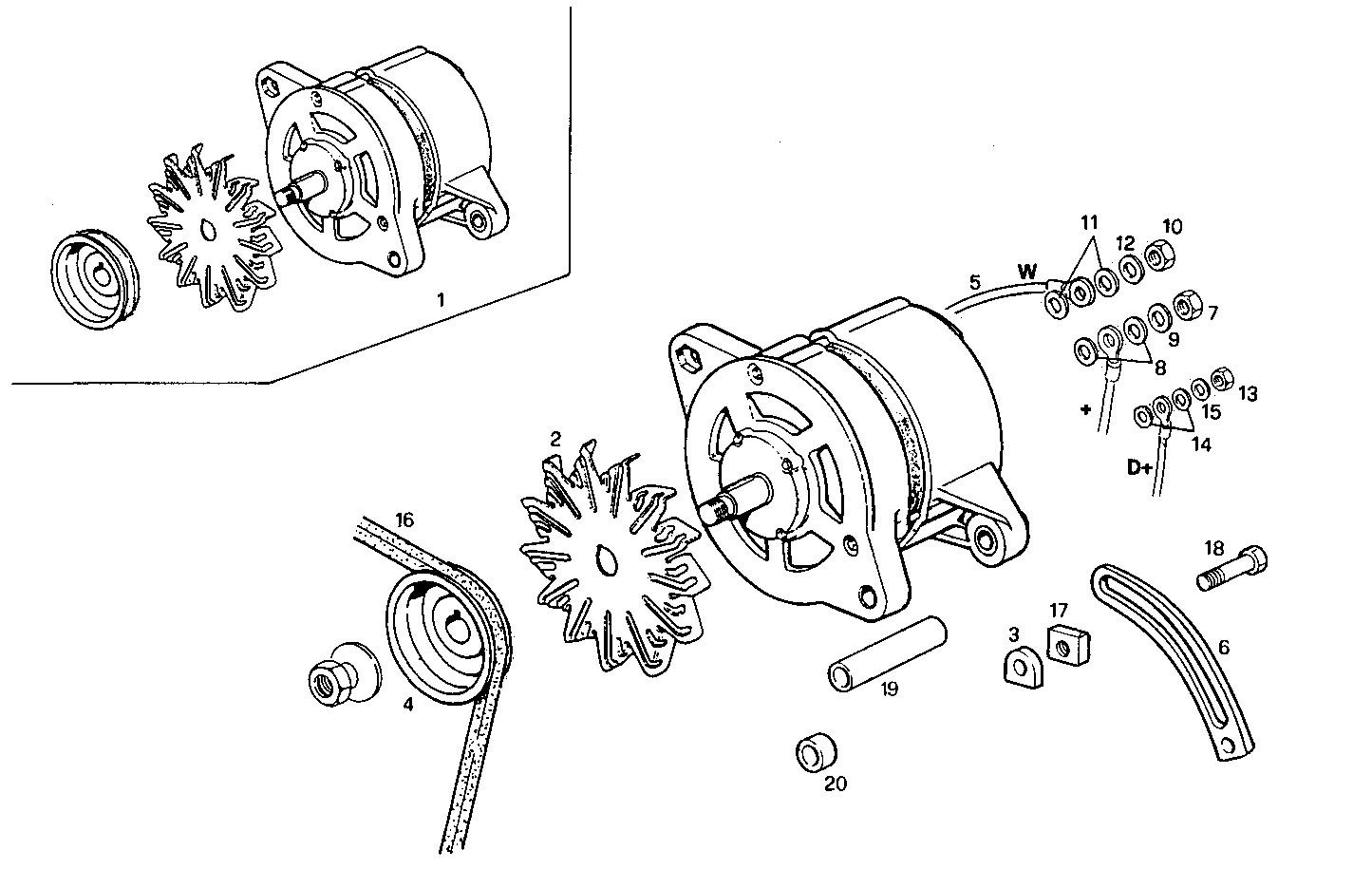

A14010011 SELF-REGULATED ALTERNATOR - 24V 80A (W)
| Item |
Part number |
Description |
|
1 |
8020155 |
ALTERNATOR ASSY |
|
2 |
4757196 |
GENERATOR FAN BOSCH |
|
3 |
98424122 |
SPACING BAR |
|
4 |
98486484 |
GENERATOR PULLEY ASSY |
|
5 |
8019531 |
WIRE/CABLE W |
|
6 |
8024801 |
BELT TENSIONER |
|
7 |
17037931 |
HEXAGON NUT M8X1,25 |
|
8 |
17094914 |
WASHER 8x16 |
|
9 |
17094834 |
WASHER |
|
10 |
17037721 |
NUT M5X0,8 |
|
11 |
17094504 |
WASHER Ø5,3X10 MM |
|
12 |
10615379 |
TOOTHED WASHER Ø5,3 MM |
|
13 |
17037621 |
HEXAGON NUT M4 |
|
14 |
17094204 |
WASHER Ø4X8X0,8 MM |
|
15 |
10615279 |
WASHER Ø4 MM |
|
16 |
99454341 |
V-BELT |
|
17 |
98424121 |
LOCKING PLATE |
|
18 |
14307921 |
SCREW |
|
19 |
8020484 |
REDUCER INSERT |
|
20 |
8101581 |
SPACING BAR |
