8140SRC20.10

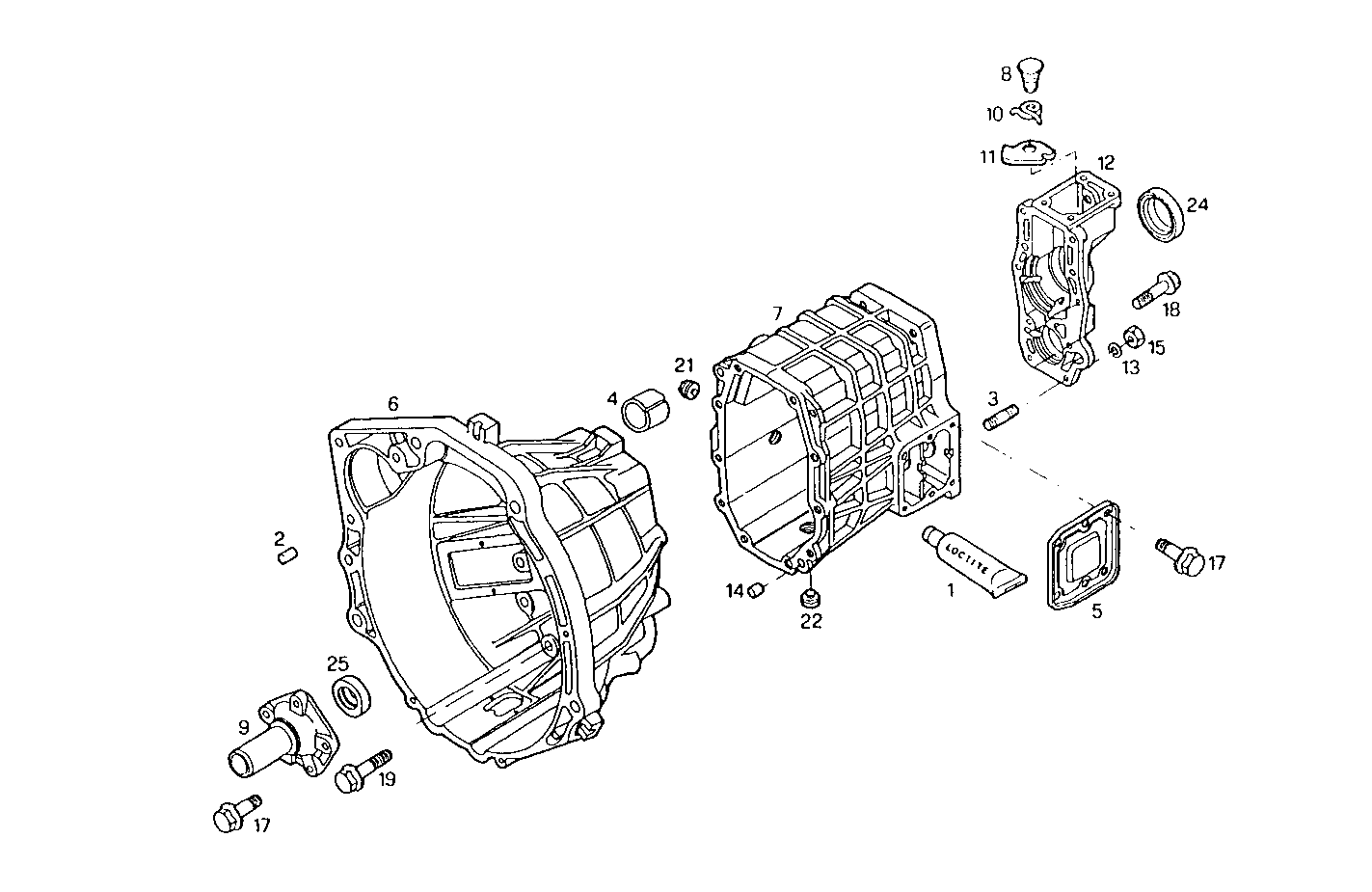

A27510006/02 TRANSMISSION GROUP - Left hand drive 2826.5

Iveco/FPT TRANSMISSION GROUP

Item Part number Description
1 1905685 ADHESIVE/STICKER LOCTITE
2 4647524 DOWEL PIN
3 8856620 STUD
4 8858033 BUSH
5 8858617 SIDE G.BOX COVER
6 8868211 CLUTCH HOUSING
7 8868149 TRANSMISSION CASE
8 8858898 PIN
9 8858638 FRONT G.BOX COVER
10 8859479 SPRING
11 8859480 STOP
12 8859389 REAR G.BOX COVER
13 17798274 SPRING WASHER Ø8,2X14,9 MM
14 10839810 DOWEL PIN Ø12 MM
15 17037931 HEXAGON NUT M8X1,25
17 16586421 SCREW M8X1,25
18 16586524 HEXAGON BOLT M8X30 MM
19 16592824 HEXAGON BOLT M10X70 MM
21 16996511 THREADED PLUG M22X1,5
22 16998511 THREADED PLUG M22X1,5
24 40000160 SHAFT SEAL Ø53X68 MM SP=10 MM
25 40100791 SHAFT SEAL Ø30X47 MM SP=8 MM
