8140SRC20.10

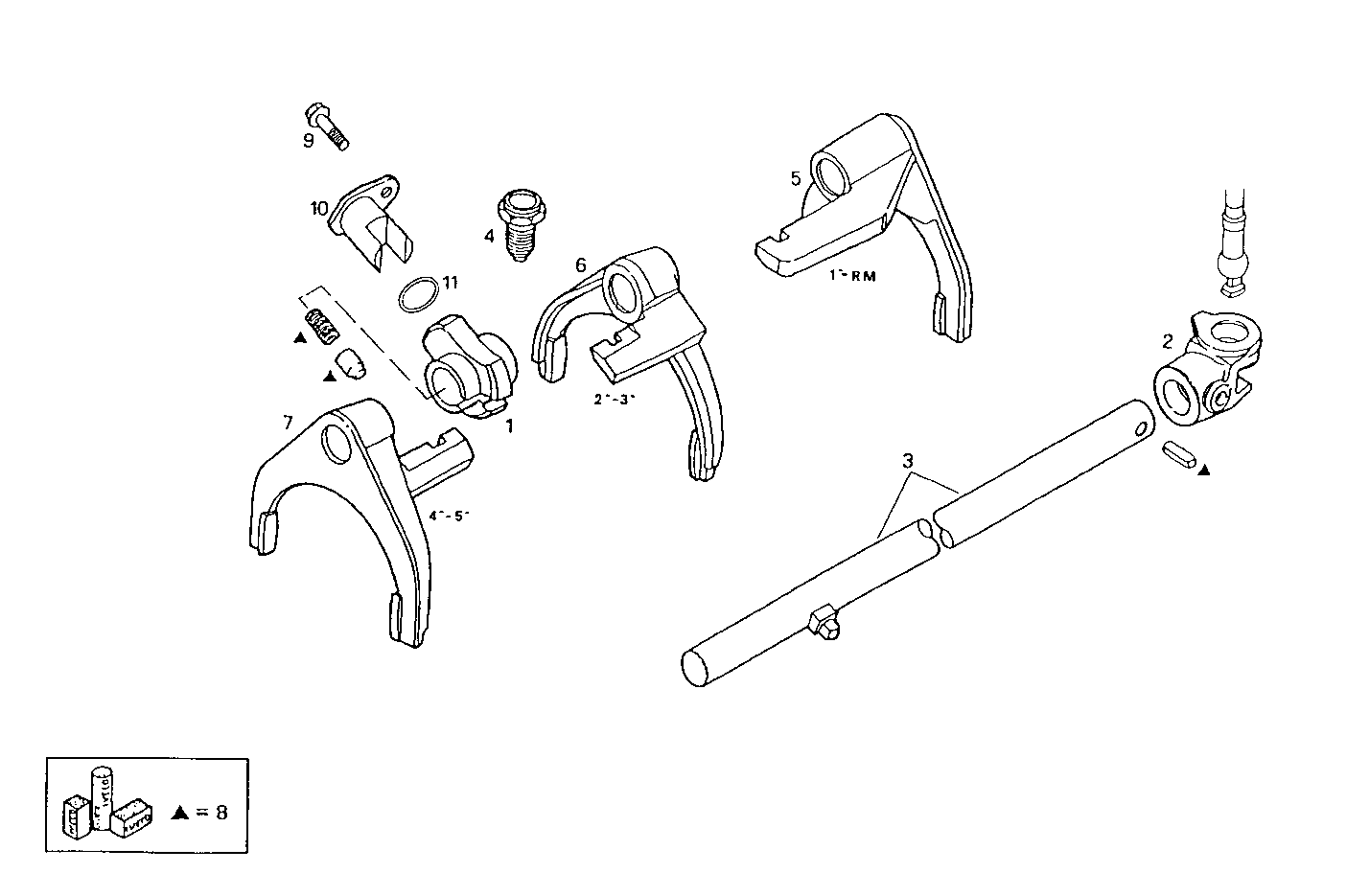

A27510006/03 TRANSMISSION GROUP - Left hand drive 2826.5
Item | Part number | Description |
---|---|---|
1 | 8859884 | GEARSEGM.GEARSHIFT |
2 | 8858915 | GEAR SELECT.SLEEVE |
3 | 8858920 | SHIFT FORK ROD |
4 | 8859876 | SCREW |
5 | 8858921 | SHIFT FORK REVERSE-1ST SPEED |
6 | 8857828 | SHIFT FORK 2ND-3RD SPEED |
7 | 8857827 | SHIFT FORK 4TH-5TH SPEED |
8 | 8859619 | KIT-GEAR BOX |
9 | 8859709 | HEXAGON BOLT M8X18 MM |
10 | 8868092 | PIN |
11 | 17282081 | O-RING Ø20,2 MM SP=2,62 MM |
