8140SRC20.30

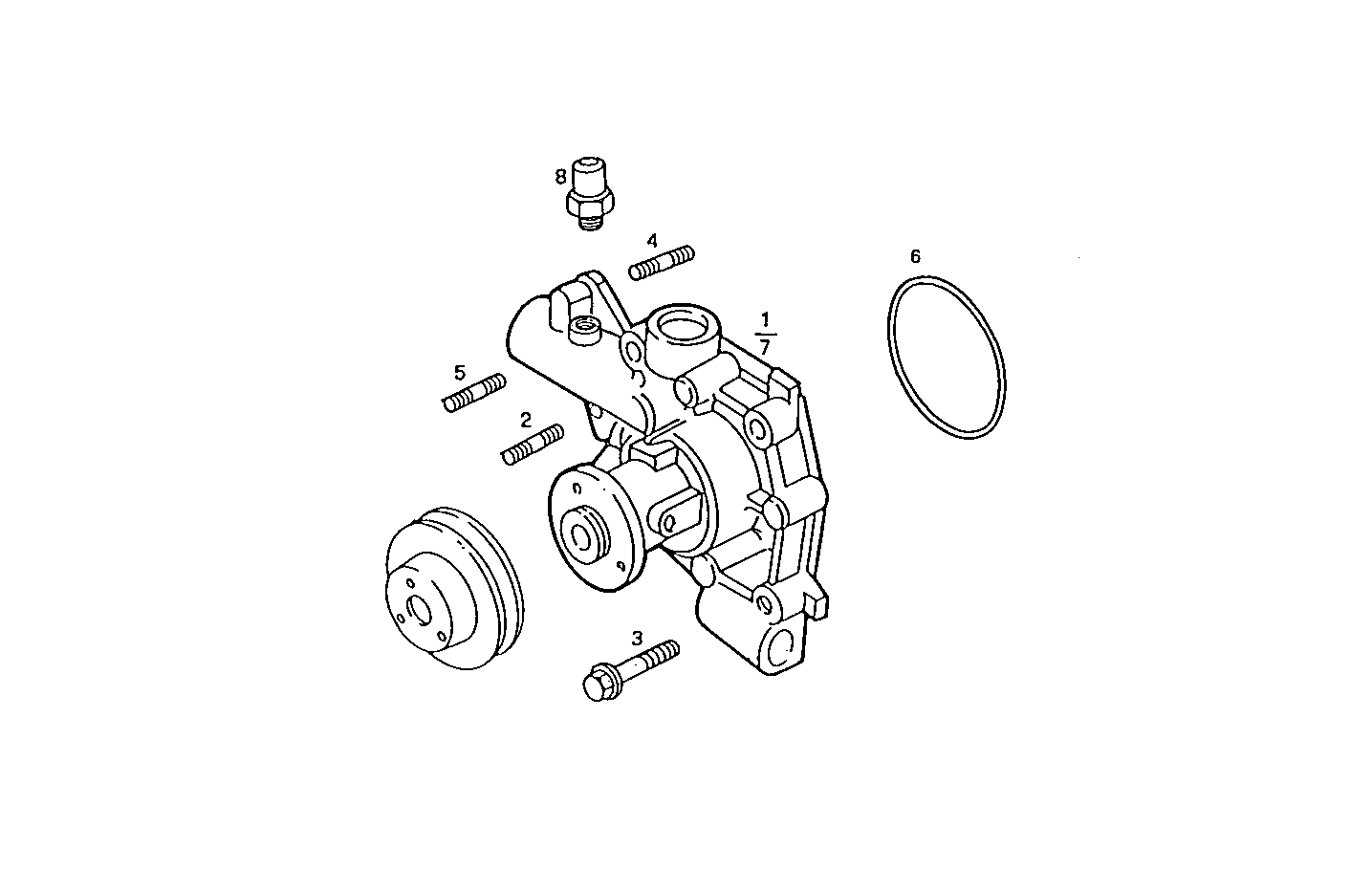

3200.075 WATER PUMP
Item | Part number | Description |
---|---|---|
1 | 99438900 | WATER PUMP STANADYNE |
2 | 16745124 | STUD M6X25 MM |
3 | 98494125 | HEXAGON BOLT M10X1,25X50 MM |
4 | 13543524 | STUD M8X16X25 |
5 | 13546321 | STUD M10X25 MM |
6 | 14472680 | O-RING Ø94,62 MM SP=5,33 MM |
7 | 500300476 | WATER PUMP ASSY |
8 | 4857248 | TRANSMITTER |
