8140SRC20.30

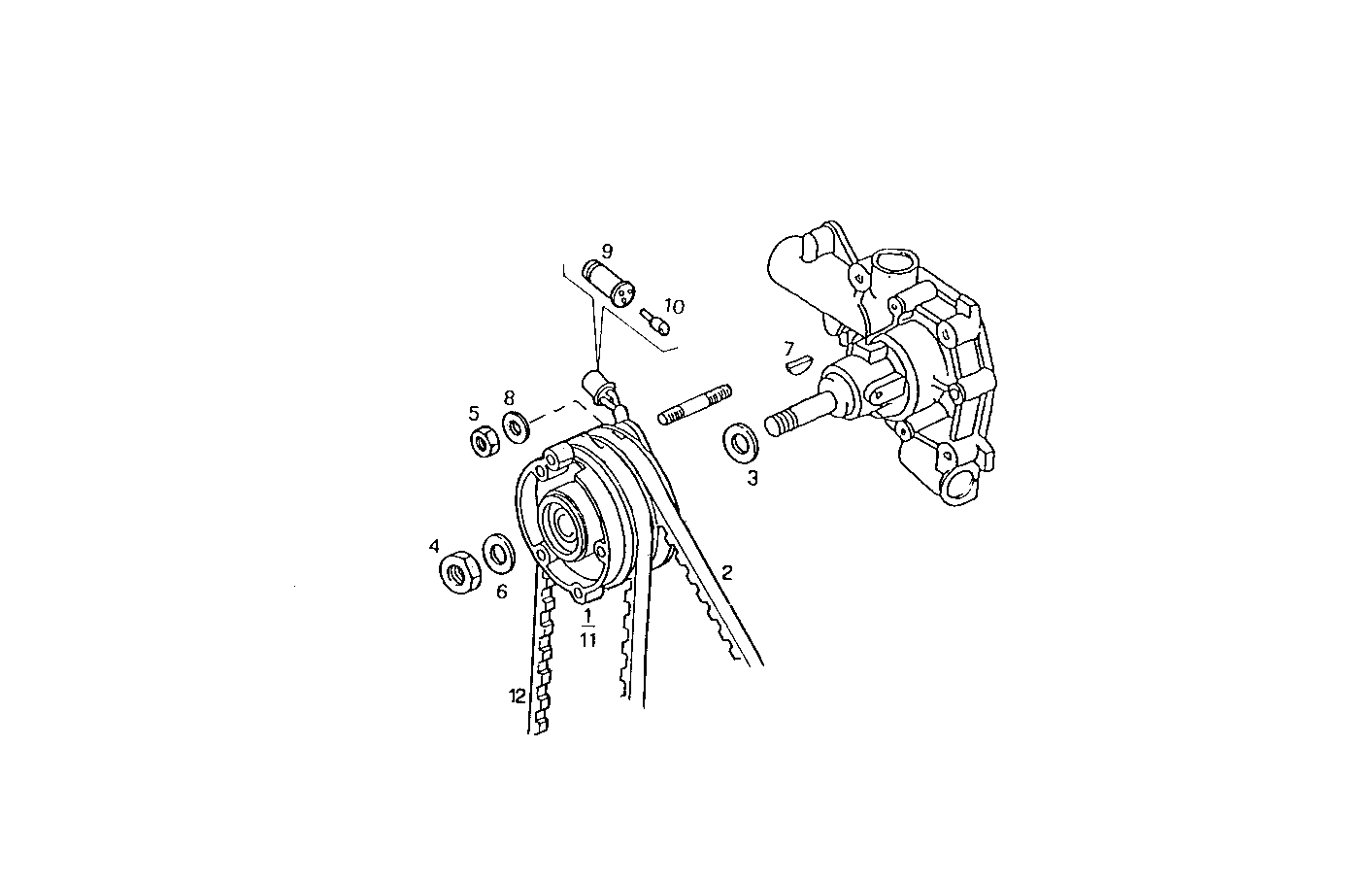

3240.105 PULLEYS AND BELTS
| Item | Part number | Description |
|---|---|---|
| 1 | 99461497 | WATER PUMP PULLEY [up to 2332222] |
| 2 | 99462143 | ALTERNATOR BELT L=1055 MM [up to 2332222] |
| 3 | 98437565 | WASHER Ø25 MM |
| 4 | 98446151 | HEXAGON NUT |
| 5 | 17037821 | HEXAGON NUT M6X1 |
| 6 | 17092071 | SPRING WASHER Ø14X32 MM SP=4 MM |
| 7 | 10205710 | KEY 3X5 MM |
| 8 | 17088474 | WASHER Ø6X12 MM |
| 9 | 4802399 | WIRE CONNECTOR BLACK COL. |
| 10 | 4802697 | TERMINAL SEZ 0,5-1,5 MMQ |
| 11 | 500305943 | WATER PUMP PULLEY Ø126 MM [from 2332223] |
| 12 | 99462224 | WATER PUMP BELT L=790 MM |
