8140SRC20.30

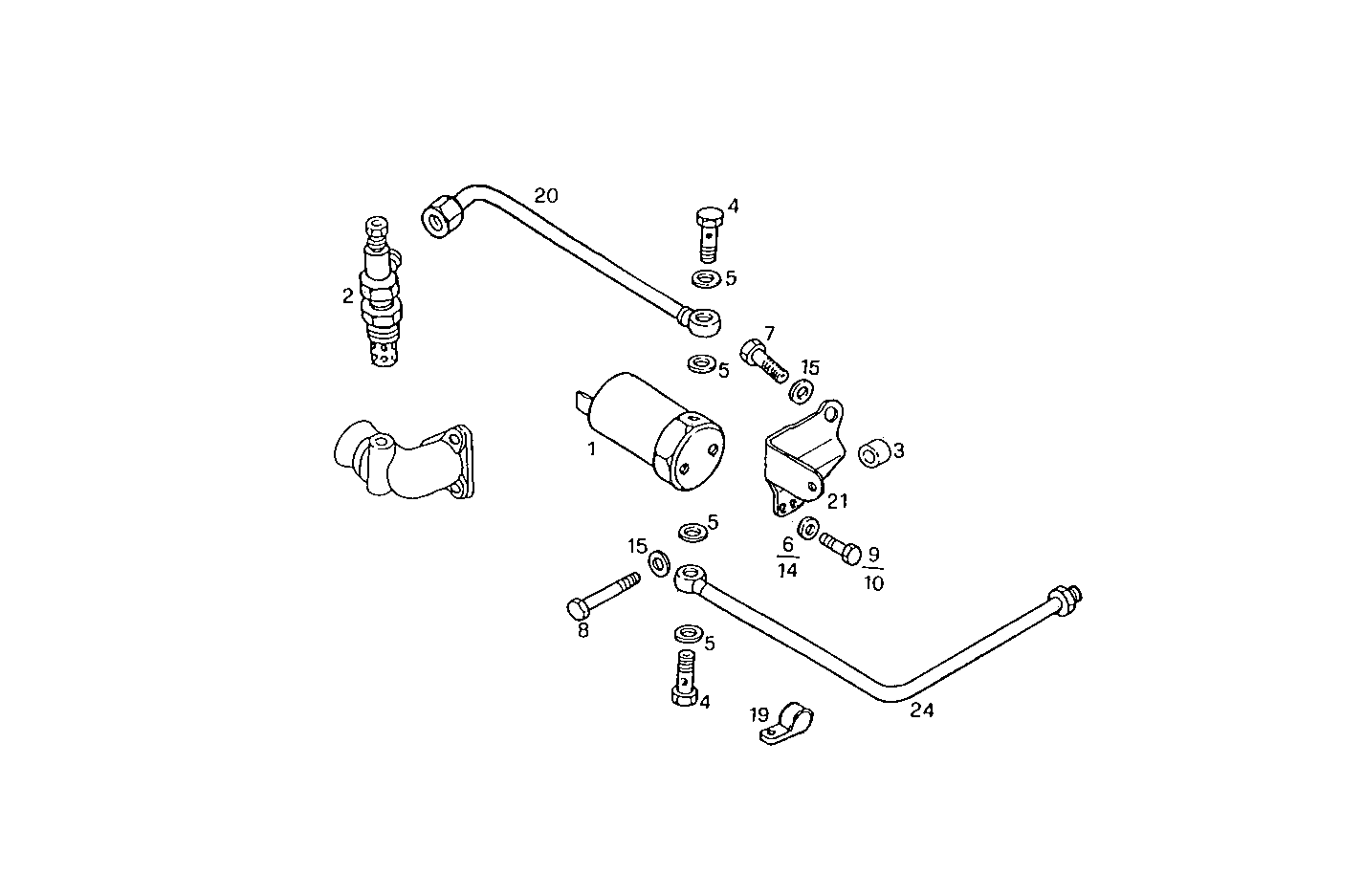

3650.020 THERMO-STARTER

Iveco/FPT THERMO-STARTER

Item Part number Description
1 4832277 ELECTROVALVE
2 4849601 THERMO-STARTER
3 4853864 SPACING BAR
4 7303136 SCREW CONNECTOR
5 10260160 SEAL GASKET Ø10X14 MM SP=1 MM
6 11181574 WASHER Ø5X11 MM SP=0,9 MM
7 16043724 HEXAGON BOLT M8X28 MM (8.8)
8 16044924 SCREW M8X1,25X85 MM
9 16602024 SCREW M5X12 MM (8.8)
10 16603524 SCREW M6X12 MM (8.8)
14 17088474 WASHER Ø6X12 MM
15 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
19 17314590 RETAINER Ø6 MM
20 98437434 FUEL LINE
21 98451780 RETAINER
24 4862446 FUEL LINE
