Catalogue Menu

8140SRC20.30

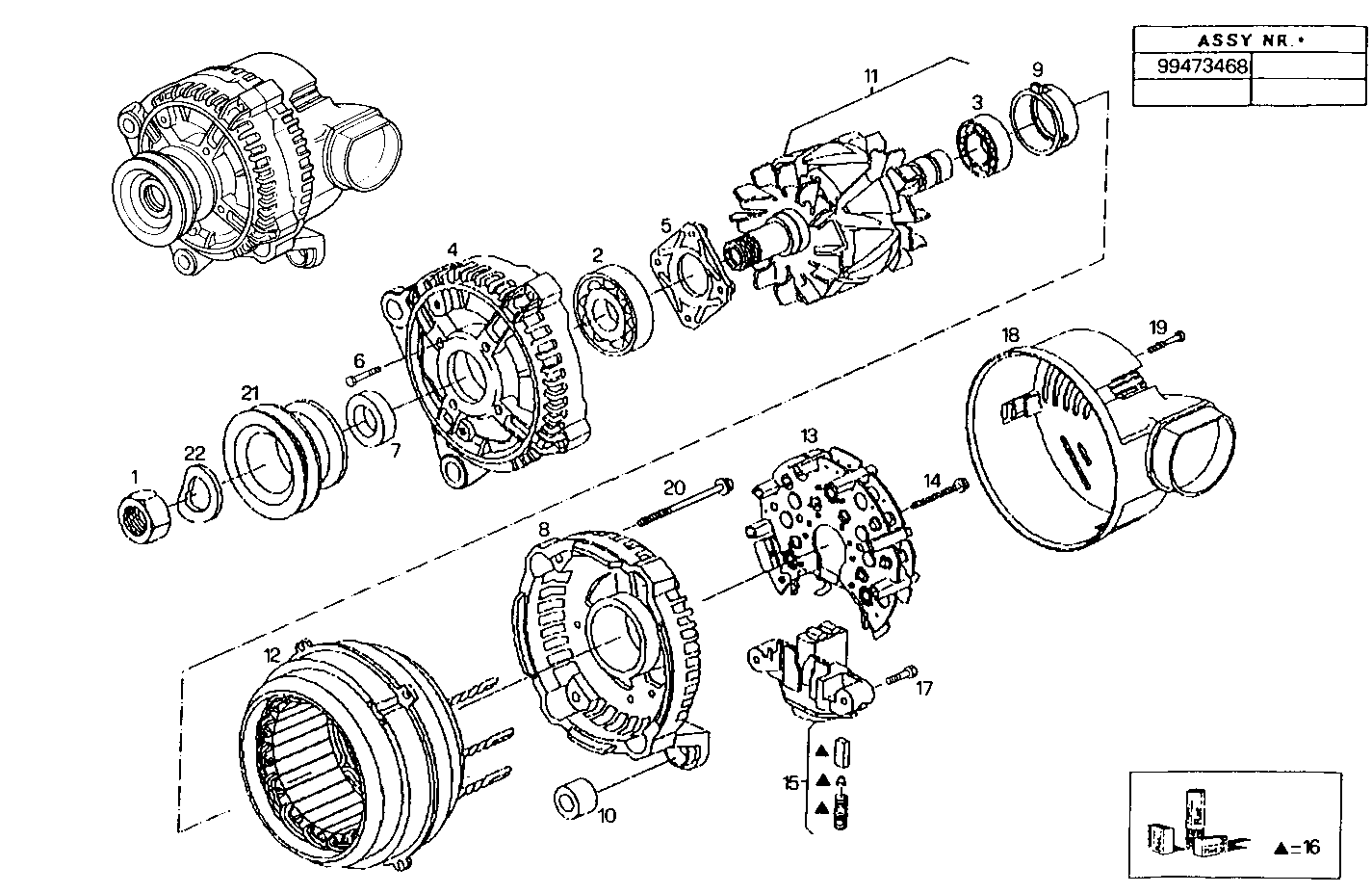

4030.040 GENERATOR (COMPONENTS)

Iveco/FPT GENERATOR (COMPONENTS)

Item Part number Description
1 1113178 NUT M16X1,5
2 1908901 ENGINE BEARINGS
3 1908902 ENGINE BEARINGS
4 42531165 GENERATOR SUPPORT M16X1,5
5 42531166 PLATE
6 42531167 C'SUNK SCREW
7 42531168 SPACING BAR
8 42531169 GENERATOR SUPPORT
9 42531170 RING
10 42531171 BUSH
11 42531172 GENERATOR ROTOR ASSY
12 42531173 GENERATOR STATOR
13 42531174 RECTIFIER BRIDGE
14 42531175 SCREW
15 42531176 VOLTAGE REGULATOR ASSY
16 42531177 CARBON BRUSHES
17 42531178 SCREW
18 42531179 GENERATOR SUPPORT
19 42531180 SCREW
20 42531181 SCREW
21 42531182 GENERATOR PULLEY
22 42531183 SPRING WASHER
