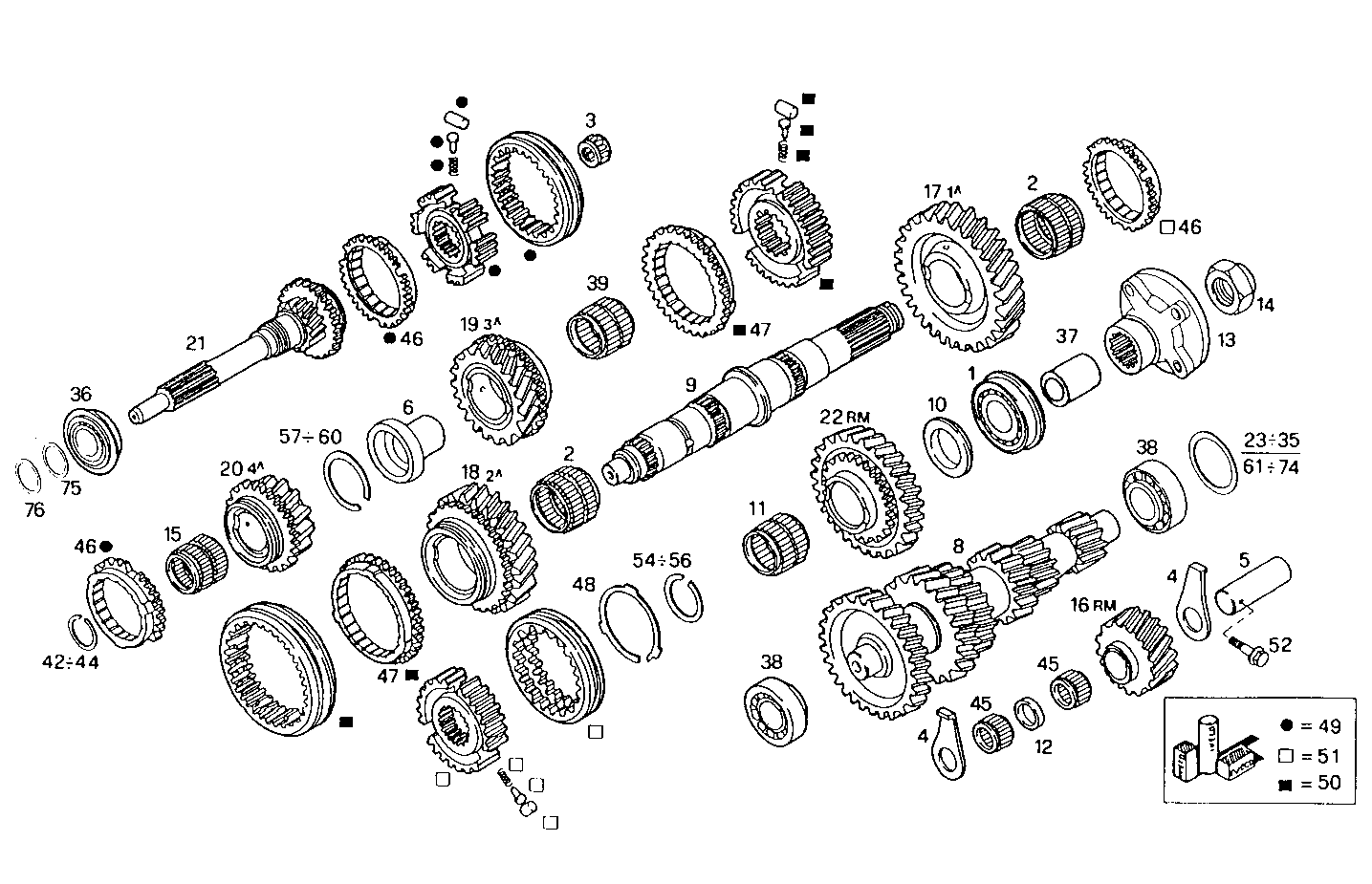

| Item |
Part number |
Description |
|
1 |
1905340 |
GEARBOX BEARINGS Ø40X80 MM SP=18 MM |
|
2 |
8856975 |
ROLLER CAGE Ø49X55 MM SP=32 MM |
|
3 |
8859074 |
ROLLER CAGE Ø24X36 MM SP=23 MM |
|
4 |
8857305 |
STOP WASHER |
|
5 |
8856952 |
RETURN SHAFT REVERSE |
|
6 |
8858680 |
BUSH |
|
8 |
8858876 |
COUNTERSHAFT |
|
9 |
8859641 |
MAIN SHAFT |
|
10 |
8856970 |
STOP WASHER |
|
11 |
8856974 |
ROLLER CAGE Ø44X50 MM SP=30,5 MM |
|
12 |
8853003 |
WASHER |
|
13 |
8859844 |
SHIFT SLEEVE |
|
14 |
8857862 |
GROOVED NUT |
|
15 |
8858644 |
GEARBOX BEARINGS Ø41X48 MM SP=31 MM |
|
16 |
8856931 |
REVERSE GEAR REVERSE |
|
17 |
8858891 |
SPLITTER GEAR 1ST SPEED |
|
18 |
8858890 |
SPLITTER GEAR 2ND SPEED |
|
19 |
8858880 |
SPLITTER GEAR 3RD SPEED |
|
20 |
8858889 |
SPLITTER GEAR 4TH SPEED |
|
21 |
8867926 |
INPUT SHAFT |
|
22 |
8858847 |
REVERSE GEAR REVERSE |
|
23 |
8857028 |
ADJUSTING RING SP=1,4 MM |
|
24 |
8857029 |
ADJUSTING RING SP=1,5 MM |
|
25 |
8857030 |
ADJUSTING RING SP=1,6 MM |
|
26 |
8857031 |
ADJUSTING RING SP=1,7 MM |
|
27 |
8857032 |
ADJUSTING RING SP=1,8 MM |
|
28 |
8857033 |
ADJUSTING RING SP=1,9 MM |
|
29 |
8857034 |
ADJUSTING RING SP=2 MM |
|
30 |
8857035 |
ADJUSTING RING SP=2,1 MM |
|
31 |
8857036 |
ADJUSTING RING SP=2,2 MM |
|
32 |
8857037 |
ADJUSTING RING SP=2,3 MM |
|
33 |
8857795 |
ADJUSTING RING SP=2,25 MM |
|
34 |
8857796 |
ADJUSTING RING SP=2,15 MM |
|
35 |
8857797 |
ADJUSTING RING SP=2,05 MM |
|
36 |
1905341 |
GEARBOX BEARINGS Ø35X80 MM SP=21 MM |
|
37 |
8583606 |
SPACING BAR |
|
38 |
1905291 |
GEARBOX BEARINGS Ø25X62 MM SP=18,25 MM |
|
39 |
8859288 |
GEARBOX BEARINGS Ø25X62 MM SP=18,25 MM |
|
42 |
8857018 |
CIRCLIP SP=2 MM |
|
43 |
8857019 |
CIRCLIP SP=2,05 MM |
|
44 |
8857020 |
CIRCLIP SP=2,1 MM |
|
45 |
1905292 |
ROLLER CAGE Ø24X30 MM SP=17 MM |
|
46 |
8858923 |
SYNCHRONIZER 2ND-3RD SPEED |
|
47 |
8858711 |
SYNCHRONIZER |
|
48 |
8859395 |
SPRING LOCKWASHER |
|
49 |
8859605 |
KIT-SYNCHRONIZER 4TH-5TH SPEED |
|
50 |
8859606 |
KIT-SYNCHRONIZER 2ND-3RD SPEED |
|
51 |
8859607 |
KIT-SYNCHRONIZER RV-1ST SPEED |
|
52 |
16585824 |
HEXAGON BOLT M6X20 MM |
|
54 |
8857015 |
CIRCLIP SP=2 MM |
|
55 |
8857016 |
CIRCLIP SP=2,05 MM |
|
56 |
8857017 |
CIRCLIP SP=2,1 MM |
|
57 |
8859365 |
SPRING LOCKWASHER SP=2 MM |
|
58 |
8859366 |
SPRING LOCKWASHER SP=2,05 MM |
|
59 |
8859367 |
SPRING LOCKWASHER SP=2,1 MM |
|
60 |
8859368 |
SPRING LOCKWASHER SP=2,15 MM |
|
61 |
8857798 |
ADJUSTING RING SP=1,95 MM |
|
62 |
8857799 |
ADJUSTING RING SP=1,85 MM |
|
63 |
8857800 |
ADJUSTING RING SP=1,75 MM |
|
64 |
8857801 |
ADJUSTING RING SP=1,65 MM |
|
65 |
8857802 |
ADJUSTING RING SP=1,55 MM |
|
66 |
8857803 |
ADJUSTING RING SP=1,45 MM |
|
67 |
8859653 |
ADJUSTING RING SP=1 MM |
|
68 |
8859654 |
ADJUSTING RING SP=1,05 MM |
|
69 |
8859655 |
ADJUSTING RING SP=1,1 MM |
|
70 |
8859656 |
ADJUSTING RING SP=1,15 MM |
|
71 |
8859657 |
ADJUSTING RING SP=1,2 MM |
|
72 |
8859658 |
ADJUSTING RING SP=1,25 MM |
|
73 |
8859659 |
ADJUSTING RING SP=1,3 MM |
|
74 |
8859660 |
ADJUSTING RING SP=1,35 MM |
|
75 |
8868295 |
SET OF SHIMS |
|
76 |
8868304 |
STOP WASHER |
