8140SRC20.30

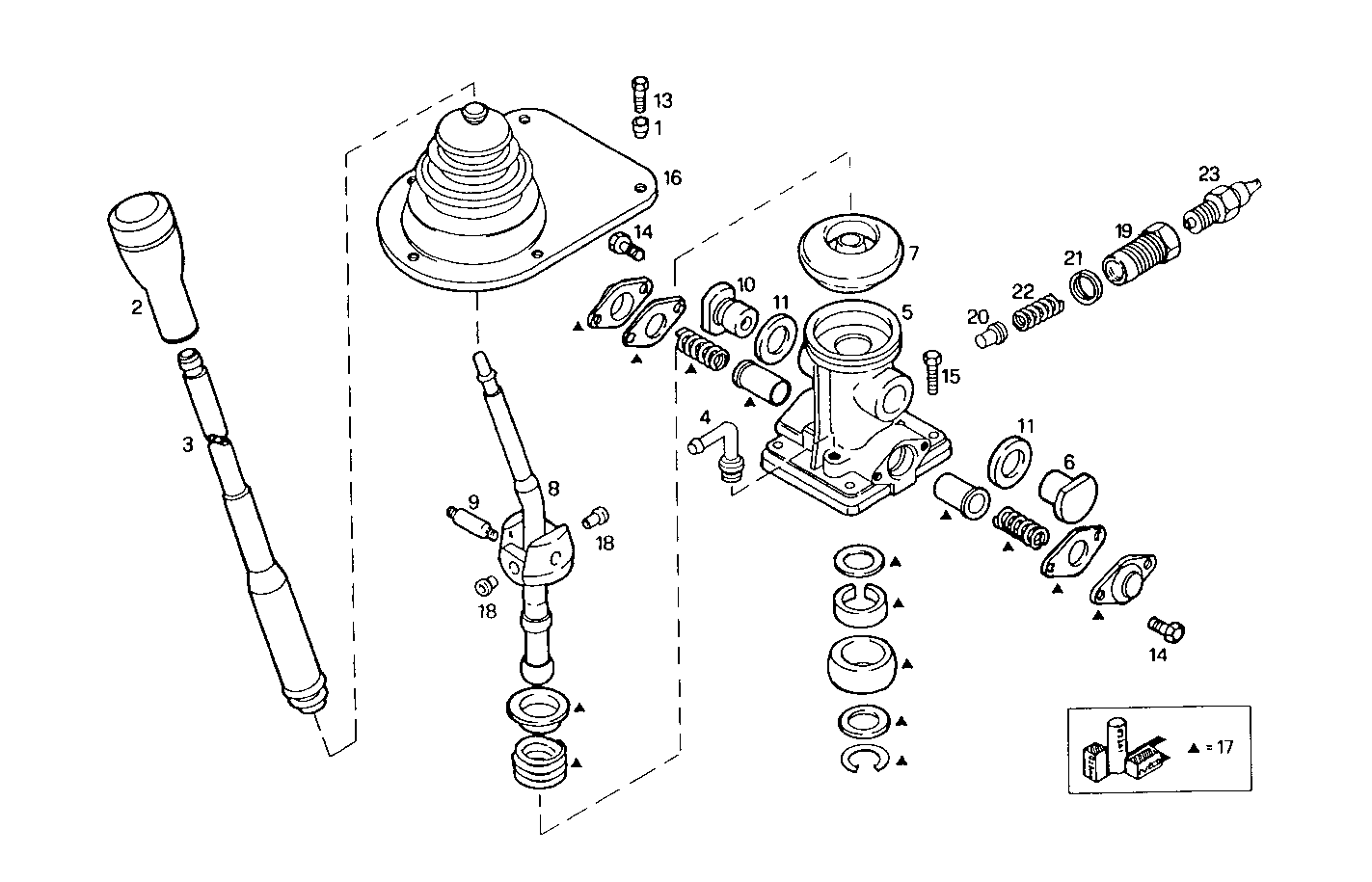

A27510007/05 TRANSMISSION GROUP - Left hand drive 2826.5
| Item | Part number | Description |
|---|---|---|
| 1 | 4309331 | BUSH |
| 2 | 8576824 | LEVER KNOB |
| 3 | 8868255 | ROD |
| 4 | 8858005 | BREATHER |
| 5 | 8858515 | SUPPORT |
| 6 | 8858881 | UNION NUT M10X1,25 |
| 7 | 8858972 | PROTECTIVE HOOD |
| 8 | 8859927 | GEARSHIFT LEVER |
| 9 | 8859355 | THREADED PIN |
| 10 | 8859356 | UNION NUT M10X1,25X18 MM |
| 11 | 10279360 | SEAL GASKET Ø22,2 MM |
| 13 | 16797707 | CUTTING SCREW |
| 14 | 16586324 | HEXAGON BOLT M8X1,25X20 MM |
| 15 | 16586424 | HEXAGON BOLT M8X25 MM |
| 16 | 93911172 | PROTECTIVE HOOD |
| 17 | 1907909 | KIT-G.BOX TURRET |
| 18 | 8559924 | BUSH |
| 19 | 8583607 | THREADED UNION |
| 20 | 8583608 | THRUST ROD |
| 21 | 10257460 | SEAL GASKET Ø20X26 MM SP=1,5 MM [up to ...] |
| 22 | 15254672 | SPRING |
| 23 | 4846676 | REAR LIGHT SWITCH |
