8140SRC20.30

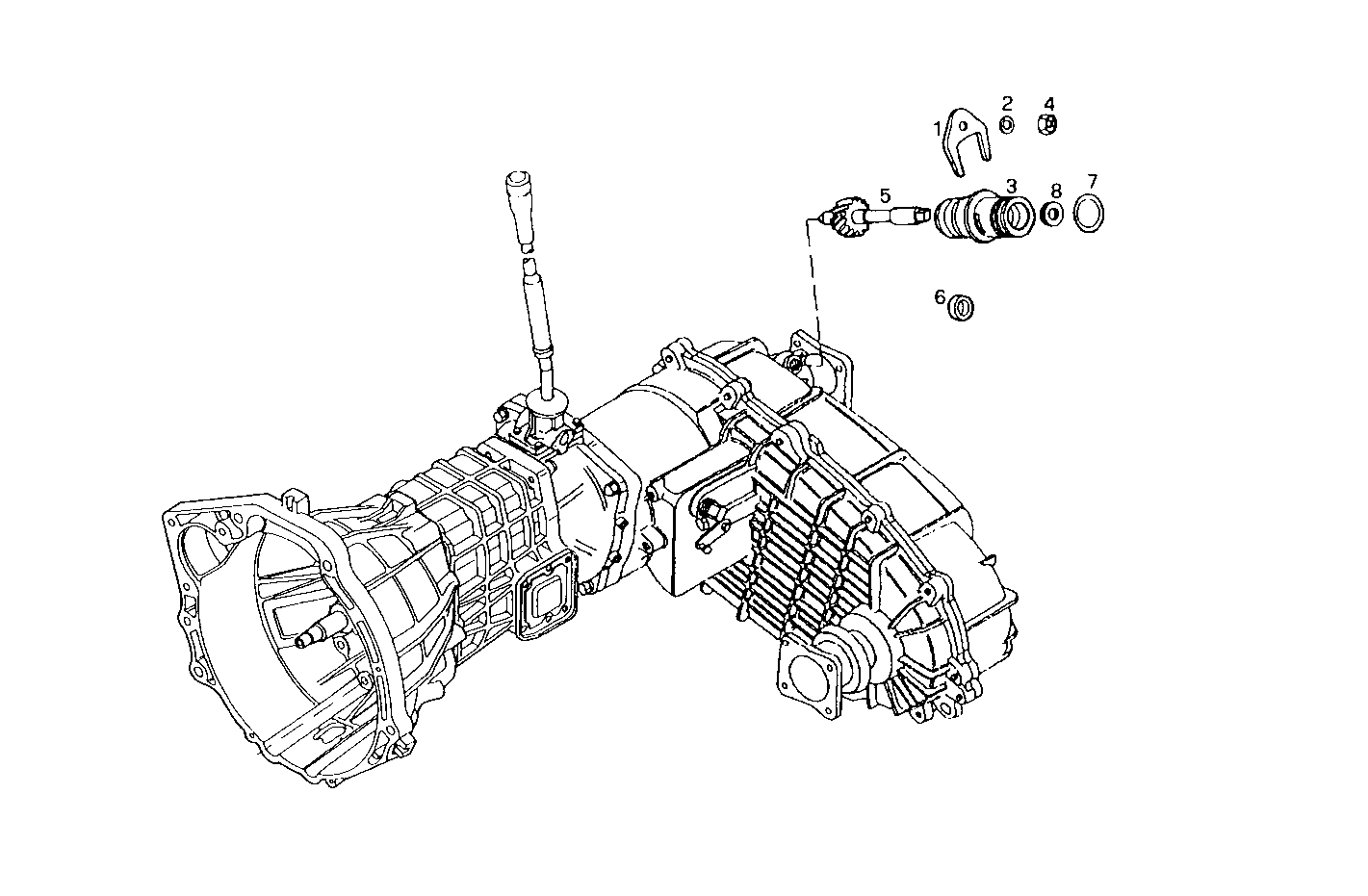

A27510007/10 TRANSMISSION GROUP - Left hand drive 2826.5
| Item | Part number | Description |
|---|---|---|
| 1 | 8577861 | STOP PLATE |
| 2 | 17088671 | SPRING WASHER Ø6X15 MM SP=1 MM |
| 3 | 8850482 | SPEEDDEVICE SUPP. |
| 4 | 17037821 | HEXAGON NUT M6X1 |
| 5 | 8858429 | TACH.PINION SHAFT |
| 6 | 8850485 | RING |
| 7 | 14457380 | O-RING SP=2,62 MM |
| 8 | 40000671 | SHAFT SEAL |
