8140SRC21.00

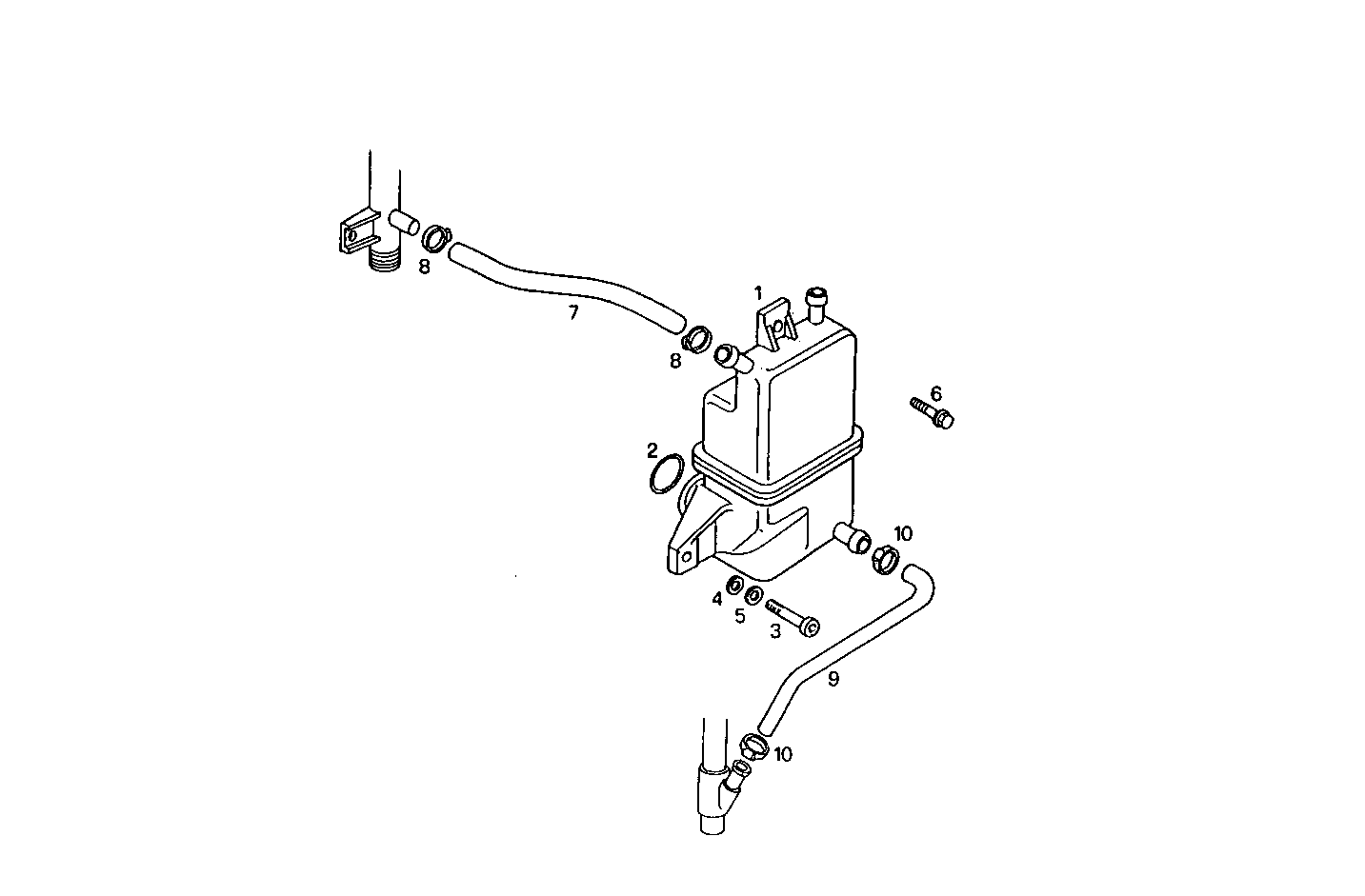

0450.162 ENGINE BREATHERS
Item | Part number | Description |
---|---|---|
1 | 98496418 | BREATHER |
2 | 17289681 | O-RING Ø44 MM SP=3,53 MM |
3 | 16707134 | SOCKET-HEAD SCREW M8X20 MM |
4 | 12646721 | WASHER Ø8X20 MM |
5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
6 | 16585624 | HEXAGON BOLT M6X12 MM |
7 | 500319931 | RUBBER SLEEVE L=550 MM |
8 | 18088292 | CLIP Ø12/20 MM |
9 | 500342133 | RUBBER SLEEVE |
10 | 17764592 | CLIP Ø20/32 MM |
