8140SRC21.00

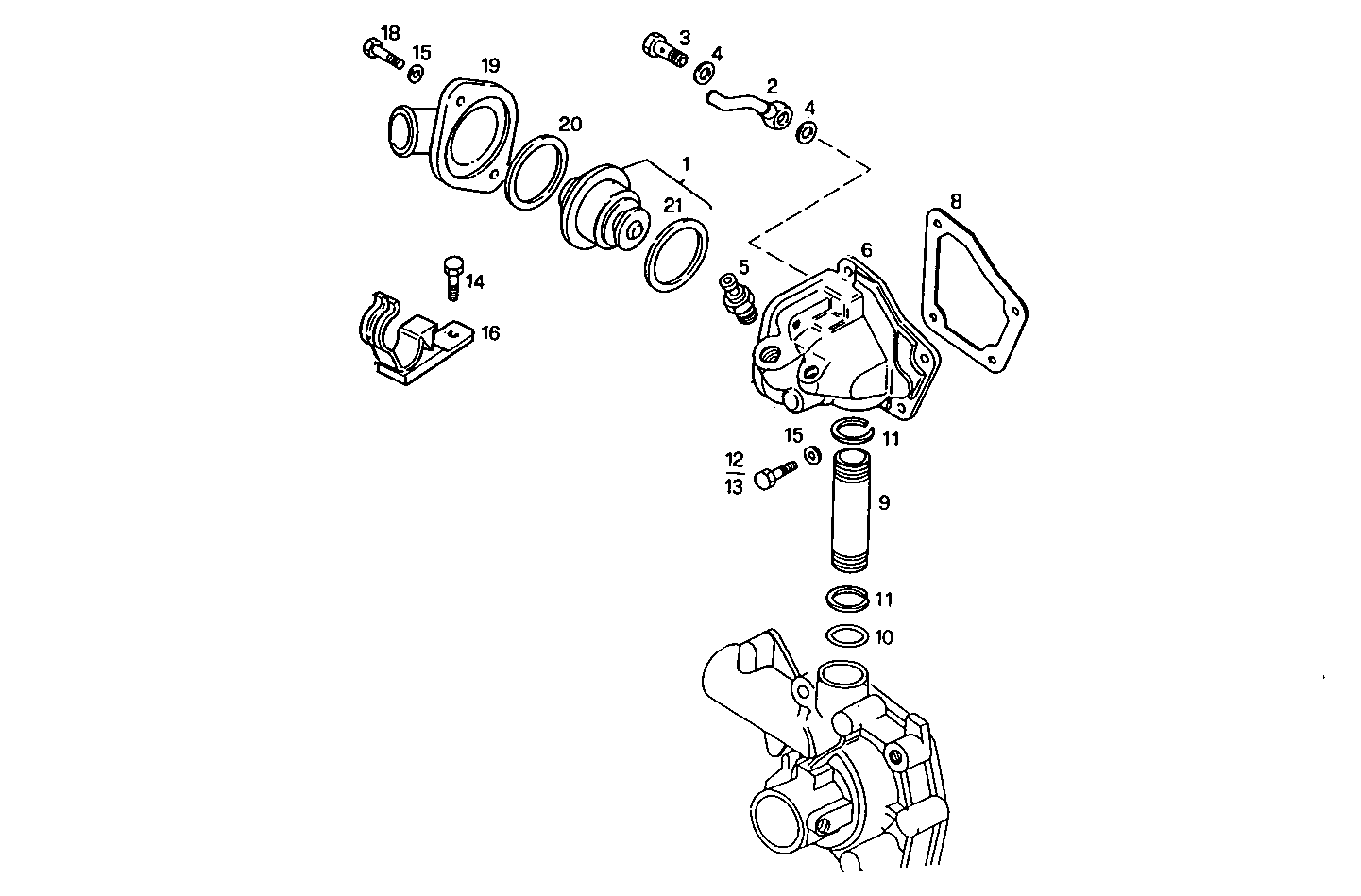

3220.123 THERMOSTAT

Iveco/FPT THERMOSTAT

Item Part number Description
1 500329622 THERMOSTAT ASSY
2 7302944 ELBOW COUPLING
3 4864080 SCREW CONNECTOR M10X1,25
4 10260160 SEAL GASKET Ø10X14 MM SP=1 MM
5 98459006 TEMP. TRANSMITTER
6 500345688 THERMOSTAT BODY
8 98421297 FLAT ENGINE GASKET SP=0,8 MM
9 99443808 CONNECTION PIPE
10 17288481 O-RING Ø21,82X3,53 MM
11 16866173 CIRCLIP Ø19,5 MM
12 16605824 HEXAGON BOLT M8X35 MM
13 16604924 SCREW
14 16605734 HEXAGON BOLT M8X30 MM
15 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
16 99453771 RETAINER
18 16605624 HEXAGON BOLT M8X25 MM (8.8)
19 98434023 THERM.BODY COVER
20 14455281 O-RING SP=1,78 MM
21 4823212 RUBBER GASKET
