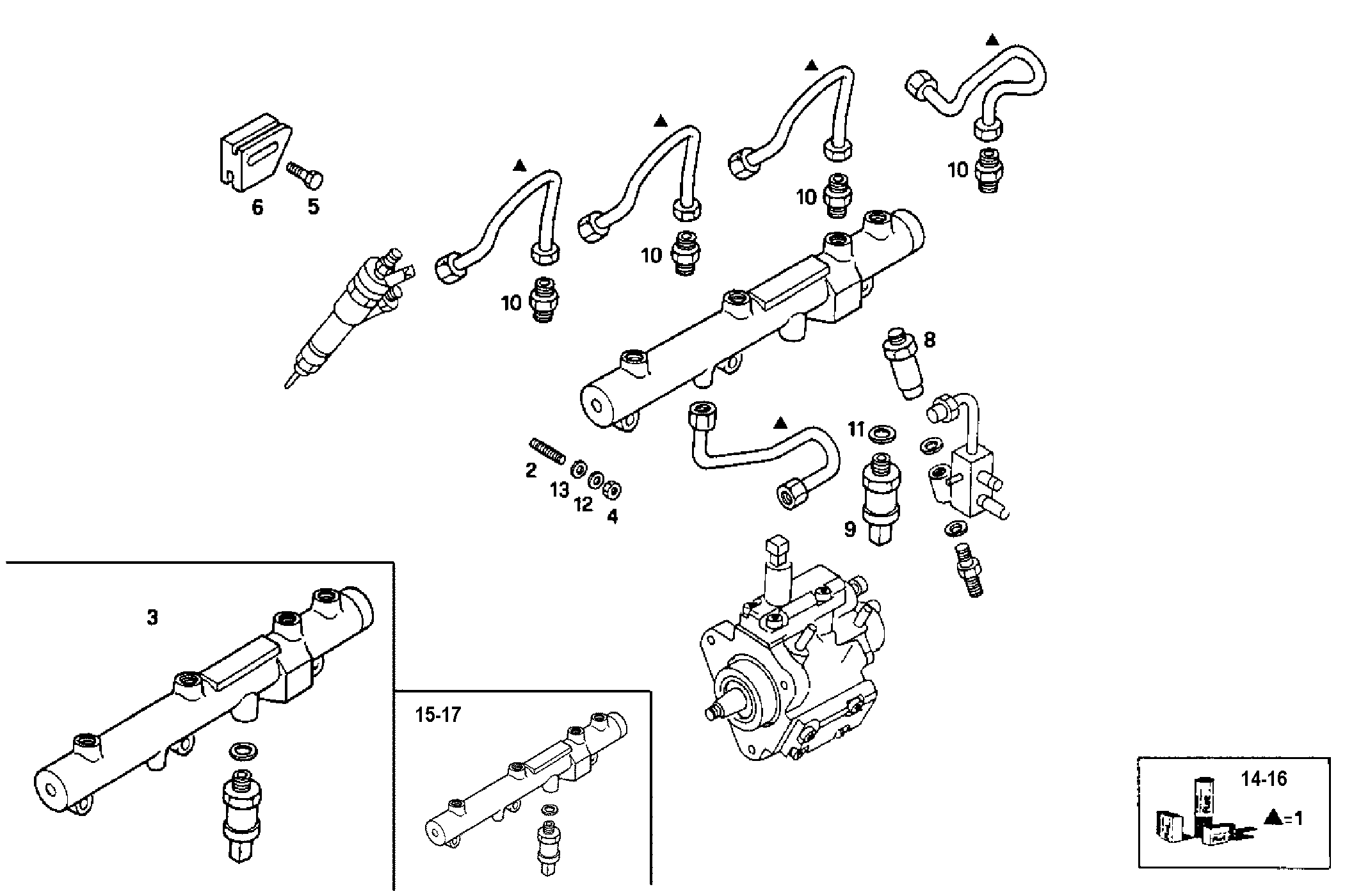

| Item |
Part number |
Description |
|
1 |
500340681 |
INJECTION LINE SET [UP TO # 3249778] |
|
2 |
16746824 |
STUD M8X30 MM (8.8) |
|
3 |
500320476 |
HYDRAULIC CYLINDER ASSY [UP TO # 3249778] |
|
4 |
17044731 |
HEXAGON NUT M8 |
|
5 |
16596924 |
HEXAGON BOLT M6X10 MM |
|
6 |
500315270 |
CHOCK |
|
8 |
500372233 |
VALVE |
|
9 |
500372234 |
SENSOR |
|
10 |
500372235 |
REDUCTION VALVE |
|
11 |
500372236 |
WASHER |
|
12 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
13 |
17094914 |
WASHER 8x16 |
|
14 |
504070031 |
INJECTION LINE SET ALTERNATIVE USE [UP TO # 3887457] |
|
15 |
500394220 |
HYDRAULIC CYLINDER ASSY [UP TO # 3887457] |
|
16 |
504088076 |
INJECTION LINE SET |
|
17 |
504088073 |
HYDRAULIC CYLINDER |
