8140SRC30.20A001

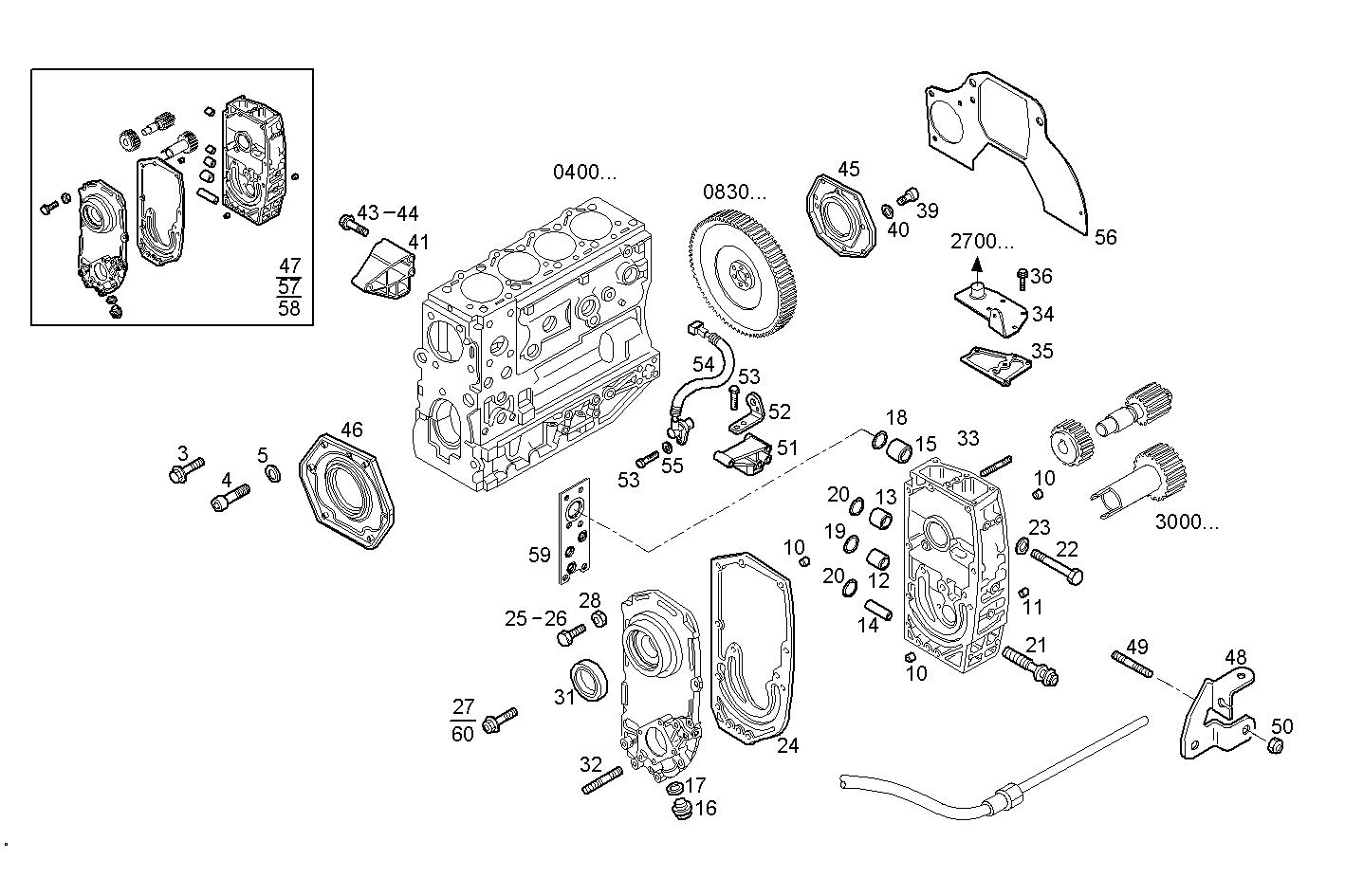

0430.239 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
3 16585925 HEXAGON BOLT M6X25 MM
4 16689134 SOCKET-HEAD SCREW M6X16 MM
5 17088474 WASHER Ø6X12 MM
10 98465476 DOWEL PIN Ø8 MM
11 500325603 DOWEL PIN Ø11 MM
12 4279406 BUSH Ø22,3X12 MM
13 4279407 BUSH Ø18X18 MM
14 4710945 BUSH Ø18X30 MM
15 98461177 BUSH Ø40X46,2 MM [from 1608990]
16 4827588 PLUG M20
17 10263360 SEAL GASKET 20x26x1
18 98461178 O-RING Ø46,04 MM SP=3,53 MM
19 17282181 O-RING Ø21,8 MM SP=2,6 MM
20 500306196 O-RING Ø17,46 MM SP=2,62 MM
21 99458260 SCREW M12X1,5X150 MM
22 98468138 HEXAGON BOLT M8X1,25X150 MM
23 17094924 WASHER Ø8X16 MM
24 98421263 FLAT ENGINE GASKET SP=0,5 MM
24 500369188 FLAT ENGINE GASKET
25 16605624 HEXAGON BOLT M8X25 MM (8.8)
26 16606034 HEXAGON BOLT M8X45 MM
27 500324560 SCREW M8X45 MM
28 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
31 98454045 SHAFT SEAL
32 13449524 STUD M10X1,25X15X25
33 16746824 STUD M8X30 MM (8.8)
34 500324894 HOUSING COVER
35 500349423 FLAT ENGINE GASKET SP=0,4 MM
36 16673635 HEXAGON BOLT M8X1.25X20
39 16690424 CYLIND-HEAD SCREW M8X1,25X16 MM
40 17089574 WASHER Ø8X16 MM
41 500346555 BRACKET LEFT
43 16289134 HEXAGON BOLT M10X1,25X60
44 16289624 HEXAGON BOLT M10X1,25X100 MM
45 504086314 SHAFT SEAL WITH SEAL
46 504086312 SHAFT SEAL WITH SEAL
47 500365645 BEARING HOUSING ASSY
48 500332328 RETAINER
49 16729424 STUD M8X1,25X25
50 17044735 NUT M8
51 500344426 BRACKET RIGHT
52 500344409 FASTENING BRACKET
53 18137825 HEXAGON BOLT M6X16
54 500343018 ELECTRON.TRANSMITT
55 17094724 WASHER Ø6X12 MM
56 500371071 PROTECTION
57 500377026 BEARING HOUSING [UP TO # 3364602]
58 504027985 BEARING HOUSING ASSY
59 500368070 FLAT ENGINE GASKET
60 504008971 SCREW
